Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-3008-PL |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | 30Khz Ultrasonic Flat Indium Coating | Frquency: | 30Khz（28/20Khz For Optional) |
|---|---|---|---|
| Max Power: | 800W | Temperature Range: | 150-400℃ |
| Working Amplitude: | 3-20μm | Input Voltage: | 220V± 10%，50/60Hz，4A |
| Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
| High Light: | Ultrasonic Flat Target Welding Machine,30Khz Ultrasonic Flat Target Welding Machine |
||
30Khz Ultrasonic Flat Target Welding Machine Indium Coating Technology
Description:
Ultrasonic indium coating machine is a device that utilizes ultrasonic vibration technology to achieve the coating process of indium materials. It uniformly coats indium material onto the target surface through the action of ultrasonic vibration.
The ultrasonic generator converts the electric current into high frequency electrical energy. The converted high-frequency electrical energy is converted again into mechanical motion of the same frequency by means of a transducer, and the mechanical motion is then transmitted to the soldering zone by a set of variable-amplitude rod devices that can change the amplitude. The high-frequency vibration allows for the discharge of micro-bubbles from the soldering zone, allowing the target material to enter the micro-cavity occupied by these micro-bubbles, enabling soldering without flux.
Parameters:
| Model | FSY-3008-PL |
| Name | 30Khz Ultrasonic Flat Indium Coating |
| Frequency | 30Khz(28/20Khz for optional) |
| Power | 800w |
| Temperature Range | 150-400℃ |
| Working Amplitude | 3-20μm |
| Input Voltage | 220V±10%,50/60Hz, 4A |
| Working Mode | Intermittent/Continuous Switchable |
| Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
Advantages:
1. Ultrasonic technology does not cause progressive corrosion due to flux left in the soldering area because no flux is used during the soldering process.
2. Ultrasonic soldering technology does not use flux and therefore does not require gas emission facilities and wastewater treatment facilities to treat the harmful gases generated by flux.
3. The coating is firm and will not peel off.
4. Uniform coating, no blind spots, no ripples.
5. The absence of flux processes and flux cleaning processes greatly reduces equipment and production costs and allows for increased productivity by simplifying the soldering process.
6. Ultrasonic technology can be used to develop new products by bonding materials that are difficult to weld, and can also be used to develop new products by welding different materials.

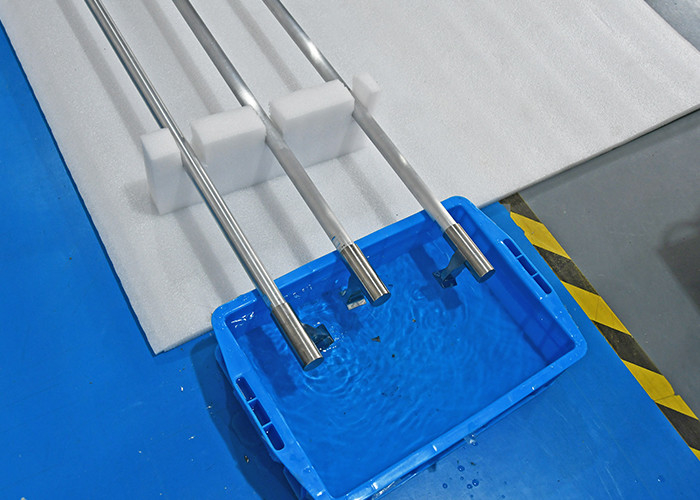

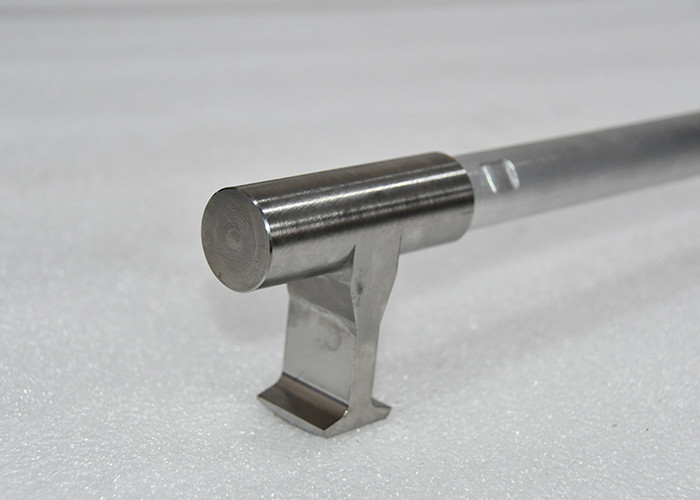

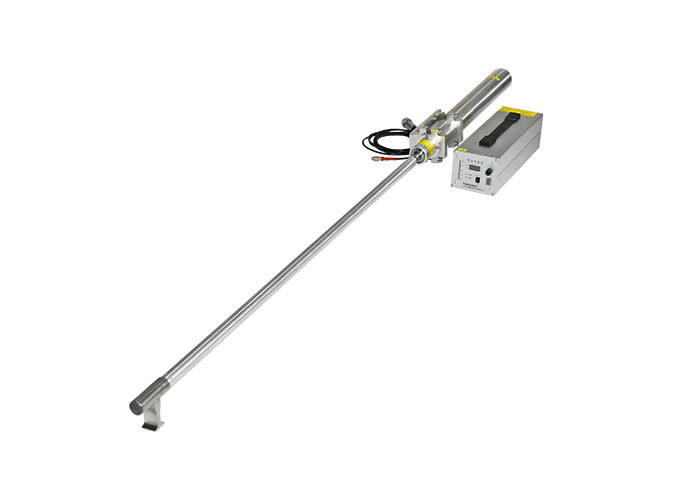

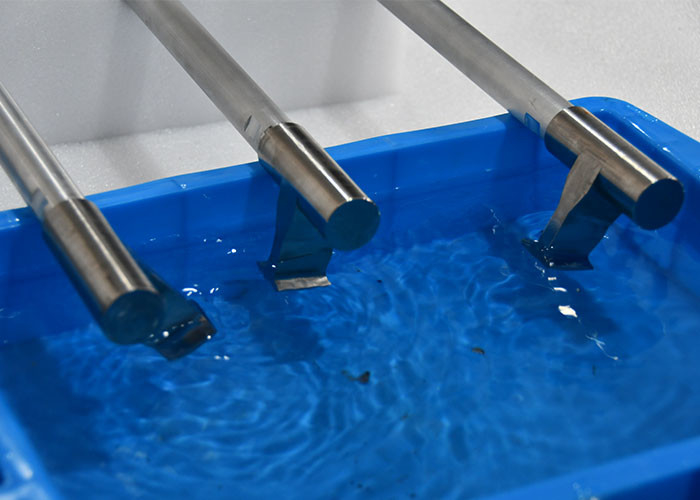

30Khz Ultrasonic Flat Target Welding Machine Indium Coating Technology
