Place of Origin: | CHINA |
---|---|
Brand Name: | FUNSONIC |
Certification: | CE |
Model Number: | FSY-2015-X |
Minimum Order Quantity: | 1 UNIT |
Price: | Negotation |
Packaging Details: | Packed by carton |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000 unit per month |
Production Name: | 20Khz Ultrasonic Superconductors Indium Coating | Frquency: | 20Khz |
---|---|---|---|
Max Power: | 1500W | Temperature Range: | 150-400℃ |
Working Amplitude: | 3-20μm | Input Voltage: | 220V± 10%,50/60Hz,8A |
Indium Coated Head Material: | Titanium Alloy | Control Mode: | Support I/O Or 485 Communication Control, Can Be Integrated With Automation Operations |
Highlight: | Cable Ultrasonic Coater,20Khz Ultrasonic Coated Machine,Superconducting Cable Ultrasonic Coated Machine |

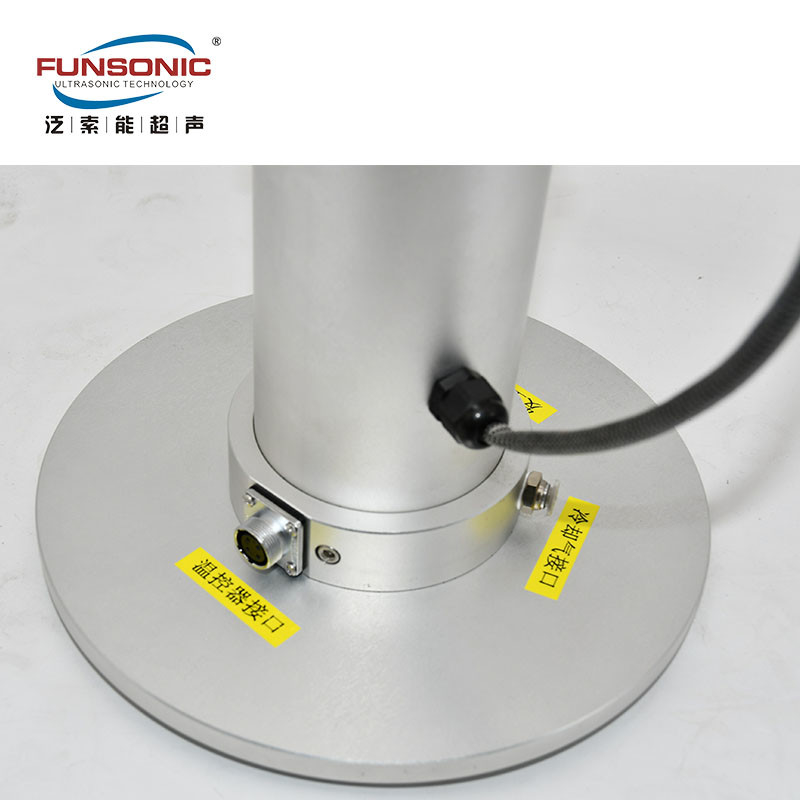

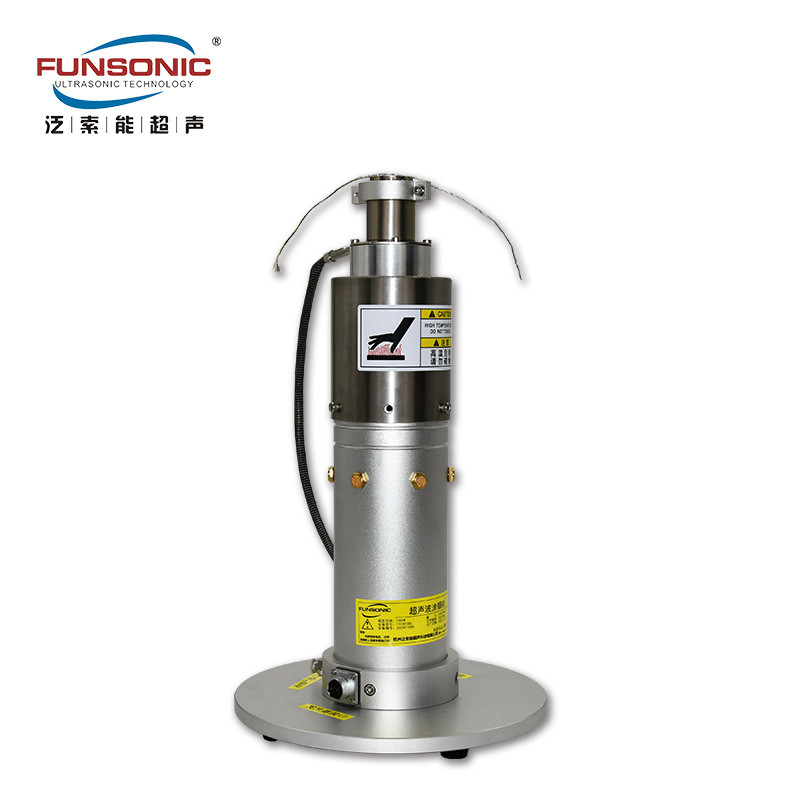

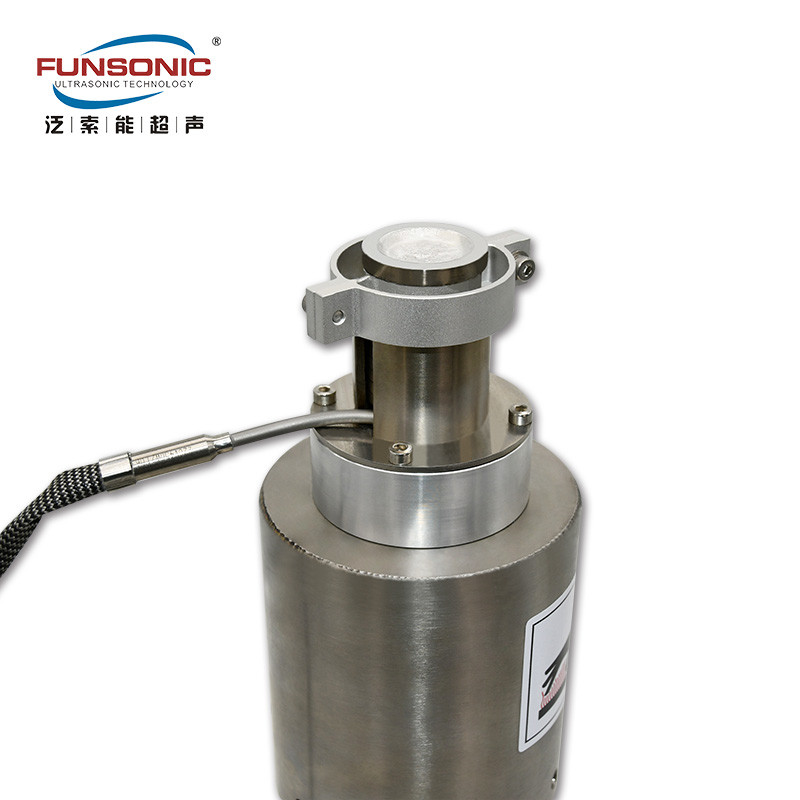

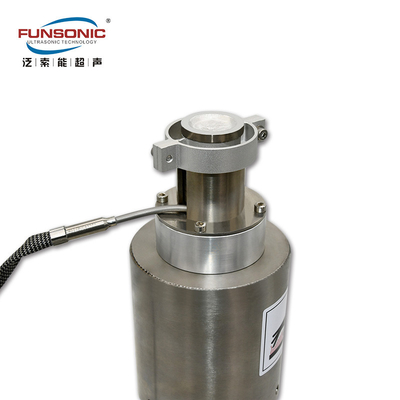

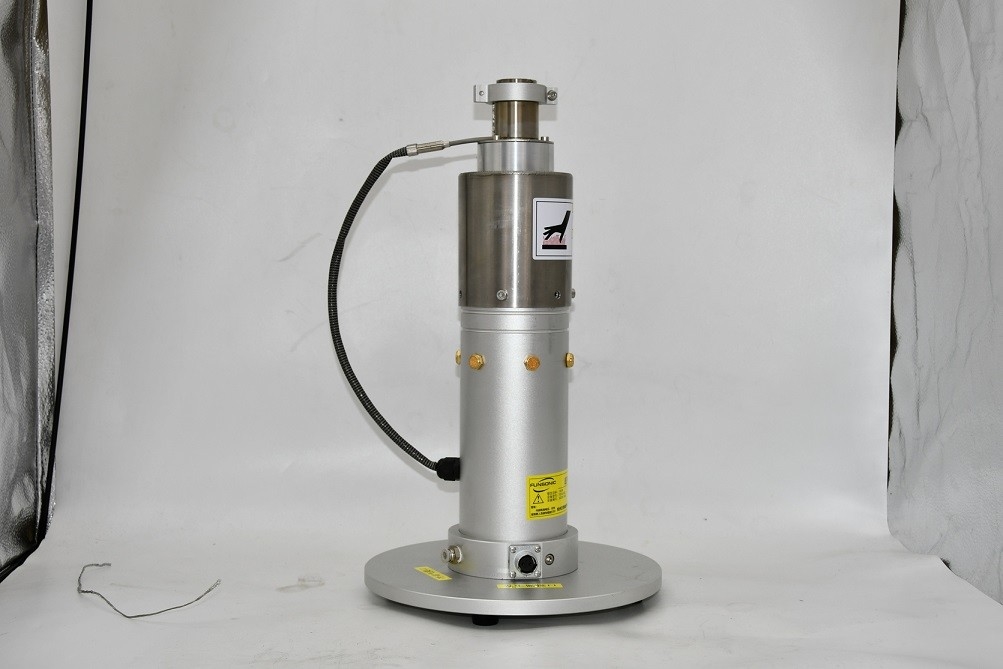

Superconducting Cable Coated with Indium Superconductors 20Khz Ultrasonic Coated Machine
Description:
Ultrasonic wire indium coating machine is a device that uses ultrasonic vibration technology to coat indium material on the surface of a wire. It is mainly used to prepare coatings for superconducting wire materials to improve their superconducting performance.
Superconducting materials refer to materials with zero resistance at low temperatures and extremely high conductivity. However, in order to achieve superconductivity, it is often necessary to coat a layer of indium material on the surface of superconductors.
Parameters:
Model | FSY-2015-X |
Name | 20Khz Ultrasonic Superconductors Indium Coating |
Frequency | 20Khz |
Power | 1500w |
Temperature Range | 150-400℃ |
Working Amplitude | 3-20μm |
Input Voltage | 220V±10%,50/60Hz, 8A |
Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
The working principle of the ultrasonic wire indium coating machine is as follows:
1. Preparation of coating solution: Firstly, it is necessary to prepare a coating solution containing indium material. Coating solution is generally composed of indium powder or indium compounds mixed with solvents, and its viscosity and concentration can be adjusted as needed.
2. Installation of superconductors: Install the superconductors that need to be coated in the clamping device of the ultrasonic superconductor indium coating machine. Clamping devices typically have adjustable clamping force and the ability to adapt to different diameters.
3. Ultrasonic vibration: The coating of indium on ultrasonic superconductors generates high-frequency ultrasonic vibration. These vibrations are transmitted to the coating liquid through coating devices such as nozzles or spray guns.
4. Coating process: When ultrasonic vibration acts on the coating liquid, it causes small eddies and vibrations in the liquid. These eddy currents and vibrations help to evenly disperse the indium material in the coating solution and promote its uniform distribution during the coating process.
5. Coating effect: The indium material in the coating solution will be sprayed or sprayed onto the surface of the superconductor through the coating device under the action of ultrasonic vibration. Due to the eddy current effect and small vibrations of ultrasound, indium droplets in the coating solution will be uniformly distributed and attached to the surface of the superconductor, forming a uniform coating.

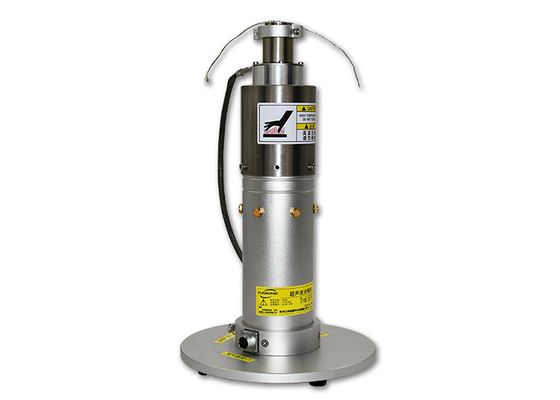

Superconducting Cable Coated with Indium Superconductors 20Khz Ultrasonic Coated Machine
