Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by carton
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSY-2015-IC

Production Name:

Ultrasonic Inner Circle Indium Coating Machine

Frquency:

20Khz

Max Power:

1500W

Temperature Range:

150-400℃

Working Amplitude:

3-15μm

Input Voltage:

20V± 10%，50/60Hz，8A

Indium Coated Head Material:

Titanium Alloy

Application Direction Flat, Inner Hole, Outer Circle, Etc:

Flat, Inner Hole, Outer Circle, Etc

Highlight:

20Khz Ultrasonic Indium Coating

Inner Tube Ultrasonic Indium Coating

1500w Ultrasonic Indium Coating

Product Description

Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w

Description:

Ultrasonic inner circle indium coating machines usually use spray or brush coating techniques for coating. Spray coating technology can spray coating liquid onto the inner surface of an object through a nozzle or spray gun, while brush coating technology uses a coating brush to apply the coating liquid onto the inner surface of the object. The selection of appropriate coating techniques depends on specific application requirements and the geometric shape of the object.

The ultrasonic inner circle indium coating machine can be used for coating various materials, including metals, plastics, ceramics, etc. The indium material in the coating solution can be indium powder or indium compound, which can be selected according to specific application requirements and requirements

Parameters:

Model	FSY-2015-IC
Name	20Khz Ultrasonic Inner Indium Coating
Frequency	20Khz
Power	500-1500w
Temperature Range	150-400℃
Working Amplitude	3-15μm
Input Voltage	220V±10%,50/60Hz, 8A
Control Mode	Support I/O or 485 communication control, can be integrated with automation operations

Product Type		Planar Indium Coating	Inner Hole Indium Coating	Outer Circle Coated with Indium
Rated Power		100-1000W	500-2500W	300-1500W
Frequency		20,28,30KHz	20KHz	20KHZ
Temperature Range		150-400℃
Working Amplitude		3-20μm	3-15μm	3-20μm
Input Voltage		220V± 10%,50/60Hz,4A	220V± 10%,50/60Hz,8A	220V± 10%,50/60Hz,6A
Indium Coated Head Material		Titanium Alloy (other materials can be customized)
Working Mode		Intermittent/Continuous switchable
Control Mode		Manual Button or External Control
Composition Accessories		Ultrasonic Generator,Transducer, Specialized Amplitude Lever, Indium Coated Head, Shell, etc
Ultrasonic Generator	Size	180120360mm
	Weight	5kg
	Characteristic	Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day
Vibration Head Size		Φ16cap shaped round head,50*10mmsquare head	50*30mm(inner diameter of curved fitting pipe)	80*20mm (outer diameter of curved fitting pipe)
Processable Materials		ITO glass, aluminum, molybdenum, copper, indium, etc
Application Direction		Flat, inner hole, outer circle, etc

Application field:

Ultrasonic inner circle indium coating machine has been applied in many fields. For example, in the petroleum and chemical industries, it can be used for internal coating of pipes and fittings to improve their corrosion resistance. In the automotive manufacturing industry, it can be applied to the inner circle coating of engine components to improve their wear resistance and high temperature resistance. In addition, ultrasonic inner circle indium coating machines can also be used in electronic components, aerospace and other fields.

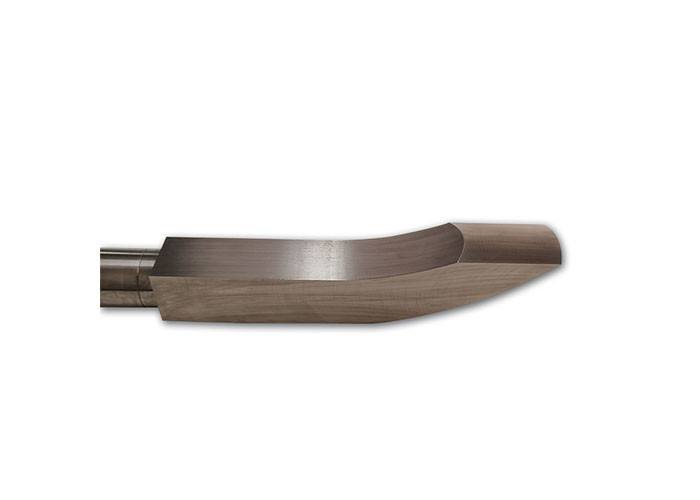

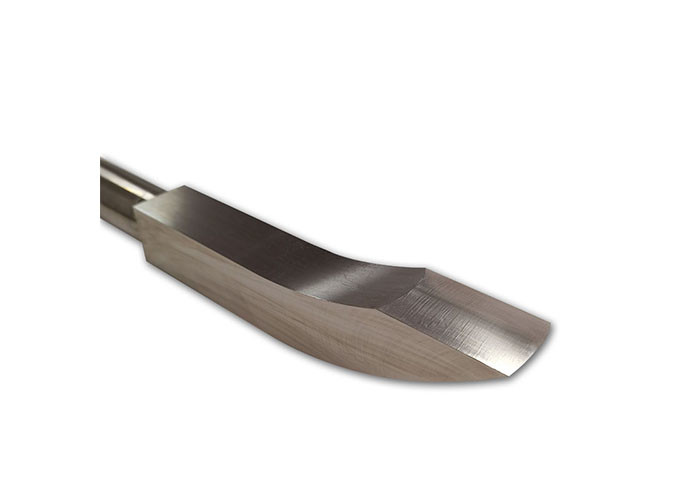

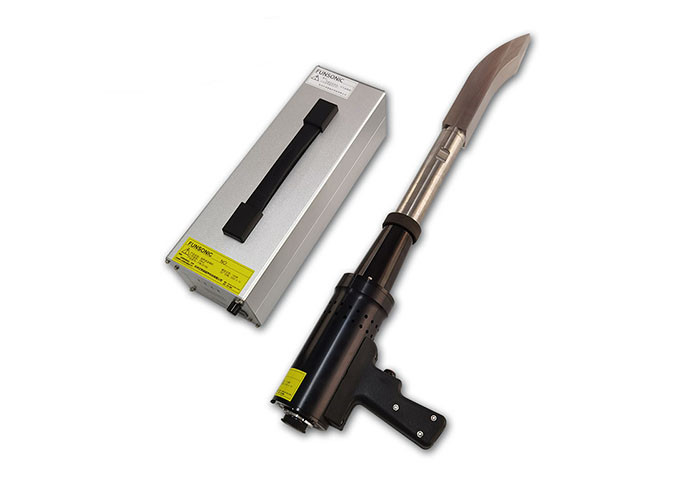

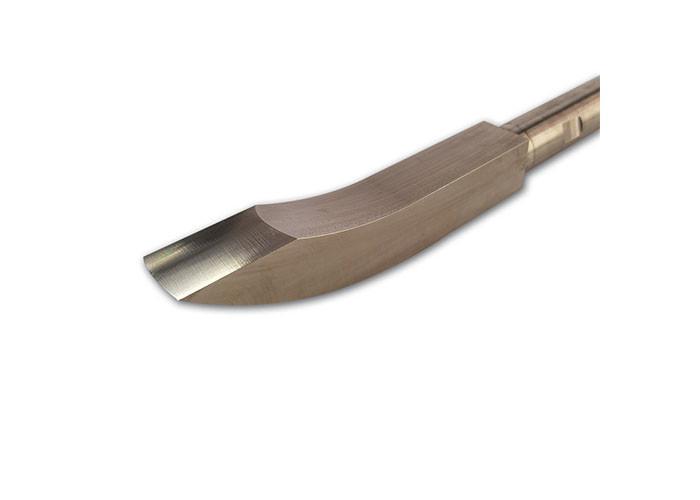

Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w

Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w 0

Arc Target Ultrasonic Indium Plating Coating Inner Tube 20Khz 1500w 1
