Place of Origin: | CHINA |
---|---|
Brand Name: | FUNSONIC |
Certification: | CE |
Model Number: | FSY-2010-OC |
Minimum Order Quantity: | 1 UNIT |
Price: | Negotation |
Packaging Details: | Packed by carton |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1000 unit per month |
Production Name: | 20Khz Ultrasonic External Indium Coating | Frquency: | 20Khz |
---|---|---|---|
Max Power: | 300-1500W | Temperature Range: | 150-400℃ |
Working Amplitude: | 3-20μm | Input Voltage: | 220V± 10%,50/60Hz,4A |
Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
Highlight: | 20Khz Ultrasonic Indium Coating,High Frequency Ultrasonic Indium Coating,Vibration Technology Ultrasonic Indium Coating |

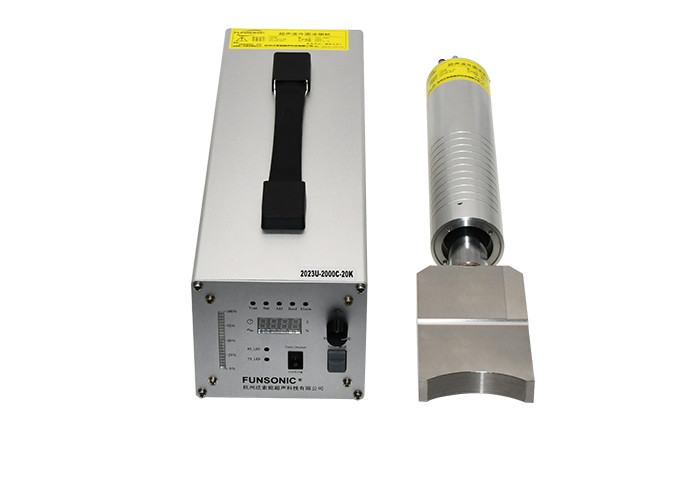

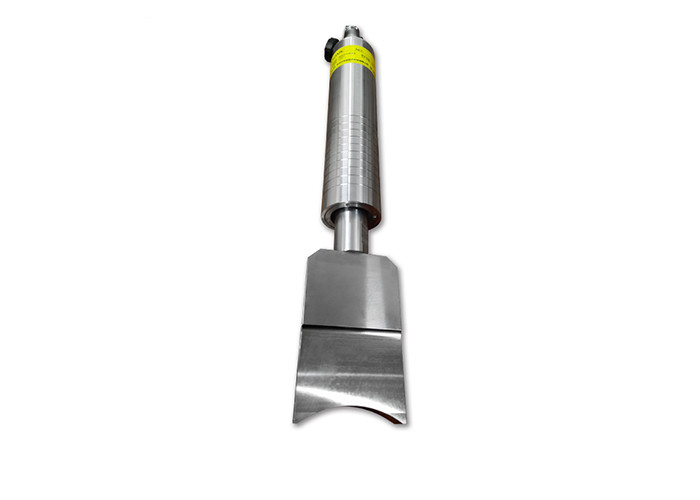

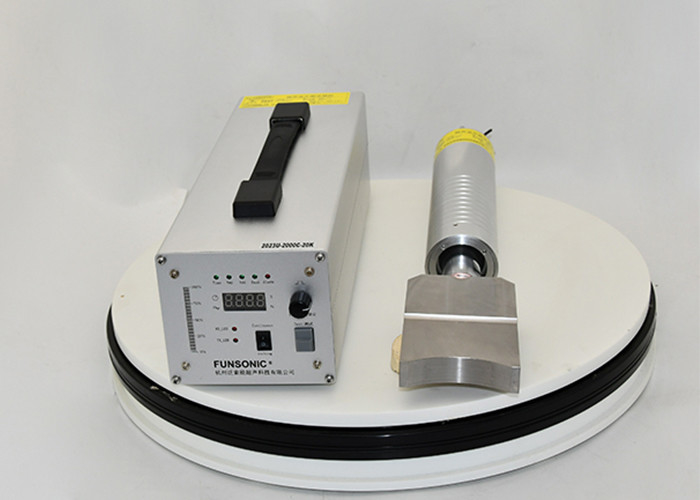

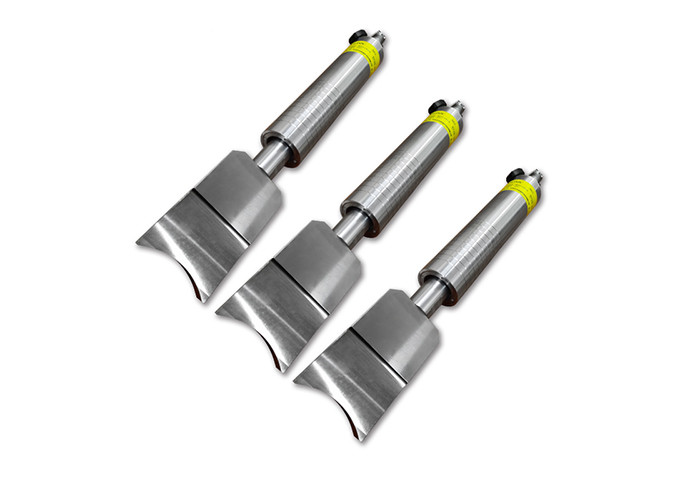

High Frequency 20Khz Ultrasonic Copper Plate Indium Coating Vibration Technology
Description:
The operation process of the ultrasonic indium coating machine involves placing the prepared coating solution containing indium material in the coating tank of the ultrasonic indium coating machine, and transmitting high-frequency ultrasonic vibration to the coating solution through conduction or radiation. When ultrasonic vibration acts on the coating liquid, it causes small eddies and vibrations in the liquid. These eddy currents and vibrations help to evenly disperse the indium material in the coating solution and promote its uniform distribution during the coating process. The indium material in the final coating solution will be sprayed onto the target surface in the form of droplets under the action of ultrasonic vibration.
Parameters:
Model | FSY-2010-OC |
Name | 20Khz Ultrasonic External Indium Coating |
Frequency | 20Khz |
Power | 300-1500w |
Temperature Range | 150-400℃ |
Working Amplitude | 3-20μm |
Input Voltage | 220V±10%,50/60Hz, 6A |

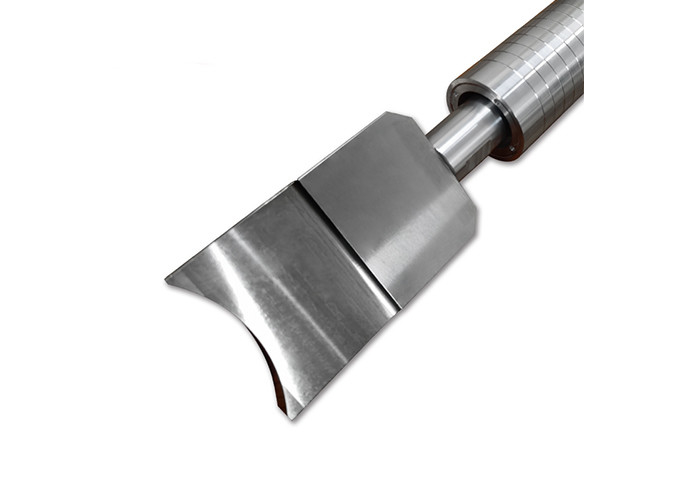

Vibrating Head Size | 80*20mm (Curved to fit the external diameter of the tube) |
Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
Product Type | Flat Indium Coating | Inner Indium Coating | External Indium Coating | |
Power | 100-1000W | 500-2500W | 300-1500W | |
Frequency | 20,28,30KHz | 20KHz | 20KHZ | |
Temperature Range | 150-400℃ | |||
Working Amplitude | 3-20μm | 3-15μm | 3-20μm | |
Input Voltage | 220V± 10%,50/60Hz,4A | 220V± 10%,50/60Hz,8A | 220V± 10%,50/60Hz,6A | |
Material of Horn | Titanium Alloy | |||
Working Mode | Intermittent/ continuous working | |||
Control Mode | Manual button or external control | |||
Components | Ultrasonic generator, transducer, specialized amplitude lever, indium coated head, shell, etc | |||
Ultrasonic Generator | Size | 180*120*360mm | ||
Weight | 5kg | |||
characteristic | Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day | |||
Size of Horn | Φ16T-hat Circular Horn,,50*10mm Square Horn | 50*30mm(Radian fitting tube inner diameter) | 80*20mm(Radian fitting tube external diameter) | |
Treatment Materials | ITO glass, aluminum, molybdenum, copper, indium, etc | |||
Application | Flat, inner hole, outer circle, etc |
Advantages and Characteristics:
1. Uniformity: The ultrasonic indium coating machine can achieve a highly uniform coating effect. Ultrasonic vibration and eddy current effects can ensure the uniform dispersion of indium materials in the coating solution and the uniform coating on the target surface, thereby obtaining consistent and high-quality coatings.
2. Efficiency: The ultrasonic indium coating machine has a fast coating speed and efficient coating performance. Ultrasonic vibration can promote the formation and adhesion of droplets in the coating solution, achieving a fast and efficient coating process.
3. Wide applicability: Ultrasonic indium coating machine can be used for different types of materials and surface coatings. It is suitable for coating various materials such as metals, ceramics, plastics, etc., and can be applied in multiple fields such as electronics, optics, and medicine.
4. Easy to operate and control: Ultrasonic indium coating machines usually have a simple and easy-to-use operating interface and control system. Operators can easily adjust coating parameters, such as vibration frequency, coating speed, and coating thickness, to meet different coating requirements.
