| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-2010-OC |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | 20Khz Ultrasonic External Indium Coating | Frquency: | 20Khz |
|---|---|---|---|
| Max Power: | 300-1500W | Temperature Range: | 150-400℃ |
| Working Amplitude: | 3-20μm | Input Voltage: | 220V± 10%，50/60Hz，4A |
| Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
| High Light: | Manual Cylindrical Indium Coating,ITO Glass Replacing Indium Coating,20Khz Ultrasonic Indium Coating |
||

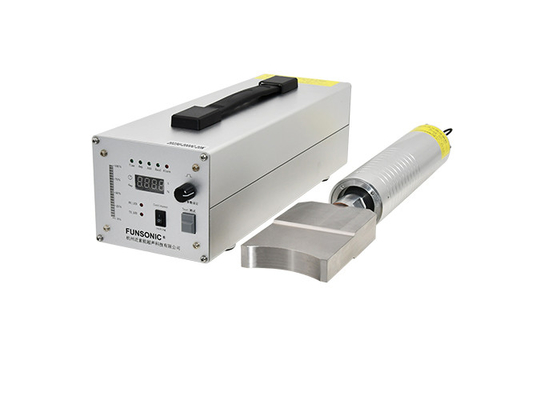

ITO Glass Replacing Manual Cylindrical Indium Coating 20Khz Ultrasonic Technology
Description:
Ultrasonic cylindrical indium coating machine is a device that uses ultrasonic vibration technology to coat indium materials on the outer surface of an object. It is suitable for coating the outer surface of cylindrical or circular objects, such as pipes, fittings, cylinders, etc.
Parameters:
| Model | FSY-2010-OC |
| Name | 20Khz Ultrasonic External Indium Coating |
| Frequency | 20Khz |
| Power | 300-1500w |
| Temperature Range | 150-400℃ |
| Working Amplitude | 3-20μm |
| Input Voltage | 220V±10%,50/60Hz, 6A |
| Vibrating Head Size | 80*20mm (Curved to fit the external diameter of the tube) |
| Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
| Product Type | Flat Indium Coating | Inner Indium Coating | External Indium Coating | |
| Power | 100-1000W | 500-2500W | 300-1500W | |
| Frequency | 20,28,30KHz | 20KHz | 20KHZ | |
| Temperature Range | 150-400℃ | |||
| Working Amplitude | 3-20μm | 3-15μm | 3-20μm | |
| Input Voltage | 220V± 10%,50/60Hz,4A | 220V± 10%,50/60Hz,8A | 220V± 10%,50/60Hz,6A | |
| Material of Horn | Titanium Alloy | |||
| Working Mode | Intermittent/ continuous working | |||
| Control Mode | Manual button or external control | |||
| Components | Ultrasonic generator, transducer, specialized amplitude lever, indium coated head, shell, etc | |||
| Ultrasonic Generator | Size | 180*120*360mm | ||
| Weight | 5kg | |||
| characteristic | Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day | |||
| Size of Horn | Φ16T-hat Circular Horn,,50*10mm Square Horn | 50*30mm(Radian fitting tube inner diameter) | 80*20mm(Radian fitting tube external diameter) | |
| Treatment Materials | ITO glass, aluminum, molybdenum, copper, indium, etc | |||
| Application | Flat, inner hole, outer circle, etc | |||
Principle:
1. Preparation of coating solution: Firstly, it is necessary to prepare a coating solution containing indium material. Coating solution is generally composed of indium powder or indium compounds mixed with solvents, and its viscosity and concentration can be adjusted as needed.
2. Installation object: Place the cylindrical object to be coated in the clamping device of the ultrasonic outer circle indium coating machine. Clamping devices typically have adjustable clamping force and the ability to adapt to different diameters.
3. Ultrasonic vibration: The ultrasonic outer circle coated with indium will generate high-frequency ultrasonic vibration. These vibrations are transmitted to the coating solution through coating devices such as coating brushes or nozzles.
4. Coating process: When ultrasonic vibration acts on the coating liquid, it causes small eddies and vibrations in the liquid. These eddy currents and vibrations help to evenly disperse the indium material in the coating solution and promote its uniform distribution during the coating process.
5. Coating effect: The indium material in the coating solution will be sprayed or brushed onto the outer surface of the object through the coating device under the action of ultrasonic vibration. Due to the eddy current effect and small vibrations of ultrasound, indium droplets in the coating solution will be uniformly distributed and attached to the outer surface of the object, forming a uniform coating.

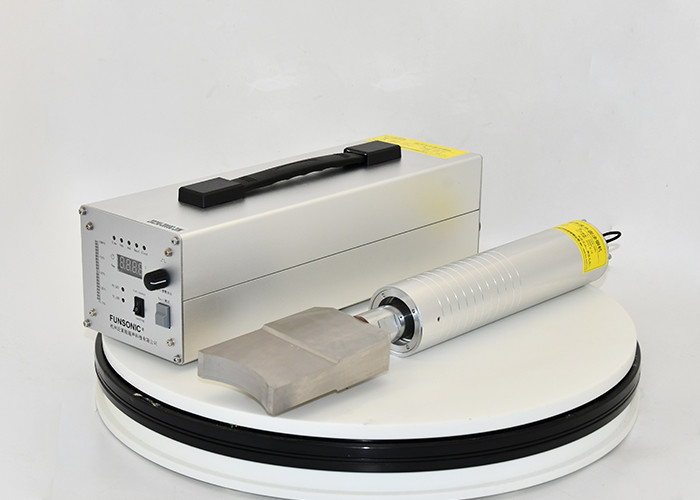

ITO Glass Replacing Manual Cylindrical Indium Coating 20Khz Ultrasonic Technology
