40Khz Ultrasound Handheld Rubber Cutting Device
  • name
  • name
  • name
  • name
  • name

40Khz Ultrasound Handheld Rubber Cutting Device

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
FUNSONIC
Certification
CE
Model Number
FSC-CR40-82
Name:
40Khz Ultrasonic Fabric Cutter
Frequency:
40Khz
Power:
800w
Cutting Thickness:
M(according To Materials)
Cutter Materials:
Steel
Application:
Rubber Cutter
Highlight:

Ultrasound Handheld Rubber Cutting Device

,

Handheld Rubber Cutting Device

,

40Khz Ultrasound Handheld Rubber Cutting Device

Product Description

40Khz Ultrasound Handheld Rubber Cutting Device





Description:



Ultrasonic rubber cutting process’s primary function is to split the connected parts. The high-frequency vibration per second can reduce the pressure acting on the items to be cut to facilitate a neat and clean cutting surface. Ultrasonic rubber cutting uses ultrasonic waves to melt the rubber being cut by localised heating, thus cutting the material.



Ultrasonic rubber cutting uses a replacement blade head which is made of alloy steel. The sharp head makes the cutting contact surface smaller and reduces the head’s heat. The sharp cutter uses ultrasonic to make the cutting effect more ideal. Ultrasonic cutter can be used for hand-held cutting and automatic mechanical clamping. FUNSONIC provides 20, 30, 35 and 40kHz ultrasonic cutter for different application environments.





Parameters:



Model FSC-CR40-82
Name

40Khz Ultrasonic Rubber Cutter


Frequency 40Khz
Power 800w
Input Voltage 220V±10%,50/60Hz
Cutter Materials Alloy Steel
Width of Blade 82mm(can be customized)
Application Rubber, Plastic Cutter





Advantages:



1. Cut without deformation or displacement of the internal product.

2. No need to frequently clean blades when cutting sticky products.

3. Cutting speeds can be increased substantially, and smaller kerfs help reduce waste—an extensive range of products that can be cut without changing the blade.

4. Robust one-piece tool head blade construction virtually eliminates breakage and energy loss.

5. Funsonic ultrasonic rubber cutting systems are carefully designed and machined for high-performance operation in the harshest of machining environments.

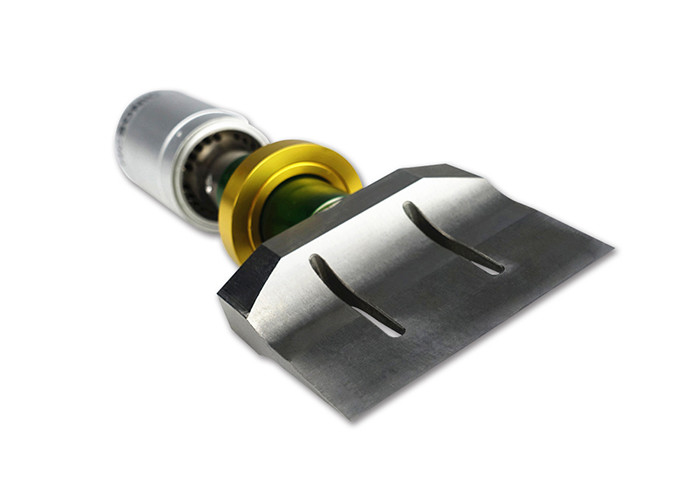

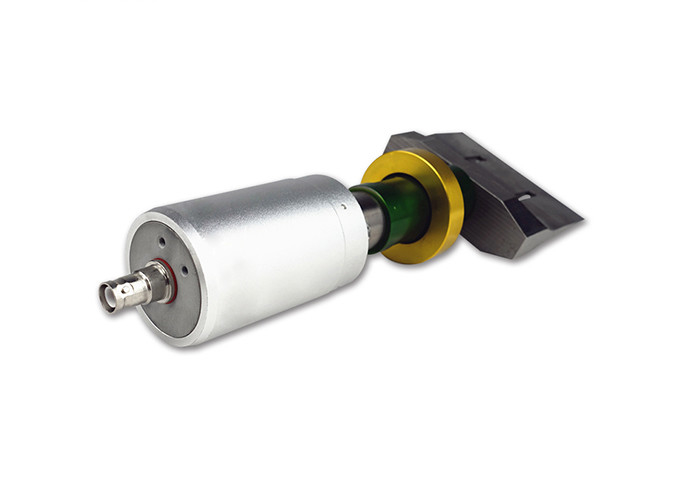

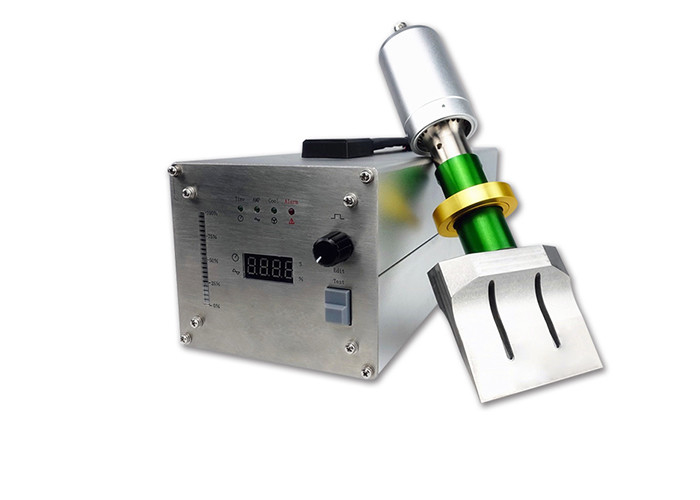

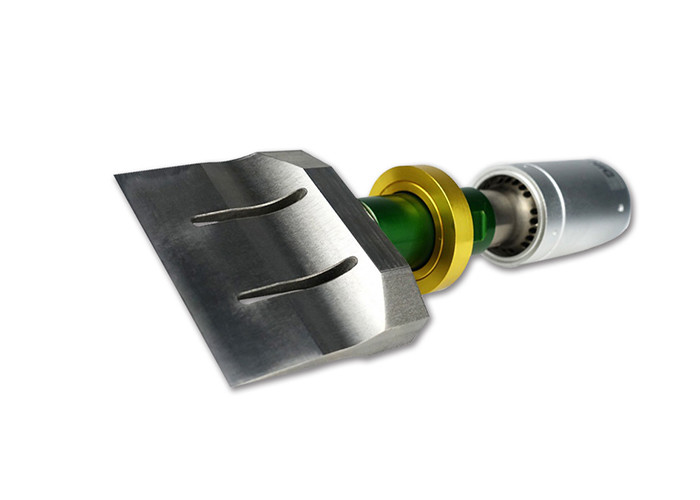

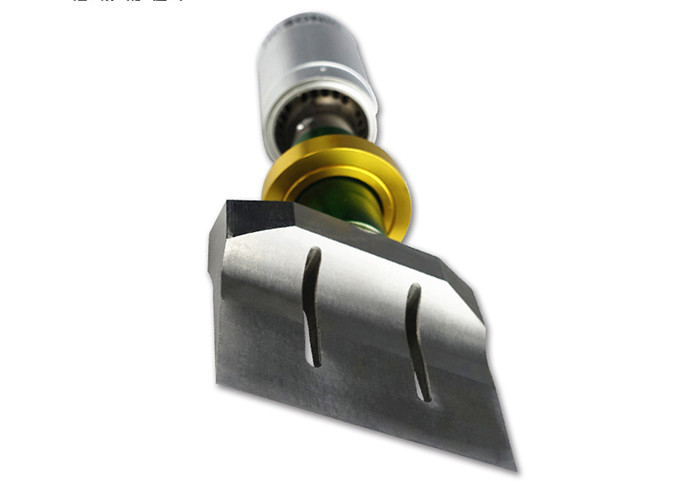

40Khz Ultrasound Handheld Rubber Cutting Device



40Khz Ultrasound Handheld Rubber Cutting Device 0



40Khz Ultrasound Handheld Rubber Cutting Device 1
