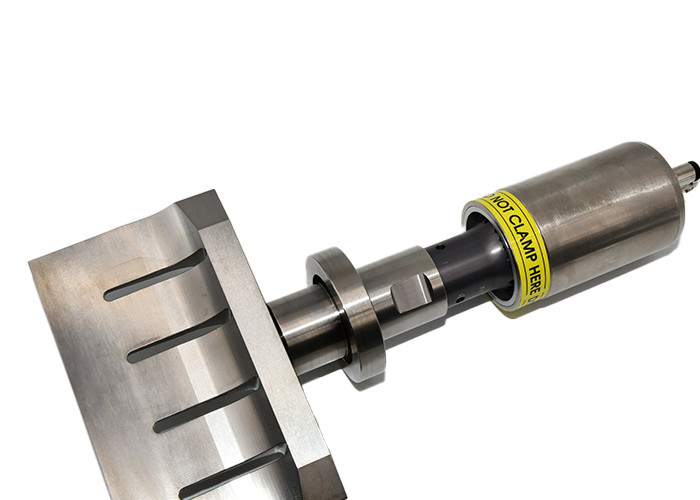

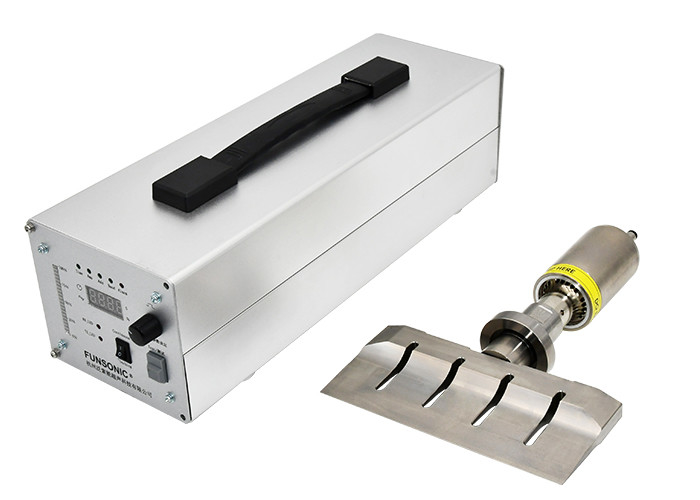

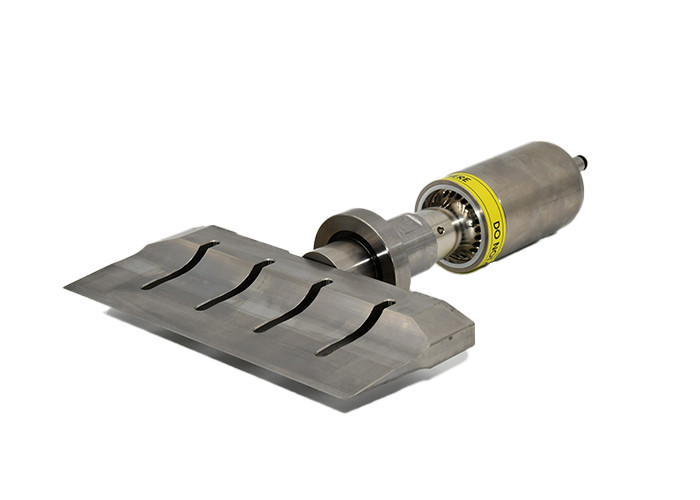

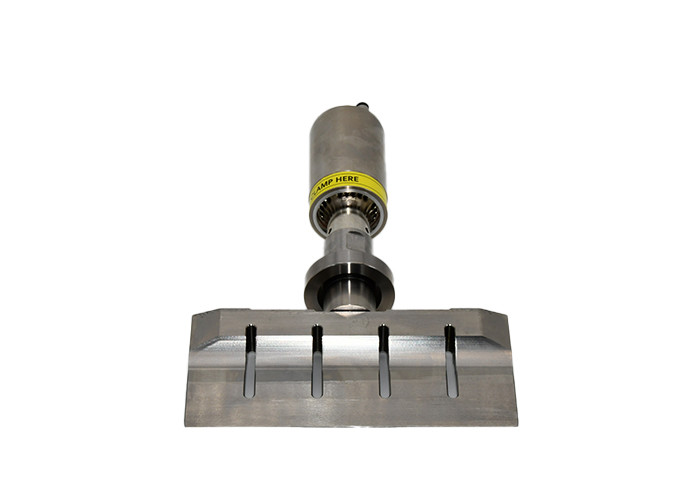

High Frequency Ultra Rubber Cutting Blade 40Khz 165mm
  • name
  • name
  • name
  • name

High Frequency Ultra Rubber Cutting Blade 40Khz 165mm

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
FUNSONIC
Certification
CE
Model Number
FSC-CR40-165
Name:
40Khz Ultrasonic Rubber Cutter
Frequency:
40Khz
Power:
800w
Input Voltage:
220V±10%，50/60Hz
Cutter Materials:
Titanium Alloy
Application:
Rubber, Plastic Cutter
Highlight:

40Khz Ultra Rubber Cutting Blade

,

High Frequency Ultra Rubber Cutting Blade

,

165mm Ultra Rubber Cutting Blade

Product Description

High Frequency Ultra Rubber Cutting Blade 40Khz 165mm





Description:



Ultrasonic rubber cutting principle is to convert 50/60Hz current into 20-40kHz electrical energy through an ultrasonic generator. The converted high-frequency electrical energy is converted again into mechanical vibrations of the same frequency through a transducer. The mechanical vibrations are then transmitted to the cutting knife through amplitude modulators that can change the amplitude. The ultrasonic rubber cutter vibrates at an amplitude of 10-70 μm along its length, repeating 40,000 times per second (40 kHz) (the vibration of the blade is microscopic and difficult to see with the naked eye). The cutting knife then transfers the received vibration energy to the workpiece’s cutting surface to be cut. In this area, the vibration energy is used to cut the rubber by activating the rubber molecular energy and opening the molecular chains.





Parameters:



Model FSC-CR40-165
Name

40Khz Ultrasonic Rubber Cutter


Frequency 40Khz
Power 800w
Input Voltage 220V±10%,50/60Hz
Cutter Materials Titanium Alloy or Steel
Width of Blade 165mm(can be customized)
Application Rubber, Plastic Cutter





Advantages:



1. Cut without deformation or displacement of the internal product.

2. A closed-loop electrical circuit monitors the blade output to provide consistent cuts time after time.

3. Cutting speeds can be increased substantially, and smaller kerfs help reduce waste—an extensive range of products that can be cut without changing the blade.

4. Rubber cutting system is made of stainless steel and titanium to ensure improved hygiene, safety and processing performance.

5. Funsonic ultrasonic rubber cutting systems are carefully designed and machined for high-performance operation in the harshest of machining environments.





High Frequency Ultra Rubber Cutting Blade 40Khz 165mm



High Frequency Ultra Rubber Cutting Blade 40Khz 165mm 0High Frequency Ultra Rubber Cutting Blade 40Khz 165mm 1

Tags:

ultrasonic slitting machine,

ultrasonic food cutting machine,

ultrasonic cake cutting machine
