20Khz Ultrasonic Mask Welding Components
  • name
  • name
  • name
  • name

20Khz Ultrasonic Mask Welding Components

MOQ: 1 Unit
Price: Negotation
Standard Packaging: Packed by Carton
Delivery Period: 5 workdays
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
FSW2020
Model:
FSW2020
Name:
20Khz Ultrasonic Mask Welding Components
Frequency:
20Khz
Power:
2000w
Input Voltage:
220V±10%，50/60Hz
Working Amplitude:
18-28μm
Materials Of Horn:
Titanium Alloy Or Special Steel
Application:
Fabric Cutting, Lace Cutting, Clothing Stitching, Gluing, Bead Inlay
Highlight:

Mask Ultrasonic Welding Components

,

20Khz Ultrasonic Mask Welding Components

,

20Khz Ultrasonic Mask Welding

Product Description

20Khz Ultrasonic Mask Welding Components





Description:



The ultrasonic face mask welding machine uses high-frequency vibration waves to be transmitted to the surfaces of two objects to be welded. Under pressure, the surfaces of the two objects are rubbed against each other to form a fusion between the molecular layers.

When the ultrasonic wave acts on the thermoplastic plastic contact surface, it will generate tens of thousands of high-frequency vibrations per second. This kind of high-frequency vibration with a certain amplitude will transmit the ultrasonic energy to the welding area through the upper weldment. And because of the poor thermal conductivity of plastic, a moment can not be timely distribution, gathered in the welding area, resulting in the rapid melting of the two plastic contact surface, coupled with a certain pressure, so that the fusion into one.

Funsonic’s face mask welding equipment can complete the welding of Perimeter, bonding filter media to shell, bonding of straps to mask, welding Outline with large block style horn, welding ear loops, welding final nose seam.





Parameters:



Model FSW2020
Name

20Khz Ultrasonic Mask Welding Components


Frequency 20Khz
Power 2000w
Input Voltage 220V±10%,50/60Hz
Materials of horn Titanium Alloy or Special Steel
Application Fabric welding, lace welding, clothing stitching, gluing, bead inlay





Advantage:



1. Get clean process and seam without any consumables or additives in the seam.

2. Achieve molecular bonds at the seam no holes from sewing, or weak strands.

3. Eliminate the cost of adhesive and the glue delivery system and get upto 5X faster cycle rate.

4. Reduce maintenance downtime by eliminating glue applicator and spray nozzles from the process.

5. With a wide array of ultrasonic bonding technologies every part of a face mask can be attached using ultrasonic joining.

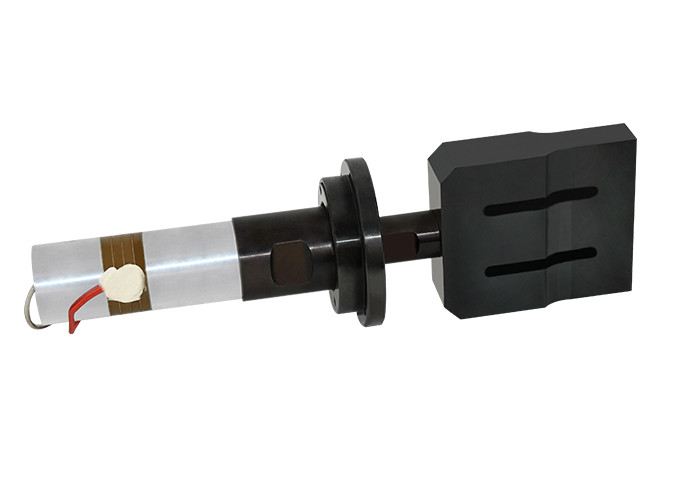

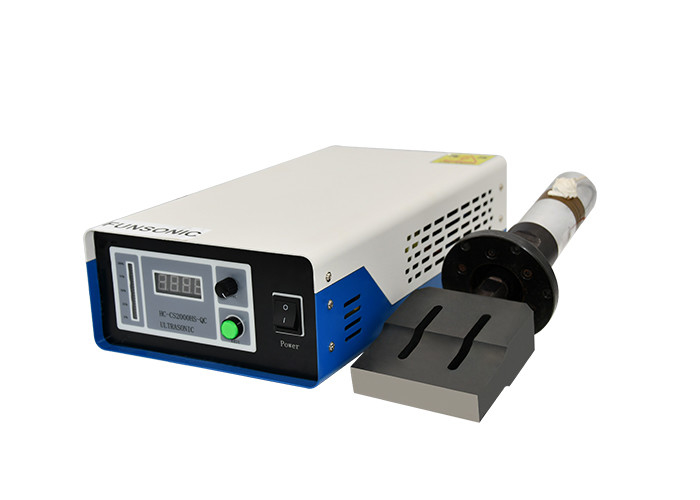

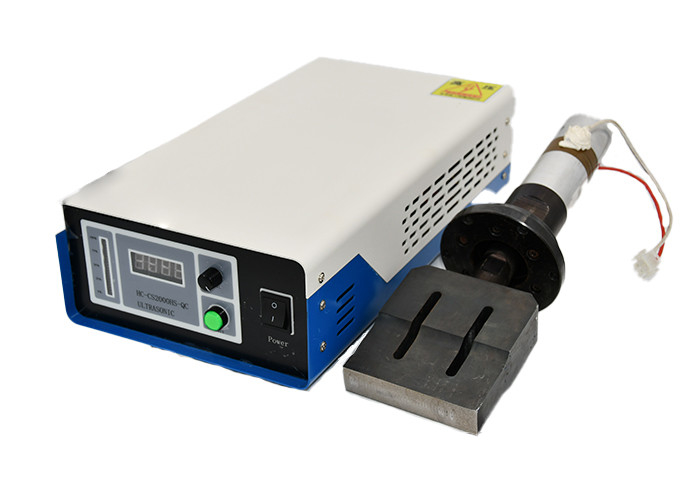

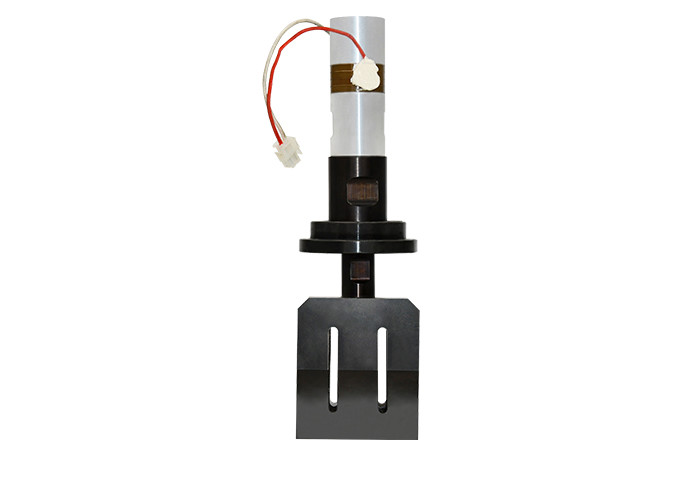

20Khz Ultrasonic Mask Welding Components



20Khz Ultrasonic Mask Welding Components 020Khz Ultrasonic Mask Welding Components 1
