Ultrasonic Benchtop Vacuum Coating System Enhance Production Line
  • name
  • name
  • name
  • name

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS620V
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
20-200khz
Max Power:
1-15W
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-100mm/pcs，Scalable
Spray Uniformity:
≥95%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

Ultrasonic Benchtop Vacuum Coating System

,

Benchtop Vacuum Coating System

,

Ultrasonic Vacuum Coating System

Product Description

Ultrasonic Benchtop Vacuum Coating System



Description:



The desktop ultrasonic vacuum coating system adopts a sealed structure and can perform vacuum treatment on spraying. The maximum negative pressure can reach -0.058/-0.098 MPa, which can cope with some special spraying processes.
In the desktop ultrasonic vacuum coating system, all three axes of XYZ use stepper motors, and the module uses linear screw modules, greatly improving its service life. At the same time, it is equipped with double-layer tempered glass, thickened sealing rings, and reinforced hinges, which can improve sealing and vacuum degree.




Parameters:



Product Type Intelligent Ultrasonic Precision Coating Machine desktop Type FS620V
Spray Nozzle Operating Frequency 20-200Khz
Nozzle Power 1-15W
Continuous Spraying Volume Max 0.5-10ml/min
Effective Spraying Width 2-100mm
Spray Uniformity ≥95%
Solution Conversion Rate ≥95%
Dry Film Thickness 20nm-100μm
Solution Viscosity ≤30cps
Temperature Range 1-60℃
Atomized Particles (Median Value) 15-40μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.05MPA
Input Voltage 220V±10%/50-60Hz
Exercise Mode XYZ three-axis, independently programmable
Control Mode FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method Precision injection pump
Ultrasonic Dispersion System (Optional) 20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System 100W




Advantages :



1. Ultrasonic assistance: Ultrasonic waves can enhance the adhesion and uniformity of the film layer, and improve the physical and chemical properties of the film.
2. Vacuum environment: Coating under vacuum conditions can avoid oxidation and pollution, and improve the quality of the film layer.
3. Multiple materials: can be coated with various materials such as metals, alloys, ceramics, etc., suitable for different application needs.
4. Precise control: The system is usually equipped with precise temperature and pressure control devices to make the coating process more stable.
5. Miniaturization design: Desktop design makes the equipment more flexible and suitable for use in laboratories or small production lines.

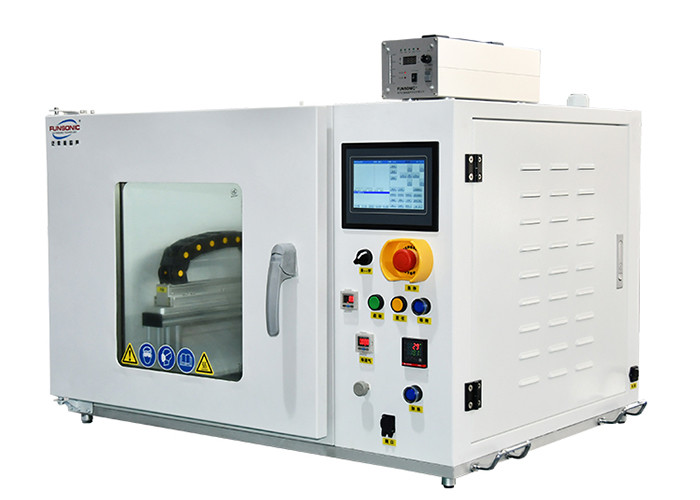

   Ultrasonic Benchtop Vacuum Coating System Enhance Production Line 0

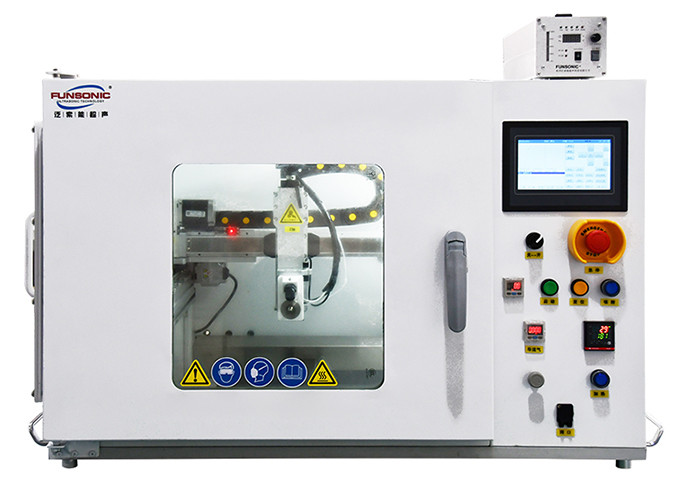

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line 1

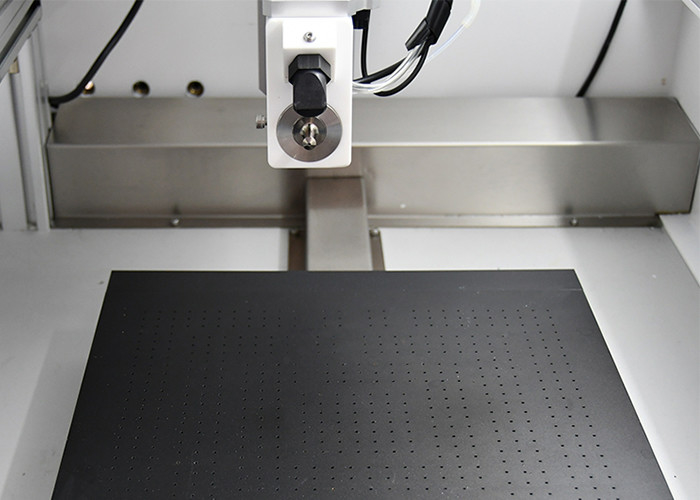

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line 2





Ultrasonic Benchtop Vacuum Coating System

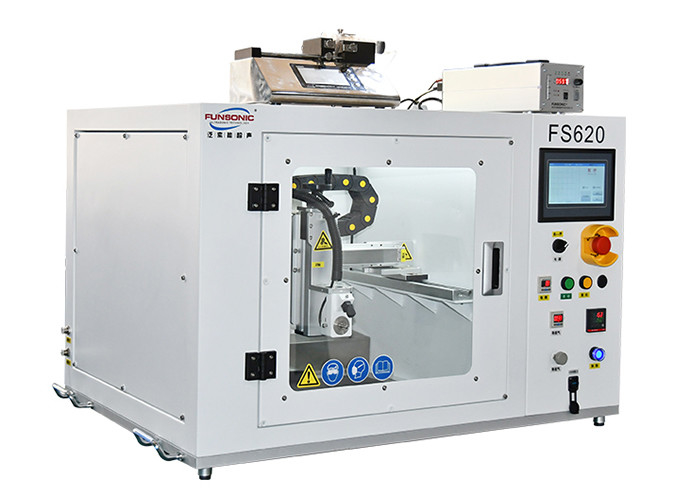

Ultrasonic Benchtop Vacuum Coating System Enhance Production Line 3Ultrasonic Benchtop Vacuum Coating System Enhance Production Line 4
