20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter For Thick Rubbers
  • name
  • name
  • name
  • name

20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter For Thick Rubbers

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
FUNSONIC
Certification
CE
Model Number
FSC-CR20-60
Name:
20Khz Ultrasonic Rubber Cutter
Frequency:
20Khz
Power:
2000w
Input Voltage:
220V±10%，50/60Hz
Cutter Materials:
Alloy Steel Or Titanium Alloy
Application:
Rubber, Plastic Cutter
Highlight:

20Khz Ultrasonic Cutting Machine

,

60mm Deep Cutter Ultrasonic Cutting Machine

,

Thick Rubbers Ultrasonic Cutting Machine

Product Description

20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter For Thick Rubbers





Description:



With the advancement of materials science and ultrasonic technology, 20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter for Thick Rubbers have been further expanded in cutting soft materials such as rubber. The blade generates a high-frequency vibration of 20kHz through an ultrasonic generator, which significantly reduces the frictional resistance during the cutting process, allowing the blade to easily penetrate rubber materials and achieve fine and smooth cutting. The heat generated during the cutting process is minimal, effectively avoiding material melting or deformation.





Parameters:



Model FSC-CR20-60
Name

20Khz Ultrasonic Rubber Cutter
Frequency 20Khz
Power 2000w
Input Voltage 220V±10%,50/60Hz
Cutter Materials Alloy Steel or Titanium Alloy
Width of Blade 60mm(can be customized)
Application Rubber, Plastic Cutter





Rubber Material suitable for Cutting:



1. Natural rubber
Has good elasticity and wear resistance, suitable for manufacturing various seals and gaskets.
2. Synthetic rubber
Styrene butadiene rubber (SBR): widely used in automotive tires and industrial products.
Chloroprene rubber (CR): Good oil resistance, suitable for protective materials and seals.
Ethylene propylene rubber (EPDM): Strong weather resistance, suitable for outdoor products.
3. foam rubber
Commonly used for sound insulation, shock absorption, and thermal insulation materials, ultrasonic cutting can achieve fine processing.
4. Silicone
Strong tolerance to temperature and chemicals, commonly used in medical devices and food contact materials.
5. Butyl rubber
Mainly used for manufacturing airtight products, such as inner tubes and seals.
6. Fluororubber
Has excellent chemical resistance and is suitable for high temperature and corrosive environments.

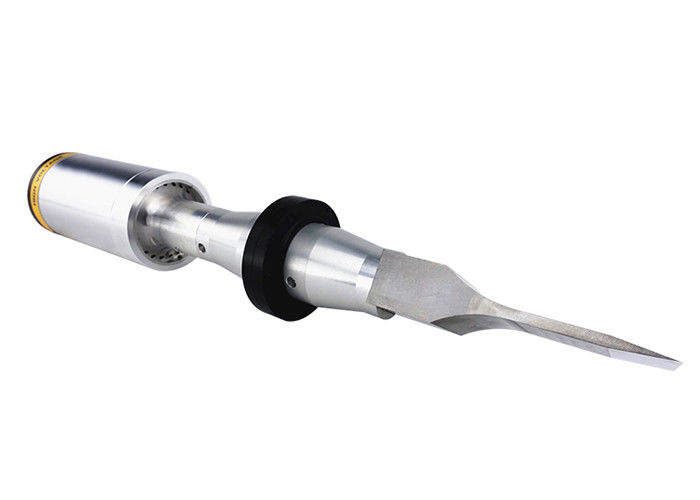

20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter For Thick Rubbers

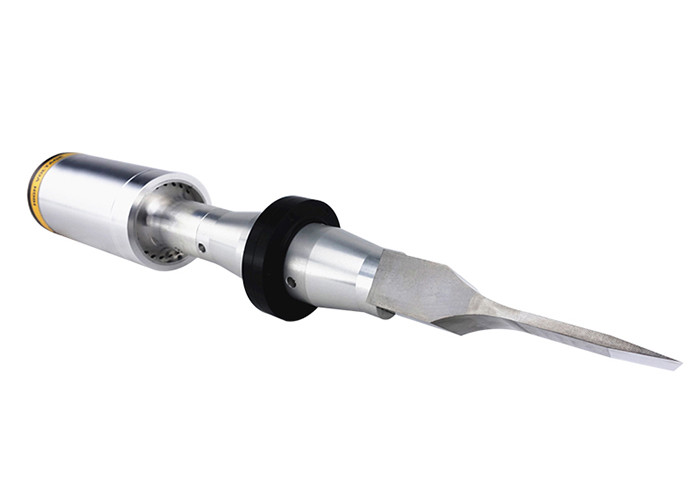

20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter For Thick Rubbers 0

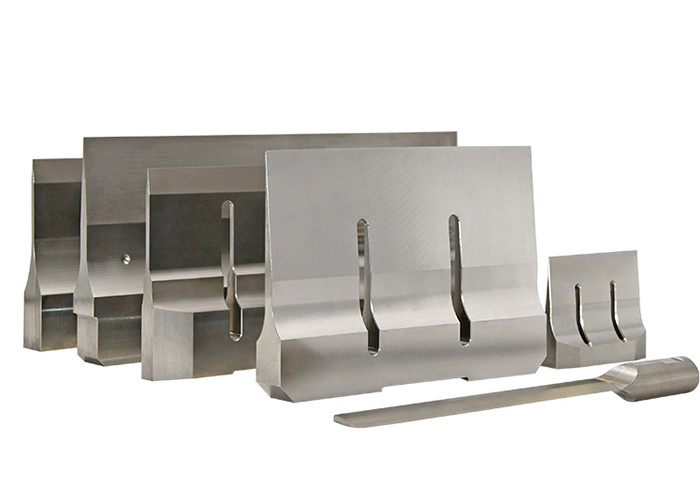

20Khz Ultrasonic Full Wavelength Cutting Machine 60mm Deep Cutter For Thick Rubbers 1

Tags:

ultrasonic slitting machine,

ultrasonic food cutting machine,

ultrasonic cake cutting machine
