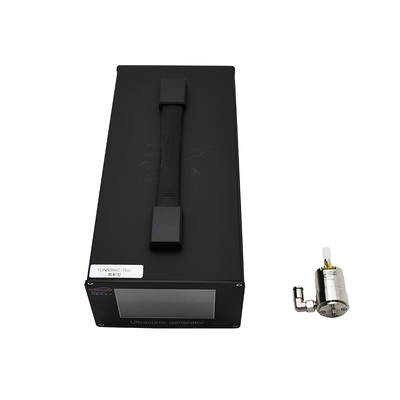

150kHz Ultrasonic Spray Coating System
  • name
  • name
  • name
  • name
  • name

150kHz Ultrasonic Spray Coating System

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T,Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-1502-L
Production Name:
150Khz Scattering Ultrasonic Nozzle Atomization
Frequency:
150Khz
Max Power:
10w
Automized Particle Size Range:
10-30μm
Spray Flow:
0.5-20ml
Liquid Viscosity:
<10cps
Particle Size:
<5μm
Application:
Widely Applied In MEMS, Semiconductor Wafers, PEM Fuel Cells, Sensors, Medical Balloon Catheters And Optical Thin Films
Highlight:

150kHz ultrasonic spray coating system

,

ultrasonic spray coating machine with warranty

,

high-frequency ultrasonic spray coating system

Product Description

150kHz Ultrasonic Spray Coating System



Description:


The 150kHz ultrasonic scattering spray system is developed for ultra-thin precision coating and 3D micro-structure conformal deposition.

With 150kHz piezoelectric high-frequency vibration, liquid is atomized into fine, uniformly distributed micro-droplets. The built-in vortex channel inside nozzle converts low-pressure carrier gas into rotating cyclone flow, forming a conical scattering spray. It enables conformal coating on flat surfaces, steps, trenches, sidewalls and curved substrates, overcoming the limitation of focused nozzles for 3D micro-structures.
Equipped with precision liquid feeding, carrier gas regulation and XYZ motion module, dry film thickness ranges from 20 nm to tens of microns with coating uniformity ≥95%. Low-kinetic soft spray minimizes overspray and material waste, nozzle is less prone to clogging.
Suitable for low-viscosity solutions and nano-suspensions, widely applied in MEMS, semiconductor wafers, PEM fuel cells, sensors, medical balloon catheters and optical thin films for R&D and pilot production.



Parameters:


Model FSW-1502-L
Name 150Khz Scattering Ultrasonic Nozzle Atomization
Frequency 150Khz
Atomized particle size range(μm) 10-30
Spray width(mm) 40-80
Spray flow(ml/min) 0.5-20
Spray height(mm) 30-80
Liquid viscosity (cps) <10
Particle size (μm) <5
Diversion pressure (Mpa) <0.05
Application widely applied in MEMS, semiconductor wafers, PEM fuel cells, sensors, medical balloon catheters and optical thin films



Key Benefits :


• 150kHz high frequency for finer droplets & ultra-thin film

• Cyclone scattering spray for conformal coating on trenches & sidewalls

• Low kinetic spray, no substrate damage

• High uniformity ≥95%, precise nanoscale film control

• High material utilization, low maintenance



150kHz Ultrasonic Spray Coating System


150kHz Ultrasonic Spray Coating System

150kHz Ultrasonic Spray Coating System
