| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-WD60 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Power Supply | Frequency: | 60KHZ |
|---|---|---|---|
| Power: | 100W | Voltage: | 220V Or 110V |
| Generator: | Digital Generator | Application: | Ultrasonic Wire Embedding Machine |
| High Light: | ultrasonic sound wave generating device,ultrasonic signal generator |
||

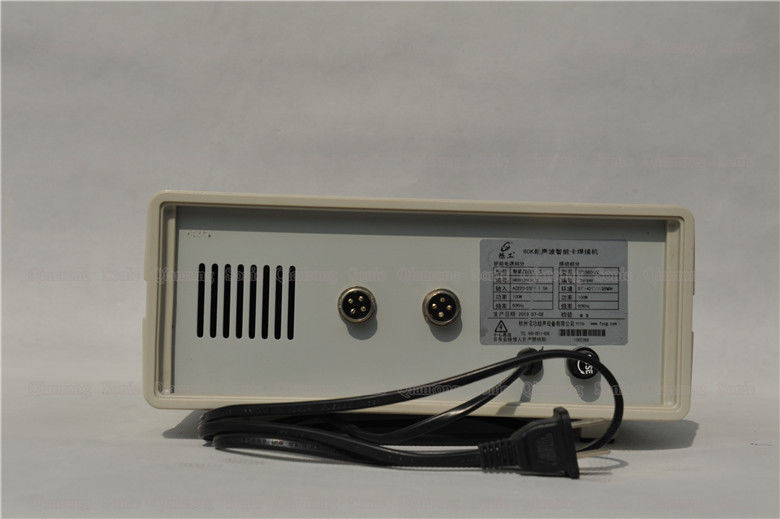

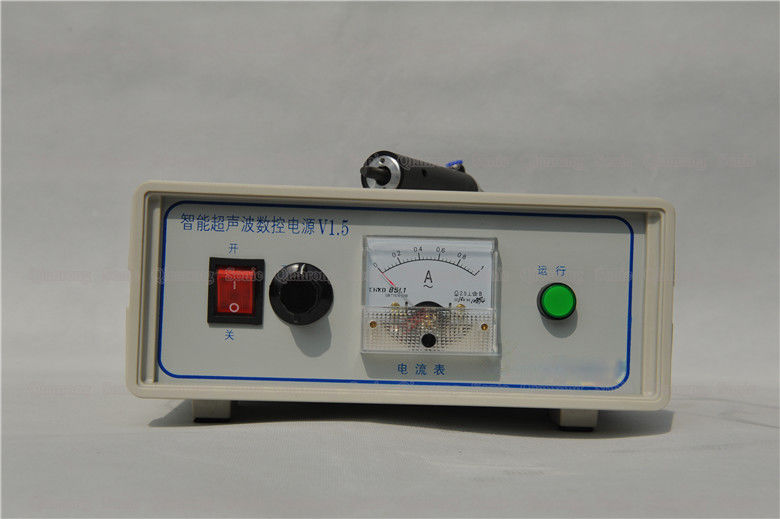

Ultrasonic Advanced Digital Generator 60Khz for Contactless Card Antenna
Description:
Ultrasonic technology has been widely used in the industrial field, and its core component ultrasonic generator, ultrasonic power technology, has also been developed for several generations. From the original tube oscillation circuit - semiconductor electronic oscillator - to the current intelligent digital circuit ultrasonic generator, the ultrasonic oscillation circuit is more and more advanced, reliable and intelligent. The Qianrong ultrasonic generator has automatic frequency tracking function and can automatically Adapt to the frequency of the ultrasonic mold (welding head), no frequency modulation, long-term working frequency will not be offset, Qianrong intelligent ultrasonic generator in plastic welding, woven cloth, non-woven continuous welding, slitting, edge sealing, shearing Cutting, plastic film sealing and other processes have been widely used.
Specifications:
| Item No | QR-WD60 |
| Power | 100W |
| Generator | Digital generator |
| Frequency | 60KHZ |
| Voltage | 220V or 110V |
| Size | 280*320*150mm |
| Application | Ultrasonic Wire Embedding Machine |
| Net weight | 5Kg |
Digital intelligent numerical control generator performance characteristics:
● Real-time monitoring: monitor the working frequency and power of high-power ultrasound systems.
● Parameter adjustment: The power, amplitude, and running time can be adjusted in real time according to different requirements.
● Auto-following: After the device has completed the initial setup, it can continue to work without having to adjust the generator.
● Automatic amplitude control: The drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.
● System protection: When the generator encounters special circumstances, it can automatically stop working and display alarm to protect the system from damage.
●Amplitude adjustment: The amplitude can be adjusted during the working process, and the adaptation range is 0%~100%.
●Automatic search frequency: It can automatically measure the optimal working frequency of the tool head and store it.
● Non-resonant state (forced vibration) work: It can work in non-resonant state according to customer requirements, suitable for special ultrasonic applications.
Ultrasonic Advanced Digital Generator 60Khz for Contactless Card Antenna
