110V Or 220V Vertical Ultrasonic Wave Generator Digital Power Source 2600w

110V Or 220V Vertical Ultrasonic Wave Generator Digital Power Source 2600w

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-WD15
Products Name:
Ultrasonic Power Supply
Frequency:
15KHZ
Power:
2600W
Voltage:
220V Or 110V
Generator:
Digital Generator
Application:
Plastic Welding Machine
Highlight:

ultrasonic sound wave generating device

,

ultrasonic signal generator

Product Description



110V Or 220V Vertical Ultrasonic Wave Generator Digital Power Source 2600w





Description:



Ultrasonic power source, also known as an ultrasonic generator, is a device for generating and providing ultrasonic energy to an ultrasonic transducer. Its purpose is to convert our mains (220V or 380V, 50Hz or 60Hz) into a high-frequency AC signal that can be matched with an ultrasonic transducer. This signal can be either a sinusoidal signal or a pulsed signal.





Specifications:



Item No QR-WD15
Power 2600W
Generator Digital generator
Frequency 15KHZ
Voltage 220V or 110V
Size 300*450*170mm
Application Plastic Welding Machine
Net weight 7Kg





Advantages of the intelligent ultrasonic generator:


1. The ultrasonic generator can monitor the operating frequency and power of the high-power ultrasonic system.
2. It can adjust various parameters in real time according to different requirements of users: power, amplitude, running time, etc.
3. Frequency fine-tuning: Adjust the frequency so that the ultrasonic transducer always works at its optimum state, and the efficiency is maximized, and the adjustment range is 2%.
4. Automatic follow-up: Once the device has been initially set up, it can be operated continuously without the need to adjust the generator.
5. Amplitude control: When the load changes during the operation of the transducer, the drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.
6. System protection: When the system works in an unsuitable operating environment, the generator will stop working and alarm display to protect the equipment from damage.
7. Amplitude adjustment: The amplitude can be increased or decreased instantaneously during the working process. The amplitude setting range is 50%~100%.
8. Automatic search frequency: The working frequency of the tool head can be automatically determined and stored.

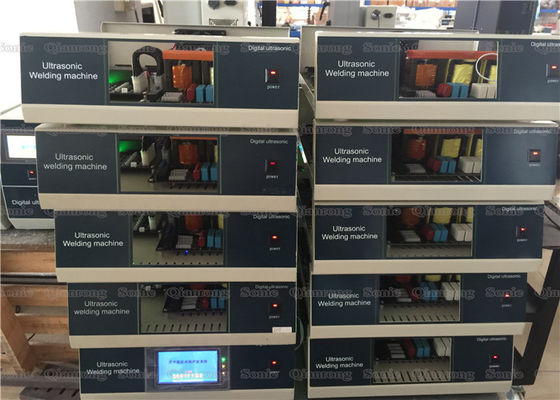

110V or 220V Vertical Ultrasonic Welding Digital Power Source 2600w 15Khz



110V Or 220V Vertical Ultrasonic Wave Generator Digital Power Source 2600w 0



110V Or 220V Vertical Ultrasonic Wave Generator Digital Power Source 2600w 1
