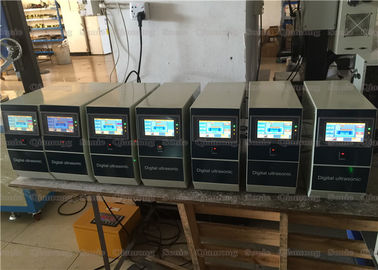

Microprocessor Anti - Interference Ultrasonic Wave Generator Ultrasound Power Supply

High Performance Microprocessor Anti-interference Ultrasound 20khz Power Supply

Description:

Ultrasonic power sources are often referred to as ultrasonic sources, ultrasonic generators, and ultrasonic electronics boxes. It is a major component of high power ultrasound systems. Its function is to generate a high-power high-frequency AC signal to drive the ultrasonic transducer to work. The high-quality driving power supply must ensure the stable and safe operation of the high-power ultrasonic system. At the same time, it must monitor the operating frequency, load power, capacitive reactance, impedance and other parameters of the transducer in real time, and can carry out power according to different needs of users. Adjustment of parameters such as amplitude and operation mode.

working principle:

An ultrasonic power source, also known as an ultrasonic generator, is a device for generating and providing ultrasonic energy to an ultrasonic transducer. Its purpose is to convert our mains (220V or 380V, 50Hz or 60Hz) into a high-frequency AC signal that can be matched with an ultrasonic transducer. This signal can be either a sinusoidal signal or a pulsed signal.

Specifications:

Digital intelligent numerical control generator performance characteristics:

● Real-time monitoring: monitor the working frequency and power of high-power ultrasound systems.

● Parameter adjustment: The power, amplitude, and running time can be adjusted in real time according to different requirements.

● Auto-following: After the device has completed the initial setup, it can continue to work without having to adjust the generator.

● Automatic amplitude control: The drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.

● System protection: When the generator encounters special circumstances, it can automatically stop working and display alarm to protect the system from damage.

●Amplitude adjustment: The amplitude can be adjusted during the working process, and the adaptation range is 0%~100%.

●Automatic search frequency: It can automatically measure the optimal working frequency of the tool head and store it.

● Non-resonant state (forced vibration) work: It can work in non-resonant state according to customer requirements, suitable for special ultrasonic applications.
