2600W High Frequency 15Khz Ultrasonic Sound Wave Generating Device Adjustable Power
  • name
  • name
  • name
  • name

2600W High Frequency 15Khz Ultrasonic Sound Wave Generating Device Adjustable Power

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-WD15Q
Products Name:
Ultrasonic Power Supply
Frequency:
15KHZ
Power:
2600W
Voltage:
220V Or 110V
Generator:
Digital Generator
Application:
Plastic Welding Machine
Highlight:

ultrasonic sound wave generating device

,

ultrasonic signal generator

Product Description



2600W High Frequency 15Khz Ultrasonic Sound Wave Generating Device with Adjustable Power





Description:



Ultrasonic power sources are often referred to as ultrasonic sources, ultrasonic generators, and ultrasonic electronics boxes. It is a major component of high power ultrasound systems. Its function is to generate a high-power high-frequency AC signal to drive the ultrasonic transducer to work. The high-quality driving power supply must ensure the stable and safe operation of the high-power ultrasonic system. At the same time, it must monitor the operating frequency, load power, capacitive reactance, impedance and other parameters of the transducer in real time, and can carry out power according to different needs of users. Adjustment of parameters such as amplitude and operation mode.





Specifications:



Item No QR-WD15Q
Power 2600W
Generator Digital generator
Frequency 15KHZ
Voltage 220V or 110V
Size 300*450*170mm
Application Plastic Welding Machine
Net weight 7Kg





Advantages:



1. Real time frequency automatic tracking display

2. Welding modes: time, energy, and grounding

3. Amplitude division function

4. Welding amplitude 10%-100% adjustable (1% accuracy)

5. Amplitude compensation

6. Mold impedabce analysis + protection

7. Overload protection

8. Voltage Protection (input)

9. Transducer voltage protection

11. 485 Communication

12. 4 core 32 bit processor





When following cases occurs, professional engineer can maintain in the outage condition.

  • Liquid or melt electric conduction parts inside generator.
  • Connecting cable of generator is loose.
  • Generator installing loosely.
  • Content shows in generator differ from standard of normal working.





2600W High Frequency 15Khz Ultrasonic Sound Wave Generating Device with Adjustable Power

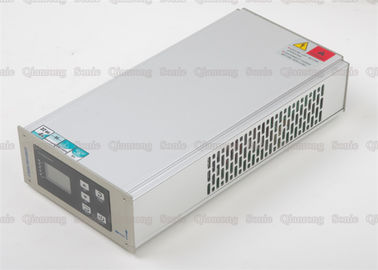

2600W High Frequency 15Khz Ultrasonic Sound Wave Generating Device Adjustable Power 0

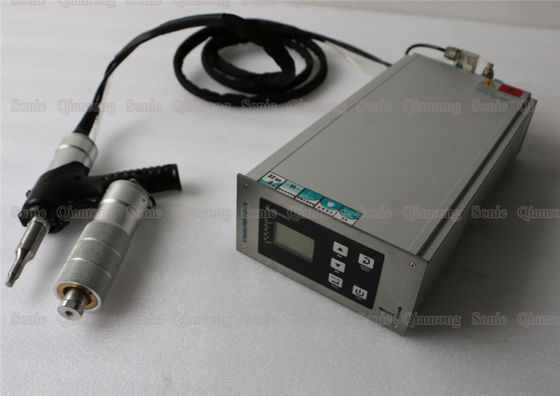

2600W High Frequency 15Khz Ultrasonic Sound Wave Generating Device Adjustable Power 1
