Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-WA40C |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Power Supply | Frequency: | 40KHZ |
|---|---|---|---|
| Power: | 800W | Voltage: | 220V Or 110V |
| Generator: | Analog Generator | Application: | Ultrasonic Rubber Cutter |
| High Light: | ultrasonic sound wave generating device,ultrasonic signal generator |
||

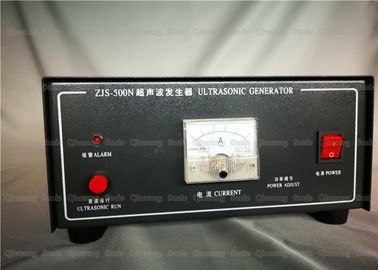

40Khz 800w Ultrasonic Analog Generator For Driving Rubber Cutter Knife
Description:
Ultrasonic generators, also known as ultrasonic power supplies, electronic boxes, and ultrasonic controllers, are important components of high-power ultrasound systems. The ultrasonic generator is divided into an analog generator and a numerical control generator.
The 40K ultrasonic rubber cutting knife utilizes the energy of ultrasonic waves to melt the localized material of the material to be cut, so as to easily cut resin, rubber, non-woven fabric, film, various overlapping composite materials and food. The principle of ultrasonic cutting knives is completely different from the traditional pressure cutting.
Traditional cutting uses a sharp-edged tool that concentrates very much pressure on the cutting edge and presses against the material being cut. When the pressure exceeds the shear strength of the material being cut, the molecular bonding of the material is pulled apart to effect the cutting. Since the material is rigidly pulled apart by strong pressure, the cutting edge of the cutting tool must be very sharp, and the material itself must withstand relatively large pressures. Therefore, the soft, elastic material has a poor cutting effect and is more difficult for the viscous material.
Specifications:
| Item No | QR-WA40C |
| Power | 800W |
| Generator | Analog generator |
| Frequency | 40KHZ |
| Voltage | 220V or 110V |
| Size | 430*250*2000mm |
| Application | Ultrasonic Rubber Cutter |
| Net weight | 8Kg |
Advantages:
1. High stability: When the ultrasonic generator works, it generates electromagnetic vibration and is converted into mechanical oscillation and transmitted to the cutting knives and cutting materials. The mechanical cutting is performed, so no sharp cutting edge is required, and the blade wear is small, and at the same time The cutter head can be replaced by itself.
2. Safety and environmental protection: When the ultrasonic knife is cut, the temperature of the cutter head is lower than 50 degrees Celsius, and no smoke and odor will be generated, which eliminates the danger of injury and fire during cutting.
3. Cutting neatly: Since the ultrasonic wave is cut by high-frequency vibration, the material will not adhere to the surface of the blade, only a small pressure is required for cutting, and the fragile and soft materials are not deformed and worn, and the fabric is cut and automatically sealed. Will not cause chipping.
4. Simple operation: The cutting knife is connected to the ultrasonic generator, the generator is connected to the 220V mains, and the switch can be cut to support the hand-held and machine-mounted cutting.
Wide range of applications: rubber, vulcanized latex, non-vulcanized latex, food and various textile materials, plastic sheets can be ultrasonically cut.
High Frequency 40Khz 800w Ultrasonic Analog Generator for Driving Rubber Cutter Knife
