Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-WD35W |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in wooden case |
Delivery Time: | 7 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Products Name: | Ultrasonic Power Supply | Frequency: | 35KHZ |
---|---|---|---|
Power: | 800W | Voltage: | 220V Or 110V |
Generator: | Digital Generator | Application: | Plastic Welding Machine |
High Light: | ultrasonic sound wave generating device,ultrasonic signal generator |

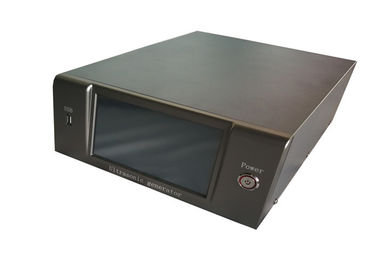

Faster Frequency Control Speed System 35Khz Ultrasonic Driver for Spot Welder
Description:
Ultrasonic generator is a device that converts utility power into a high-frequency alternating current corresponding to a transducer to drive a transducer, and is an important component of a high-power ultrasonic system. It can also be called an electronic device. Box, ultrasonic drive power, ultrasonic controller. The frequency is from 15khz to 120khz. (Some frequencies need to be customized)
Qianrong Ultrasonic Equipment is a professional manufacturer that develops, manufactures and sells high-power ultrasonic core components and complete sets of equipment, focusing on non-standardized power ultrasound applications.
Specifications:
Item No | QR-WD35W |
Power | 800W |
Generator | Digital generator |
Frequency | 35KHZ |
Voltage | 220V or 110V |
Size | 460*420*210mm |
Application | Plastic Welding Machine |
Net weight | 10Kg |
Comparing with the old system, we have further upgraded the entire system.
1. The system resonance is changed to the anti-harmonic point, which has better control of the transducer temperature.
2. Frequency control speed is faster than before
3. The power measurement circuit only calculates the power of the transducer, and the power consumption of the power box is not counted.
4. Higher power accuracy, chip AD is 16 bits, the maximum value is 65535, (Previous system chip AD is 12bits, the maximum value is 4095). the power measurement is reduced from the previous 10% error to 3%
5. Motherboard design power capacity 6000W, (the power capacity of previous system was 4000w)
6. Magnetic scale adopts differential signal, anti-interference effect is good, (Previous system was using single-ended signal)
7. Better design, standard display 7 inches.
8. The output control line has short-circuit protection and will not burn the electric box due to wiring errors.
