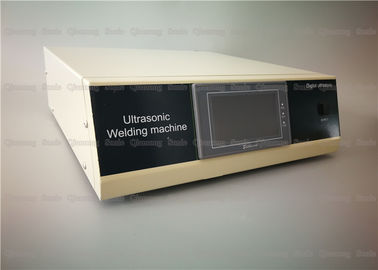

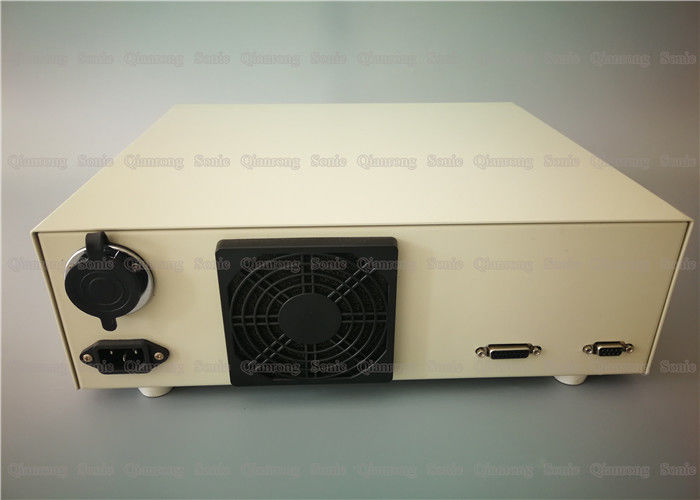

15Khz 2600w Ultrasonic Wave Generator Driver For Matching Different Welding Converter

15Khz 2600w Ultrasonic Driver for Matching Different Welding Converter

Description:

QRsonic can supply ultrasonic analog generator and digital generator with diffrent frequency from 15khz to 70khz. Its function is to generate a high-power high-frequency AC signal to drive the ultrasonic transducer to work. The high-quality driving power supply must ensure the stable and safe operation of the high-power ultrasonic system. At the same time, it must monitor the operating frequency, load power, capacitive reactance, impedance and other parameters of the transducer in real time, and can carry out power according to different needs of users. Adjustment of parameters such as amplitude and operation mode.

At present, high-power ultrasonic devices are mainly used for welding and industrial cleaning of thermoplastics, but in the food and textile industry, petroleum industry, water treatment, chemical industry, sewage sludge treatment, metal welding and drilling, light industry, anti-scaling, etc. There is also a broad application prospect.

Specifications:

Advantage:

Digital control instead of analog control can eliminate the shortcomings that conventional analog regulators such as temperature drift are difficult to overcome, which is beneficial to parameter tuning and variable parameter adjustment, facilitating the change of program software, adjusting control schemes and implementing various new control strategies. At the same time, the number of components can be reduced, the hardware structure can be simplified, and the system reliability can be improved. In addition, automatic storage of operation data and automatic fault diagnosis can be realized, which helps to realize the intelligent operation of the power electronic device.

● Real-time monitoring: monitor the working frequency and power of high-power ultrasound systems.

● Parameter adjustment: The power, amplitude, and running time can be adjusted in real time according to different requirements.

● Auto-following: After the device has completed the initial setup, it can continue to work without having to adjust the generator.

● Automatic amplitude control: The drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.

● System protection: When the generator encounters special circumstances, it can automatically stop working and display alarm to protect the system from damage.

●Amplitude adjustment: The amplitude can be adjusted during the working process, and the adaptation range is 0%~100%.

●Automatic search frequency: It can automatically measure the optimal working frequency of the tool head and store it.

● Non-resonant state (forced vibration) work: It can work in non-resonant state according to customer requirements, suitable for special ultrasonic applications.

15Khz 2600w Ultrasonic Driver for Matching Different Welding Converter
