| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-2020-IC |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Inner Circle Indium Coating Machine | Frquency: | 20Khz |
|---|---|---|---|
| Max Power: | 2000W | Temperature Range: | 150-400℃ |
| Working Amplitude: | 3-15μm | Input Voltage: | 20V± 10%，50/60Hz，8A |
| Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
| High Light: | Petroleum Ultrasonic Indium Coating Machine,Chemical Industries Ultrasonic Indium Coating Machine,20Khz Ultrasonic Indium Coating Machine |
||

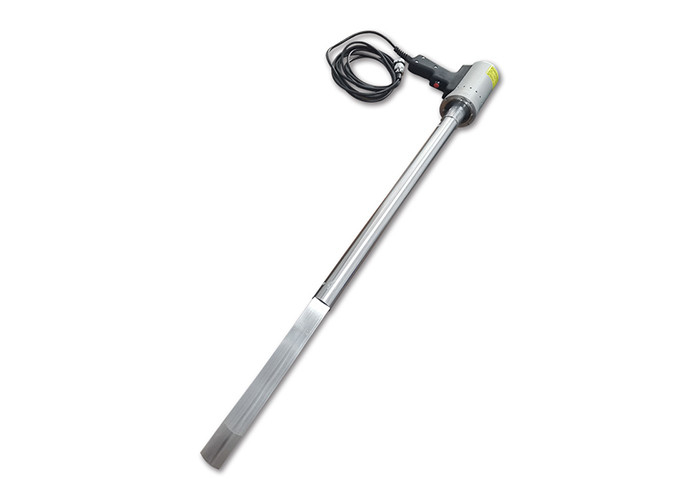

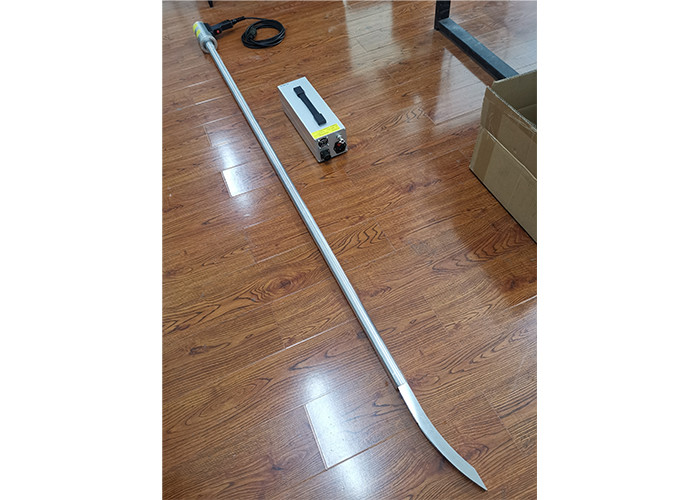

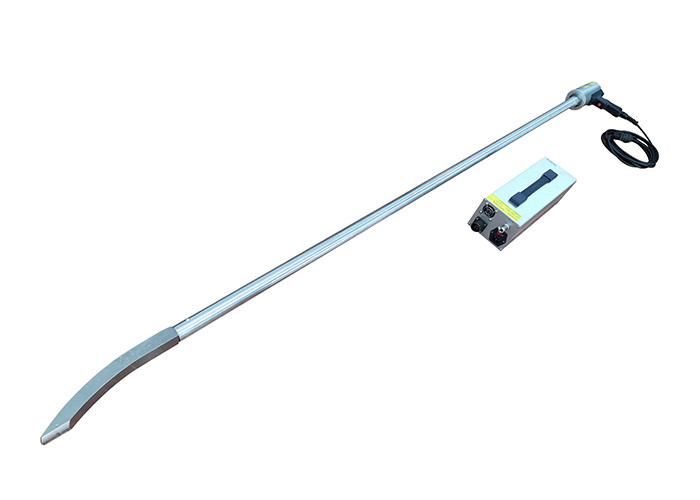

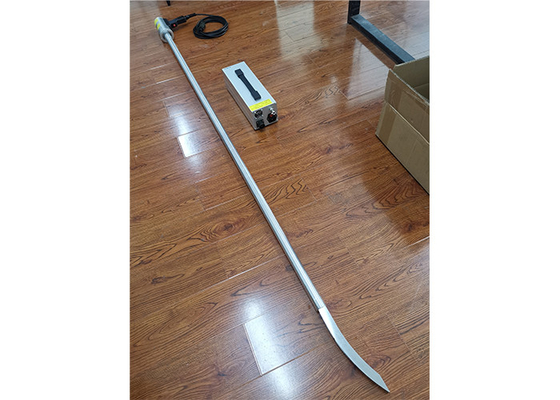

20Khz Bending Ultrasonic Inner Circle Indium Coating Machine for Petroleum and Chemical Industries
Description:
In the ultrasonic inner circle indium coating machine, adjusting the coating parameters is crucial for achieving good coating results. These parameters include the frequency, amplitude, coating speed, coating thickness, and viscosity of the coating solution of ultrasonic vibration. By adjusting these parameters, it is possible to achieve inner circle coating of different types of objects and ensure the quality and uniformity of the coating.
Parameters:
| Model | FSY-2020-IC |
| Name | 20Khz Ultrasonic Inner Indium Coating |
| Frequency | 20Khz |
| Power | 500-2500w |
| Temperature Range | 150-400℃ |
| Working Amplitude | 3-15μm |
| Input Voltage | 220V±10%,50/60Hz, 8A |
| Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
| Product Type | Planar Indium Coating | Inner Hole Indium Coating | Outer Circle Coated with Indium | |
| Rated Power | 100-1000W | 500-2500W | 300-1500W | |
| Frequency | 20,28,30KHz | 20KHz | 20KHZ | |
| Temperature Range | 150-400℃ | |||
| Working Amplitude | 3-20μm | 3-15μm | 3-20μm | |
| Input Voltage | 220V± 10%,50/60Hz,4A | 220V± 10%,50/60Hz,8A | 220V± 10%,50/60Hz,6A | |
| Indium Coated Head Material | Titanium Alloy (other materials can be customized) | |||
| Working Mode | Intermittent/Continuous switchable | |||
| Control Mode | Manual Button or External Control | |||
| Composition Accessories | Ultrasonic Generator,Transducer, Specialized Amplitude Lever, Indium Coated Head, Shell, etc | |||
| Ultrasonic Generator | Size | 180*120*360mm | ||
| Weight | 5kg | |||
| Characteristic | Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day | |||

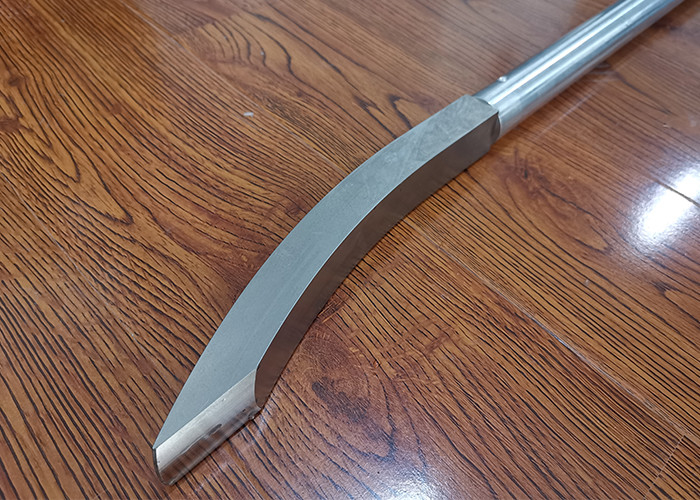

| Vibration Head Size | Φ16cap shaped round head,50*10mmsquare head | 50*30mm(inner diameter of curved fitting pipe) | 80*20mm (outer diameter of curved fitting pipe) | |
| Processable Materials | ITO glass, aluminum, molybdenum, copper, indium, etc | |||
| Application Direction | Flat, inner hole, outer circle, etc | |||
Reference factors:
1. Coating technology: Ultrasonic inner circle indium coating machines usually use spray or brush coating technology for coating. Spray coating technology can spray coating liquid onto the inner surface of an object through a nozzle or spray gun, while brush coating technology uses a coating brush to apply the coating liquid onto the inner surface of the object. The selection of appropriate coating techniques depends on specific application requirements and the geometric shape of the object.
2. Coating parameters: In the ultrasonic inner circle indium coating machine, adjusting the coating parameters is crucial for achieving good coating results. These parameters include the frequency, amplitude, coating speed, coating thickness, and viscosity of the coating solution of ultrasonic vibration. By adjusting these parameters, it is possible to achieve inner circle coating of different types of objects and ensure the quality and uniformity of the coating.
3. Material selection: The ultrasonic inner circle indium coating machine can be used for coating various materials, including metals, plastics, ceramics, etc. The indium material in the coating solution can be indium powder or indium compound, which can be selected according to specific application requirements and requirements.
4. Application field: Ultrasonic inner circle indium coating machine has been applied in many fields. For example, in the petroleum and chemical industries, it can be used for internal coating of pipes and fittings to improve their corrosion resistance. In the automotive manufacturing industry, it can be applied to the inner circle coating of engine components to improve their wear resistance and high temperature resistance. In addition, ultrasonic inner circle indium coating machines can also be used in electronic components, aerospace and other fields.
5. Coating quality control: In order to ensure consistency and compliance of coating quality, ultrasonic inner circle indium coating machines are usually equipped with a coating quality control system. The system can monitor parameters such as coating fluid flow rate, coating thickness, and coating uniformity, and provide real-time feedback and adjustment to ensure the quality and stability of the coating.
