Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSY-2020-IC |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Inner Circle Indium Coating Machine | Frquency: | 20Khz |
|---|---|---|---|
| Max Power: | 2000W | Temperature Range: | 150-400℃ |
| Working Amplitude: | 3-15μm | Input Voltage: | 20V± 10%，50/60Hz，8A |
| Indium Coated Head Material: | Titanium Alloy | Application Direction Flat, Inner Hole, Outer Circle, Etc: | Flat, Inner Hole, Outer Circle, Etc |
| High Light: | 20Khz Ultrasonic Indium Coating,Environmentally Ultrasonic Indium Coating |
||

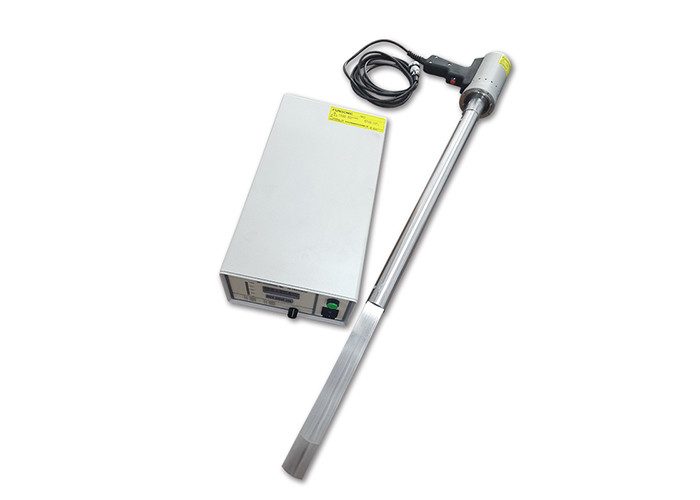

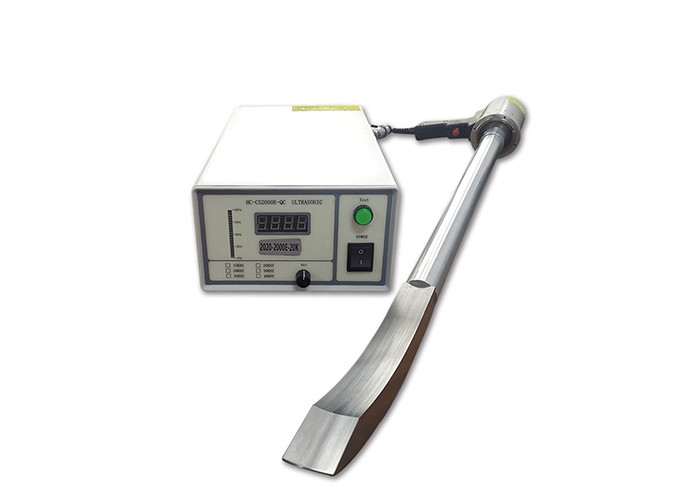

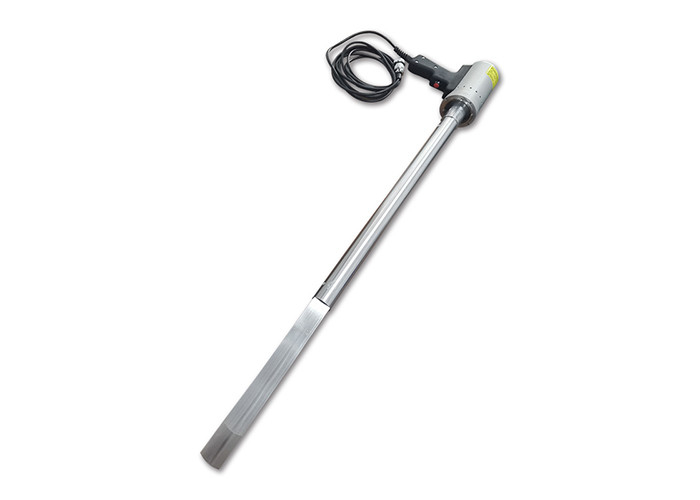

Environmentally 20Khz Ultrasonic Indium Coating Inner Target Cylinder Pipe
Description:
Ultrasonic inner circle indium coating machine is a device that uses ultrasonic vibration technology to coat indium material on the inner surface of an object. It is suitable for coating the inner surface of cylindrical or circular objects, such as pipes, fittings, holes, etc.
Parameters:
| Model | FSY-2020-IC |
| Name | 20Khz Ultrasonic Inner Indium Coating |
| Frequency | 20Khz |
| Power | 500-2500w |
| Temperature Range | 150-400℃ |
| Working Amplitude | 3-15μm |
| Input Voltage | 220V±10%,50/60Hz, 8A |
| Control Mode | Support I/O or 485 communication control, can be integrated with automation operations |
| Product Type | Planar Indium Coating | Inner Hole Indium Coating | Outer Circle Coated with Indium | |
| Rated Power | 100-1000W | 500-2500W | 300-1500W | |
| Frequency | 20,28,30KHz | 20KHz | 20KHZ | |
| Temperature Range | 150-400℃ | |||
| Working Amplitude | 3-20μm | 3-15μm | 3-20μm | |
| Input Voltage | 220V± 10%,50/60Hz,4A | 220V± 10%,50/60Hz,8A | 220V± 10%,50/60Hz,6A | |
| Indium Coated Head Material | Titanium Alloy (other materials can be customized) | |||
| Working Mode | Intermittent/Continuous switchable | |||
| Control Mode | Manual Button or External Control | |||
| Composition Accessories | Ultrasonic Generator,Transducer, Specialized Amplitude Lever, Indium Coated Head, Shell, etc | |||
| Ultrasonic Generator | Size | 180*120*360mm | ||
| Weight | 5kg | |||
| Characteristic | Fully digital frequency tracking system, temperature automatic adjustment system, capable of working 24 hours a day | |||

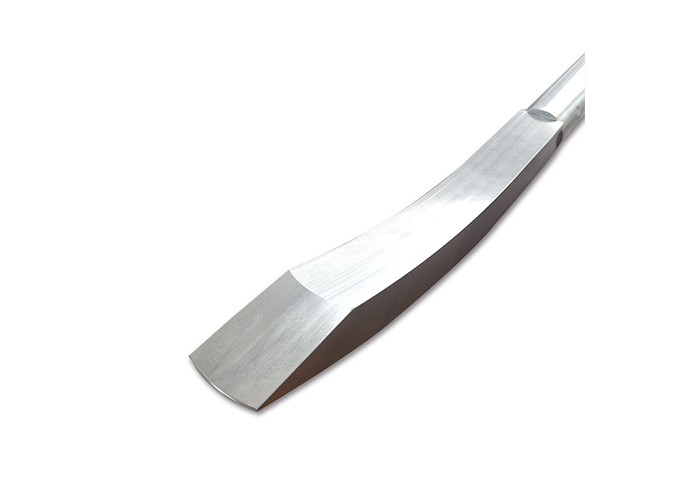

| Vibration Head Size | Φ16cap shaped round head,50*10mmsquare head | 50*30mm(inner diameter of curved fitting pipe) | 80*20mm (outer diameter of curved fitting pipe) | |
| Processable Materials | ITO glass, aluminum, molybdenum, copper, indium, etc | |||
| Application Direction | Flat, inner hole, outer circle, etc | |||
Advantages and characteristics:
1. Uniformity: Ultrasonic vibration and eddy current effects can achieve uniform dispersion of indium materials in the coating solution and uniform coating on the inner circular surface of objects, ensuring consistency and high quality of the coating.
2. Efficiency: The ultrasonic inner circle indium coating machine has a fast coating speed and efficient coating performance. Ultrasonic vibration can promote the formation and adhesion of droplets in the coating solution, achieving a fast and efficient coating process.
3. Widely applicable: The ultrasonic inner circle coating machine is suitable for inner circle coating of cylindrical objects with different diameters. It can be applied to the inner circle coating of various materials, such as metal pipes, plastic fittings, holes, etc.
4. Easy to operate and control: Ultrasonic inner circle indium coating machines usually have a simple and easy-to-use operating interface and control system. Operators can easily adjust coating parameters, such as the frequency of ultrasonic vibration, coating speed, and coating thickness, to meet different coating requirements
Environmentally 20Khz Ultrasonic Indium Coating Inner Target Cylinder Pipe
