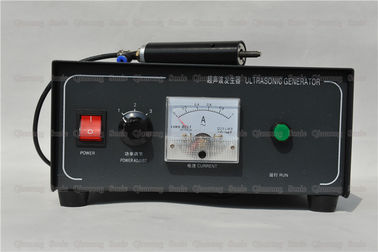

High Performance Ultrasonic Hand Welder

High Performance Ultrasonic Hand Welder

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W60A
Cooling Compressor Air:
>0.1MPa/unit
Products Name:
Ultrasonic Wire Embedding Machine
Generator:
Analog Generator
Frequency:
60KHZ
Power:
100w
Voltage:
220V
Protective Sleeve:
φ25*110
Welding Head:
Aperture 0.mor 0.5mm
Highlight:

ultrasonic bonding machine

,

portable ultrasonic welder

,

High Performance Ultrasonic Hand Welder

Product Description

High Performance 60Khz Ultrasonic Copper Metal Antenna Welding Components





Description:



Ultrasonic smart card welder, Which is also known as smart card antenna welding machine, smart card spot welding machine, smart card implantable antenna machine, is a professional device for the production of smart cards/ID cards, widely used in welding sheet positioning, antenna implanted. In recent years, it is an important application of ultrasonic welding.





Specifications:



Type QR-W60A
Frequency(KHz) 60KHz
Trigger External control or manual control
welder head wear-resisting alloy steel above HRC55°
Threading hole Φ0.m or Φ0.5mm
Power code 2M or 5M
Generator

Digital generator V6.6 or analog

generator ZJS-100

Generator Size

280*320*140mm(V6.6)

280*320*150mm(ZJS-100)

Cover dimension Φ25X100mm
Cover material Nylon or aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Product advantages of 60khz Ultrasonic Card Embedding Machine:



The ultrasonic card embedding welding machine can directly weld the enameled wire, and the soldered joint has the following advantages:

1. The solder joint is firm and can eliminate the solder joint technically.

2. The solder joints are the same size and consistent.

3. The solder joint is small, does not increase the quality of the coil, and is easy to press the package.

4. Elimination of the immersion tin process before welding, eliminating the need for an operating staff.

5. After welding, the welding of a product is faster than using a soldering iron.

6. The production process will not produce waste gas waste pollution.

7. Ultrasonic selects the frequency of 60KHz, the welding speed is fast, and the production cost is low.





High Performance 60Khz Ultrasonic Copper Metal Antenna Welding Components



High Performance Ultrasonic Hand Welder 0





High Performance Ultrasonic Hand Welder 1
