Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-6015-4BZ-LS |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in carton |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000pcs per month |
Products Name: | Ultrasonic Oscillator | Output Power: | 4200w |
---|---|---|---|
Frequency: | 15khz | Ceramic Disc Diameter: | 60mm |
Qty Of Ceramic Discs: | 8pcs | Capacitance: | 18-22nf |
Connected Screw: | M16*1 | Application: | Ultrasonic Plastic Welding Machine |
High Light: | 4200w small ultrasound transducer,Double Welding Ultrasonic Vibration Transducer,Double Welding Ultrasonic Oscillator |

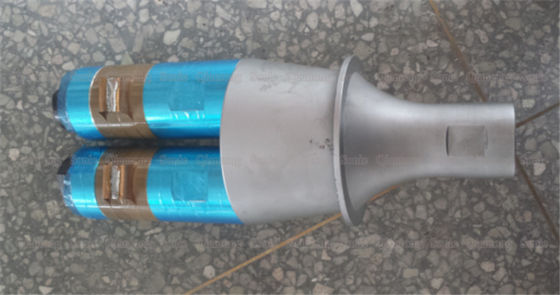

Double Welding Transducers with One Booster with 15Khz 4200w Output Power
Description:
The ultrasonic vibrator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The piezoelectric effect of piezoelectric ceramics realizes the mutual conversion of electrical energy and mechanical energy (acoustic vibration), and the device is amplified by the acoustic impedance matching front and rear radiation cover blocks.
Specifications:
Model | QR-6015-4BZ-LS |
Frequency | 15 khz |
Output power | 4200 watt |
Joint bolt | M16*1 |
Ceramic disc Diameter | 60mm |
Qty of ceramic discs | 8pcs |
Capacitance | 18-22nf |
Application | Plastic welding machine |
Ultrasonic welding speed analysis:
How fast is the speed of ultrasonic welding?
Many people will ask how fast your ultrasonic speed is. In fact, this is an unprofessional question. First of all, you need to know the principle of ultrasonic welding. When ultrasonic welding is performed by high frequency mechanical vibration friction Thermal energy melts and bonds the objects that need to be welded together. A set of ultrasonic systems is divided into ultrasonic generators, ultrasonic transducers, and ultrasonic transducers. The generator is the core part of the device that generates high-frequency electric energy, and the ultrasonic transducer converts the high-frequency electric energy into high-frequency mechanical energy for the energy conversion device, and the ultrasonic die functions as a conduction. Ultra-wave generators are all continuously waved, and can also be controlled by a control panel to generate waves for a period of time. For example, ultrasonic plastic welding machines are mostly controlled by the latter. For example, some plastic bag packaging machines, non-woven handbag machines, non-woven mask machines, activated carbon packaging machines, etc. all use ultrasonic systems, and the ultrasonic systems used at this time are mostly continuous wave systems, one ultrasonic wave occurs. The electric box plus a transducer and die form a complete ultrasonic system that can be added to these large machines. So how fast is the ultrasonic plastic welding machine and the ultrasonic system installed on the automated machine? It has been said that the ultrasonic wave can be continuously waved. Then the speed depends on your material and your welding area. For example, if the ultrasonic plastic welding machine reaches a certain pressure after the upper mold is pressed, it will start to wave. The length of this wave depends on the area of the welding and the direct material relationship. This welding time is adjustable. It can be 1S or 8S. The welding time is subject to the best welding results. At the same time, the ultrasonic power problem should also be considered, and the area of the small power welding is naturally small.
