High Power Small Ultrasound Transducer With Booster For Mask Cloth Fabric Sealing
  • name
  • name
  • name
  • name

High Power Small Ultrasound Transducer With Booster For Mask Cloth Fabric Sealing

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4BZ-BZB
Products Name:
Small Ultrasound Transducer
Output Power:
1500w
Frequency:
20khz
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
11-16nf
Connected Screw:
3/8-24UNF
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic vibration transducer

,

high power ultrasonic emitter

Product Description

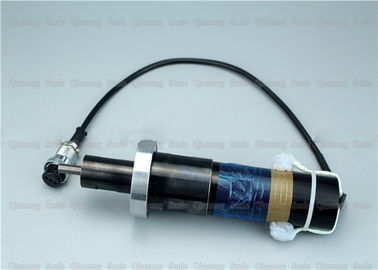

High Power 1500w Ultrasound Black Transducer with Booster for Mask Cloth Fabric Sealing



Description:



The ultrasonic vibrator is composed of an ultrasonic transducer and a horn. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. The main function of ultrasonic horn in vibration system is to amplify the mass displacement or velocity of mechanical vibration and concentrate ultrasonic energy on a small area. It is called the ultrasonic shifting lever or the ultrasonic concentrator.

The non-woven masks currently on the market are basically produced by ultrasonic mask machines. According to the shape, the non-woven masks mainly include non-woven inner ear masks, non-woven outer ear masks, non-woven strap masks, non-woven Cup masks, non-woven folding masks, non-woven duckbill masks, etc. These non-woven masks are produced by corresponding ultrasonic mask machines. The non-woven outer ear band mask is produced by two machines, the ultrasonic mask body machine and the ultrasonic mask outer ear band machine.





Specifications:



Model QR-5020-4BZ-BZB
Frequency 20khz
Output power 1500 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-16nf
Application Plastic welding machine

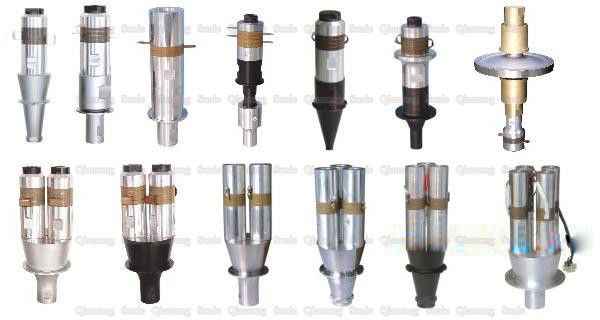

Parameters:



Item No.



Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



 Capacitance

Input power (W)


Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100





High Power 1500w Ultrasound Black Transducer with Booster for Mask Cloth Fabric Sealing



High Power Small Ultrasound Transducer With Booster For Mask Cloth Fabric Sealing 0



High Power Small Ultrasound Transducer With Booster For Mask Cloth Fabric Sealing 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
