Smart IC Card Antenna Implanter Ultrasonic Vibration Embedding In Sheet Welding Positioning
  • name
  • name
  • name
  • name

Smart IC Card Antenna Implanter Ultrasonic Vibration Embedding In Sheet Welding Positioning

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-1560-2BZ-BJ
Products Name:
Ultrasonic Oscillator
Output Power:
100w
Frequency:
60khz
Ceramic Disc Diameter:
15mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
0.7-0.86nf
Highlight:

ultrasonic vibration transducer

,

high power ultrasonic emitter

Product Description



Smart IC Card Antenna Implanter 60Khz Ultrasonic Embedding in Sheet Welding Positioning





Description:



The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.



The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. Ultrasonic horn is a passive device that does not generate vibration. It only changes the amplitude of the vibration input from the ultrasonic transducer and then transmits it. Impedance transformation.





Specifications:



Model QR-1560-2BZ-BJ
Frequency 60khz
Output power 100 watt
Ceramic disc Diameter 15mm
Qty of ceramic discs 2pcs
Capacitance 0.7-0.85nf
Application Ultrasonic Card Embedding Machine



Item No.



Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



 Capacitance

Input power (W)


Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100





Common fault :



1. The ultrasonic vibrator should be placed in a dry place to prevent the ultrasonic vibration from vibrating the mover, which will affect the normal work. If the ultrasonic vibrator is damp, put it into the oven and set it to dry at about 100 °C for 2 hours or use a hair dryer to remove the tide until the resistance is normal;

2. Ultrasonic vibrator degumming, ultrasonic vibrator degumming after the ultrasonic power output power is normal, but because the vibrator and vibration surface is not well connected, long-term work will burn the vibrator. Ultrasonic vibrator degumming generally require professional ultrasonic manufacturers to repair or replace.





Smart IC Card Antenna Implanter 60Khz Ultrasonic Embedding in Sheet Welding Positioning

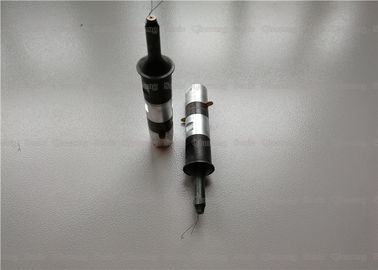

Smart IC Card Antenna Implanter Ultrasonic Vibration Embedding In Sheet Welding Positioning 0

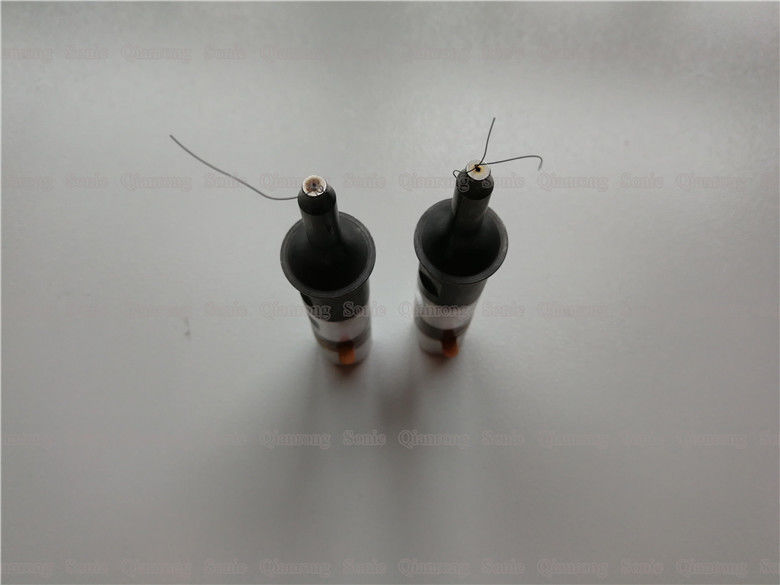

Smart IC Card Antenna Implanter Ultrasonic Vibration Embedding In Sheet Welding Positioning 1
