20khz Ultrasonic Transducer By Steel Booster
  • name
  • name
  • name
  • name

20khz Ultrasonic Transducer By Steel Booster

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4BZ-BJ
Products Name:
Ultrasonic Oscillator
Output Power:
1500w
Frequency:
20khz
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
11-16nf
Connected Screw:
3/8-24UNF
Application:
Ultrasonic Plastic Welding Machine
Highlight:

Steel Booster small ultrasound transducer

,

20khz high power ultrasonic emitter

,

Steel Booster Ultrasonic Oscillator

Product Description

20Khz 1500w Ultrasonic Welding Transducer with Steel Booster Vibration System





Description:



Ultrasonic vibrator, also known as ultrasonic vibrating head, ultrasonic Oscillator head, is a kind of ultrasonic transducer, which is the core component of ultrasonic cleaning machine. The whole of the ultrasonic transducer connected to the horn is called vibrator.





Specifications:



Model QR-5020-4BZ-BJ
Frequency 20khz
Output power 1500 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-16nf
Application Plastic welding machine





Ultrasonic vibrator features:


1. High performance: high mechanical Q value, high conversion efficiency and excellent quality
2. Ultrasonic vibrator transducer has large amplitude and superior performance
3. Ultrasonic vibrator transducer heat resistance: Piezoelectric ceramic material has good heat resistance, can expand the operating temperature range, and has high Q value, small resonance impedance, and low heat generation.
4. Ultrasonic vibrator transducer product appearance is neat, no rust, no obvious depressions and scratches





20Khz 1500w Ultrasonic Welding Transducer with Steel Booster Vibration System



20khz Ultrasonic Transducer By Steel Booster 0

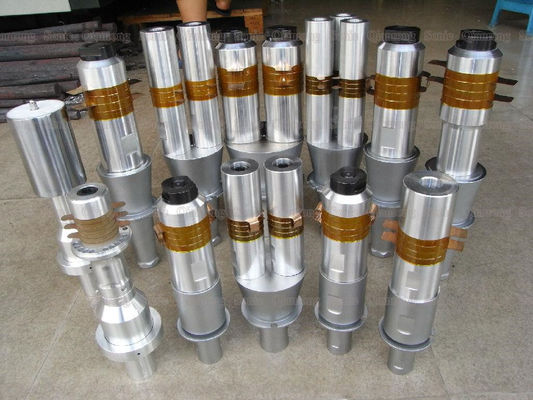

20khz Ultrasonic Transducer By Steel Booster 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
