| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 70KHZ |
|---|---|---|---|
| Power: | 50w | Voltage: | 220V |
| Protective Sleeve: | φ16*121mm | Welding Head: | Aperture 0.3mm Or 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Digital Generator |
| High Light: | ultrasonic bonding machine,portable ultrasonic welder |
||

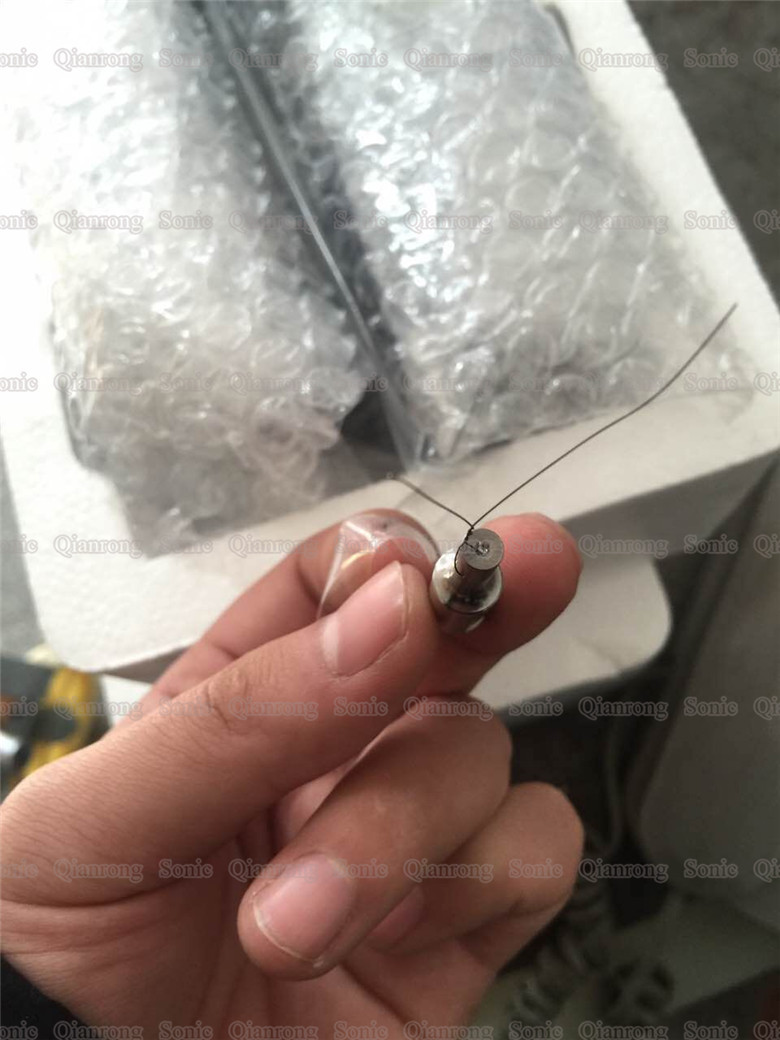

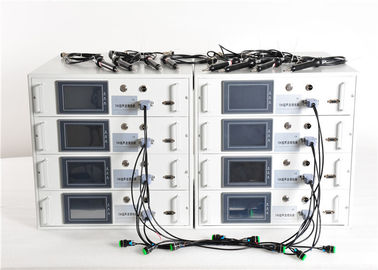

70Khz Ultrasonic Transducer with Booster Titanium Horn for Smart Card
Description:
The ultrasonic embedding device vibrates with ultrasonic waves at ultra-high frequency. By the conduction of the welding head and appropriate pressure, the metal parts (such as nuts and screws) are instantly squeezed into the reserved plastic holes and fixed at the set depth. . When finished, the tension and torque can be compared to the traditional strength of the mold, and the shortcomings of injection damage and slow injection are eliminated.
Specifications:
| Type | QR-W70D |
| Frequency(KHz) | 70KHz |
| Trigger | External control |
| welder head | Titanium Alloy Material |
| Threading hole | Φ0.3mm or Φ0.5mm |
| Power code | 5M |
| Generator | Digital generator |
| Generator Size | 155*265*170mm |
| Cover dimension | Φ16X121mm |
| Cover material | Aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0.3m/s |
| Thread fixed cycle | length 60000 m/s |
Principle:
The working principle of the ultrasonic embedding device is to convert the 50/60 Hz current into high-frequency alternating current through the ultrasonic generator, and then input the electric energy into the ultrasonic transducer to generate high-frequency mechanical motion, and then the mechanical movement can be changed through one set. The amplitude amplitude modulator device is transmitted to the welding head, and the welding head transmits the received vibration energy to the joint portion of the workpiece to be welded, in which the vibration energy is converted into heat energy by friction, the plastic is melted, and the wire is discharged in a short time. Buried in a plastic sheet.
Advantages:
Intelligent frequency search, extending the life of the buried wire 2-3 times.
No immersion in tin before soldering, reducing process and cost.
The matching power is powerful, and the embedding head and the ultrasonic generator can be interchanged at will.
Multi-point power control, ultra-high speed embedding, good consistency.
It solves the problem of heat generation of the device when embedding, and can work for a long time.
Standardized design can directly replace imported products, environmental protection and safety.
70Khz Ultrasonic Transducer with Booster Titanium Horn for Smart Card
