Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W70D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 70KHZ |
|---|---|---|---|
| Power: | 50w | Voltage: | 220V |
| Protective Sleeve: | φ16*121mm | Welding Head: | Aperture 0.m Or 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Digital Generator |
| Highlight: | ultrasonic spot welding machine,portable ultrasonic welder |
||
Suitable for 0.8mm 0.15mm Copper Wire Antenna in Plastic Card by 70Khz Ultrasonic
Description:

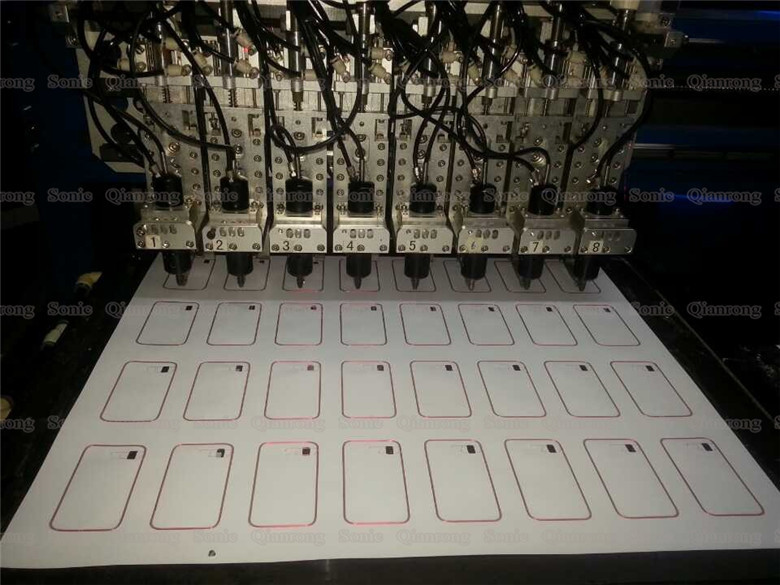

Ultrasonic embedding device, which is specially used for high-speed embedding of non-contact smart cards, is a key component to improve production efficiency. Ultrasonic smart card welder, Which is also known as smart card antenna welding machine, smart card spot welding machine, smart card implantable antenna machine, is a professional device for the production of smart cards/ID cards, widely used in welding sheet positioning, antenna implanted. In recent years, it is an important application of ultrasonic welding.
Specifications:
| Type | QR-W70D |
| Frequency(KHz) | 70KHz |
| Trigger | External control |
| welder head | Titanium Alloy Material |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 5M |

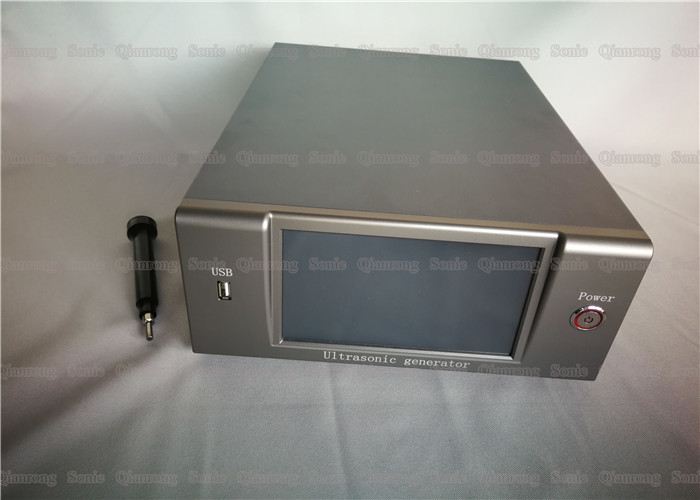

| Generator | Digital generator |
| Generator Size | 155*265*170mm |
| Cover dimension | Φ16X121mm |
| Cover material | Aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Features:
1. Ultrasonic planting system is equipped with a new version of intelligent CNC generator, which is automatically completed by frequency search and frequency chasing.
2. The 70K tool head has a hole diameter of 0.m and 0.5mm for users of different needs.
3. All tool head threading hole outlets and welding surface circumference are rounded to avoid wire breakage.
4. Ultrasonic transducer protection shell material is made of aluminum alloy, which has good heat dissipation, strong pressure resistance and good wear resistance.
5. In the ultrasonic system, the transducer and tool head are strictly calibrated before leaving the factory. Do not disassemble and disassemble them. After disassembling, the transducer may be damaged.
6. If you need to rework the tool head or other special requirements, please inform the company in advance, we can customize it for you before leaving the factory.
Suitable for 0.8mm 0.15mm Copper Wire Antenna in Plastic Card by 70Khz Ultrasonic
