70khz Embedding Ultrasonic Welding Equipment Simultaneously 8 Heads Working Together
  • name
  • name
  • name
  • name

70khz Embedding Ultrasonic Welding Equipment Simultaneously 8 Heads Working Together

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W70D
Products Name:
Ultrasonic Wire Embedding Machine
Frequency:
70KHZ
Power:
50w
Voltage:
220V
Protective Sleeve:
φ16*121mm
Welding Head:
Aperture 0.m Or 0.5mm
Cooling Compressor Air:
＞0.1MPa/unit
Generator:
Digital Generator
Highlight:

ultrasonic spot welding machine

,

ultrasonic bonding machine

Product Description

Simultaneously 8 Heads Working together by 70khz Ultrasonic Embedding Equipment





Description:



Ultrasonic welding is classified into the direction of the weldment according to the ultrasonic elastic vibration energy. The basic types of ultrasonic welding can be divided into two categories. The vibration energy is transmitted tangentially to the surface of the weldment to cause relative friction at the welding interface. This method is suitable for welding metal materials. Common metal ultrasonic welding can be divided into spot welding, ring welding, seam welding and implanting. Ultrasonic wire embedding uses ultrasonic implant technology.





Specifications:



Type QR-W70D
Frequency(KHz) 70KHz
Trigger External control
welder head Titanium Alloy Material
Threading hole Φ0.m or Φ0.5mm
Power code 5M
Generator Digital generator
Generator Size 155*265*170mm
Cover dimension Φ16X121mm
Cover material Aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Advantages of ultrasonic wire embedding machine:



1. Intelligent frequency search, extending the life of the buried wire 2-3 times.

2. No immersion in tin before soldering, reducing process and cost.

3. The matching power is powerful, and the embedding head and the ultrasonic generator can be interchanged at will.

4. Multi-point power control, ultra-high speed embedding, good consistency.

5. It solves the problem of heat generation of the device when embedding, and can work for a long time.

6. Standardized design can directly replace imported products, environmental protection and safety.

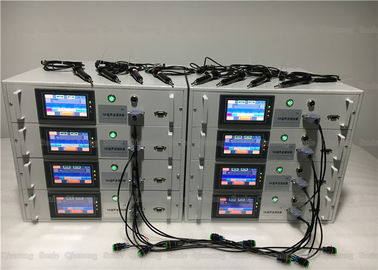

Simultaneously 8 Heads Working together by 70khz Ultrasonic Embedding Equipment



70khz Embedding Ultrasonic Welding Equipment Simultaneously 8 Heads Working Together 0





70khz Embedding Ultrasonic Welding Equipment Simultaneously 8 Heads Working Together 1
