Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W70D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 70KHZ |
|---|---|---|---|
| Power: | 50w | Voltage: | 220V |
| Protective Sleeve: | φ16*121mm | Welding Head: | Aperture 0.m Or 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Digital Generator |
| Highlight: | ultrasonic bonding machine,portable ultrasonic welder |
||

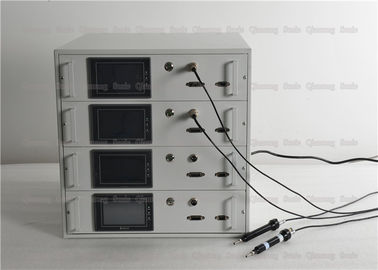

Digital Generator Matching for 70Khz Ultrasonic Copper Wire Embedding Device
Description:
Our digital ultrasonic smart card welder has been upgraded in the matching, even if implanting head appeared certain wear, driving power generator to quickly search and find the frequency of implanting head accurately, so as to ensure the stability of the whole ultrasonic system. Prolong the service life of the welding head, saves the loss for the majority of users.
Specifications:
| Type | QR-W70D |
| Frequency(KHz) | 70KHz |
| Trigger | External control |
| welder head | Titanium Alloy Material |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 5M |
| Generator | Digital generator |
| Generator Size | 155*265*170mm |
| Cover dimension | Φ16X121mm |
| Cover material | Aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Competitive Advantage:
· The amplitude can be adjusted to ensure the RFID embedding stability;
· High frequency, reach to 70khz, welding more smoothly;
· Ultrasonic system design precision is very high, good customer feedback;
· In particular, digital power supply design, has been in a leading position in the ultrasonic industry;
· Automatically tracks frequency and has a very wide frequency range that extends the life of the ultrasonic units.

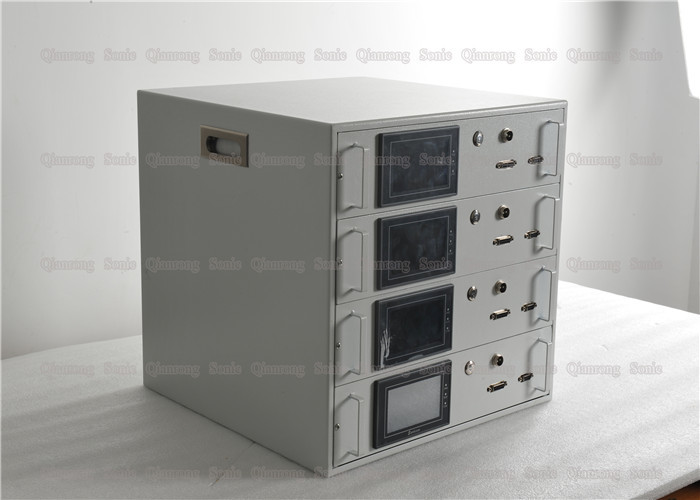

· Cabinet type, can control 3/4/5 burying heads to work at the same time
· touch screen control or external PLC control, easier operation
· 20%-100% energy continuously adjustable on the line, used in all sizes of smart card embedding applications
· wear-resistant titanium alloy tool head, suitable for 0.05-0.2 mm copper wire
· light body design, beautiful and durable, good heat dissipation
· 24-hour work, uniform energy output
· Suitable for high-speed embedding applications, embedding twice the speed of 60K devices
Digital Generator Matching for 70Khz Ultrasonic Copper Wire Embedding Device
