100w Ultrasonic Metal Welding Machine For Contactless Smart Card Antenna Welding

100w Ultrasonic Metal Welding Machine For Contactless Smart Card Antenna Welding

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W60A
Products Name:
Ultrasonic Wire Embedding Machine
Frequency:
60KHZ
Power:
100w
Voltage:
220V
Protective Sleeve:
φ25*110
Welding Head:
Aperture 0.mor 0.5mm
Cooling Compressor Air:
>0.1MPa/unit
Generator:
Analog Generator
Highlight:

ultrasonic spot welding machine

,

ultrasonic bonding machine

Product Description

60Khz 100w Ultrasonic Contactless Smart Card Antenna Welding Device





Principle:



The ultrasonic embedding device vibrates with ultrasonic waves at ultra-high frequency. By the conduction of the welding head and appropriate pressure, the metal parts (such as nuts and screws) are instantly squeezed into the reserved plastic holes and fixed at the set depth. . When finished, the tension and torque can be compared to the traditional strength of the mold, and the shortcomings of injection damage and slow injection are eliminated.





Specifications:



Type QR-W60A
Frequency(KHz) 60KHz
Trigger External control or manual control
welder head wear-resisting alloy steel above HRC55°
Threading hole Φ0.m or Φ0.5mm
Power code 2M or 5M
Generator

Digital generator V6.6 or analog

generator ZJS-100

Generator Size

280*320*140mm(V6.6)

280*320*150mm(ZJS-100)

Cover dimension Φ25X100mm
Cover material Nylon or aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Benefits:


1. welding spot firm, prevent to cold Weld.
2. same size welding spot, consistency.
3.welding spot small, easy to press fit package.
4. eliminating the need for pre-welded solder dip process, can hire less one operations staff.
5. its welding is faster than iron.
6. the production process will not produce exhaust gas waste pollution.
7. 60KHz ultrasonic unit, speed welding, low production costs.





60Khz 100w Ultrasonic Contactless Smart Card Antenna Welding Device

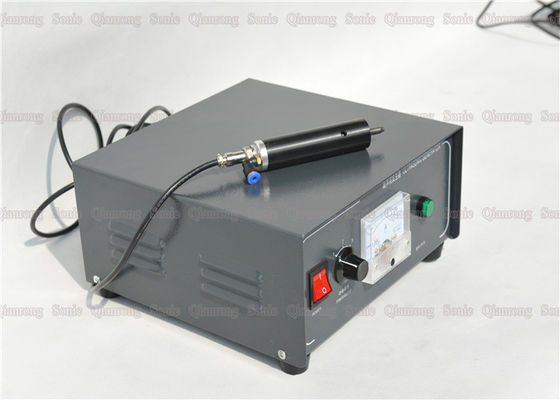

100w Ultrasonic Metal Welding Machine For Contactless Smart Card Antenna Welding 0





100w Ultrasonic Metal Welding Machine For Contactless Smart Card Antenna Welding 1
