Spare Parts Of An Ultasonic Antenna Embedding Ultrasonic Metal Welding Machine , Micro Welding Machine For IC ID Card
  • name
  • name
  • name
  • name

Spare Parts Of An Ultasonic Antenna Embedding Ultrasonic Metal Welding Machine , Micro Welding Machine For IC ID Card

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W60A
Products Name:
Ultrasonic Wire Embedding Machine
Frequency:
60KHZ
Power:
100w
Voltage:
220V
Protective Sleeve:
φ25*110
Welding Head:
Aperture 0.mor 0.5mm
Cooling Compressor Air:
＞0.1MPa/unit
Generator:
Analog Generator
Highlight:

ultrasonic spot welding machine

,

ultrasonic bonding machine

Product Description

Spare Parts of An Ultasonic Antenna Embedding Machine 60Khz IC ID Card





Description:



Ultrasonic embedding device vibrates with ultrasonic waves at ultra-high frequency. By the conduction of the welding head and appropriate pressure, the metal parts (such as nuts and screws) are instantly squeezed into the reserved plastic holes and fixed at the set depth. . When finished, the tension and torque can be compared to the traditional strength of the mold, and the shortcomings of injection damage and slow injection are eliminated.

Ultrasonic smart card welder, Which is also known as smart card antenna welding machine, smart card spot welding machine, smart card implantable antenna machine, is a professional device for the production of smart cards/ID cards, widely used in welding sheet positioning, antenna implanted. In recent years, it is an important application of ultrasonic welding.





Specifications:



Type QR-W60A
Frequency(KHz) 60KHz
Trigger External control or manual control
welder head wear-resisting alloy steel above HRC55°
Threading hole Φ0.m or Φ0.5mm
Power code 2M or 5M
Generator

Digital generator V6.6 or analog

generator ZJS-100
Generator Size

280*320*140mm(V6.6)

280*320*150mm(ZJS-100)
Cover dimension Φ25X100mm
Cover material Nylon or aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Features:



1. Ultrasonic planting system is equipped with a new version of intelligent CNC generator, which is automatically completed by frequency search and frequency chasing.

2. The 60K tool head has a hole diameter of 0.m and 0.5mm for users of different needs.

3. All tool head threading hole outlets and welding surface circumference are rounded to avoid wire breakage.

4. Ultrasonic transducer protection shell material is made of aluminum alloy, which has good heat dissipation, strong pressure resistance and good wear resistance.

5. In the ultrasonic system, the transducer and tool head are strictly calibrated before leaving the factory. Do not disassemble and disassemble them. After disassembling, the transducer may be damaged.

6. If you need to rework the tool head or other special requirements, please inform the company in advance, we can customize it for you before leaving the factory.





Spare Parts of An Ultasonic Antenna Embedding Machine 60Khz IC ID Card

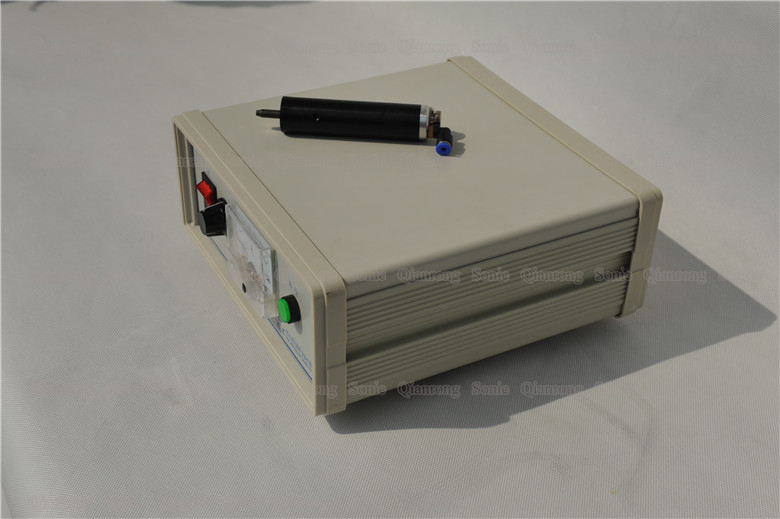

Spare Parts Of An Ultasonic Antenna Embedding Ultrasonic Metal Welding Machine , Micro Welding Machine For IC ID Card 0





Spare Parts Of An Ultasonic Antenna Embedding Ultrasonic Metal Welding Machine , Micro Welding Machine For IC ID Card 1
