Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W60A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 60KHZ |
|---|---|---|---|
| Power: | 100w | Voltage: | 220V |
| Protective Sleeve: | φ25*110 | Welding Head: | Aperture 0.3mmor 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Analog Generator |
| High Light: | ultrasonic spot welding machine,portable ultrasonic welder |
||
Memory Card Antenna by High Frequency 60Khz Ultrasonic Embedding Technology
Description:
Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research of ultrasonic equipment. It has many years of experience in ultrasonic welding applications and can provide solutions for the buried welding of various ID smart cards.
Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is a professional equipment for smart card embedding. It is applied to sheet welding positioning and antenna embedding. One of the important applications in the field of ID smart cards. Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research of ultrasonic equipment. It has many years of experience in ultrasonic welding applications and can provide solutions for the buried welding of various ID smart cards.
Specifications:
| Type | QR-W60A |
| Frequency(KHz) | 60KHz |
| Trigger | External control or manual control |
| welder head | wear-resisting alloy steel above HRC55° |
| Threading hole | Φ0.3mm or Φ0.5mm |
| Power code | 2M or 5M |

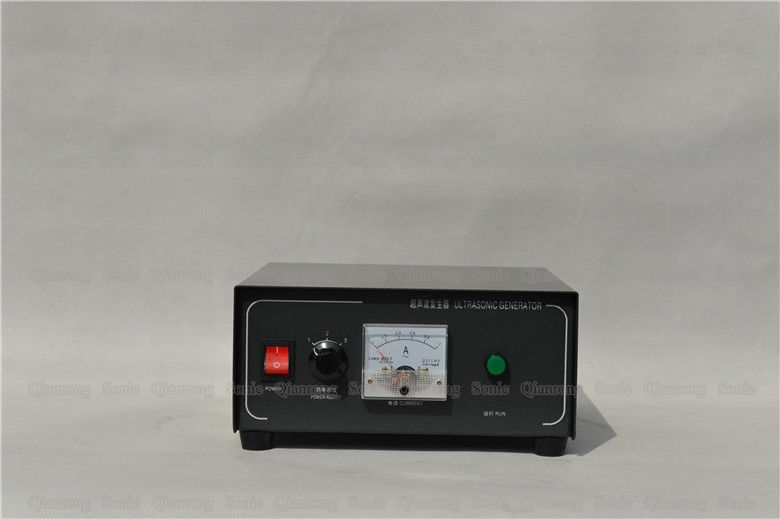

| Generator |
Digital generator V6.6 or analog generator ZJS-100 |
| Generator Size |
280*320*140mm(V6.6) 280*320*150mm(ZJS-100) |

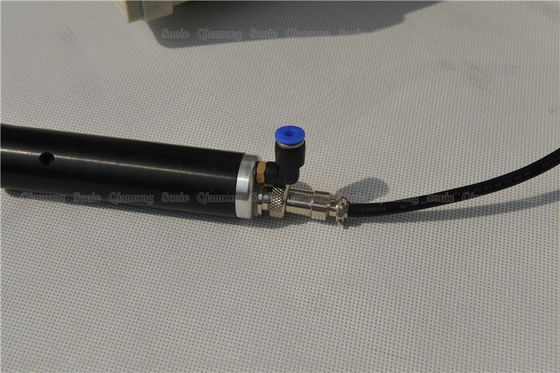

| Cover dimension | Φ25X100mm |
| Cover material | Nylon or aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0.3m/s |
| Thread fixed cycle | length 60000 m/s |
Feature of product:
1. The solder joint is firm and can be technically non-virtual soldering.
2. The solder joints are the same size, uniform lines and good consistency.
3. The solder joint is small, does not increase the quality of the coil, and is easy to press the package.
4. Elimination of the immersion tin process before welding, eliminating the need for an operating staff.
5. After welding, the welding of a product is faster than using a soldering iron.
6. The production process will not produce waste gas waste pollution, and work quietly and without noise.
7. Ultrasonic selects the frequency of 60KHz, and one machine uses 5-10 sets of ultrasonic products, and the welding speed is fast.
8. Low power consumption can save a lot of production costs for production companies.
Memory Card Antenna by High Frequency 60Khz Ultrasonic Embedding Technology
