Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W60A |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 60KHZ |
|---|---|---|---|
| Power: | 100w | Voltage: | 220V |
| Protective Sleeve: | φ25*110 | Welding Head: | Aperture 0.mor 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Analog Generator |
| Highlight: | ultrasonic spot welding machine,ultrasonic bonding machine |
||
60Khz Ultrasound Antenna Technolog with Steel Welding Horn with 0.5mm Welding Hole
Description:
Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is used for the ID smart card metal wire, the implantation of the chip, that is, the wire or chip is soldered on the plastic sheet.
Specifications:
| Type | QR-W60A |
| Frequency(KHz) | 60KHz |
| Trigger | External control or manual control |
| welder head | wear-resisting alloy steel above HRC55° |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 2M or 5M |
| Generator |
Digital generator V6.6 or analog generator ZJS-100 |
| Generator Size |
280*320*140mm(V6.6) 280*320*150mm(ZJS-100) |
| Cover dimension | Φ25X100mm |
| Cover material | Nylon or aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Advantage:
Ordinary ultrasonic embedding device, with the wear of the wire bonding tool head, the frequency will inevitably change constantly (the product size determines the product frequency). When the frequency changes to a certain extent, the generator will find it difficult to find the frequency of the tool head, thus affecting the whole The normal operation of the ultrasonic system, this time only the replacement of the new wire tool head.
Compared with the traditional embedding device, the ultrasonic embedding device has greatly improved the Qiangeng brand ultrasonic embedding device. The improved ultrasonic embedding device has greatly improved product performance, stable operation and stronger automatic frequency matching capability. The appearance is also more beautiful. This problem has been solved to a large extent. Even if the tool head has a certain degree of wear, the generator can automatically search for and find the change of the ultrasonic vibration sub-frequency, thus ensuring the stable operation of the entire ultrasonic system, and the service life of the tool head will be extended. -3 times, really cost-effective for the majority of users. It is 30% larger than the traditional ultrasonic embedding device, and solves the problem of ultrasonic generator and vibrator heating, and can work for a long time.

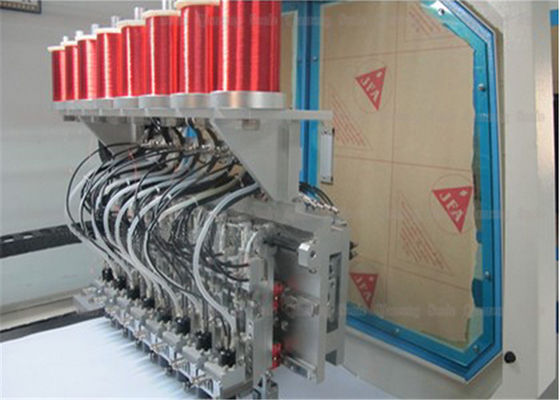

60Khz Ultrasound Antenna Technolog with Steel Welding Horn with 0.5mm Welding Hole
