0.1-0./S Handheld Ultrasonic Welder Antenna Technology With Steel Welding Horn 0.5mm Welding Hole
  • name
  • name
  • name
  • name

0.1-0./S Handheld Ultrasonic Welder Antenna Technology With Steel Welding Horn 0.5mm Welding Hole

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W60A
Products Name:
Ultrasonic Wire Embedding Machine
Frequency:
60KHZ
Power:
100w
Voltage:
220V
Protective Sleeve:
φ25*110
Welding Head:
Aperture 0.mor 0.5mm
Cooling Compressor Air:
＞0.1MPa/unit
Generator:
Analog Generator
Highlight:

ultrasonic spot welding machine

,

ultrasonic bonding machine

Product Description

60Khz Ultrasound Antenna Technolog with Steel Welding Horn with 0.5mm Welding Hole





Description:

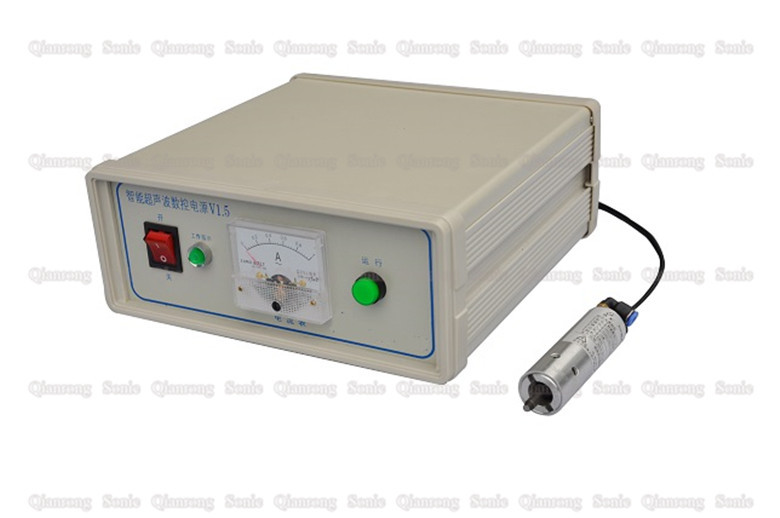

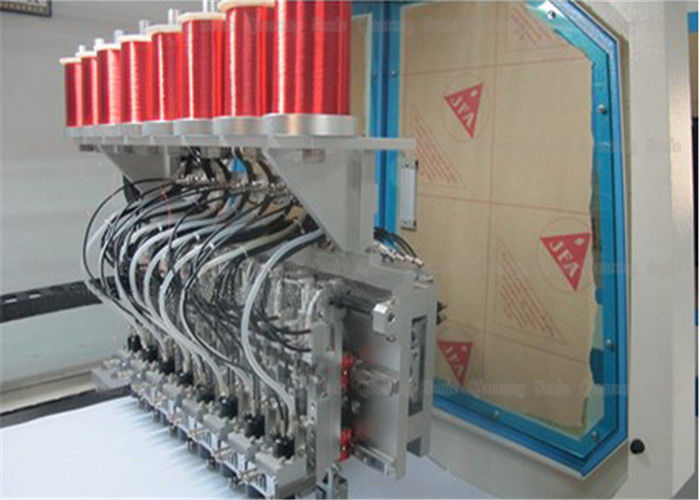

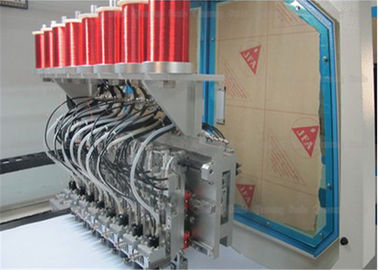

Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is used for the ID smart card metal wire, the implantation of the chip, that is, the wire or chip is soldered on the plastic sheet.





Specifications:



Type QR-W60A
Frequency(KHz) 60KHz
Trigger External control or manual control
welder head wear-resisting alloy steel above HRC55°
Threading hole Φ0.m or Φ0.5mm
Power code 2M or 5M

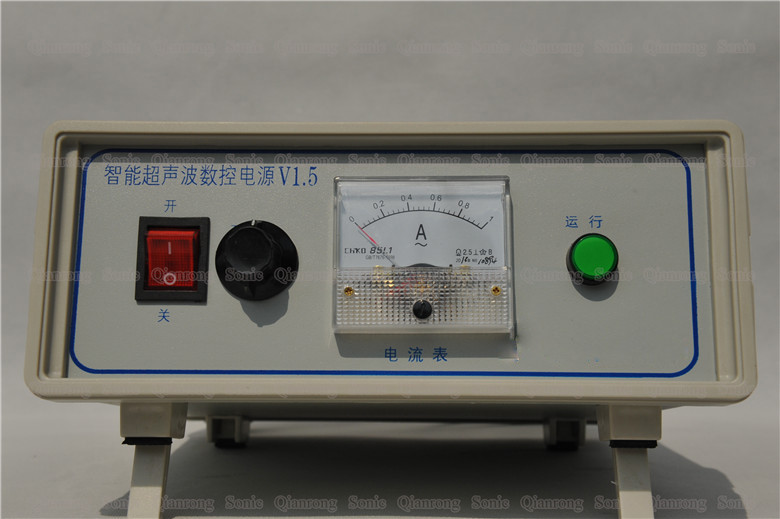

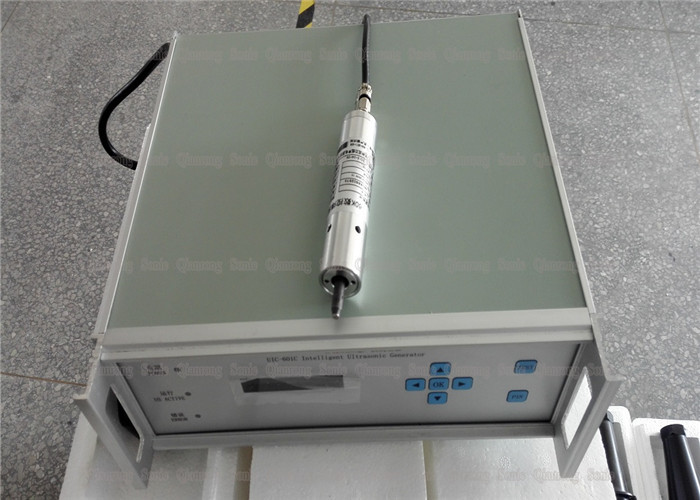

Generator

Digital generator V6.6 or analog

generator ZJS-100
Generator Size

280*320*140mm(V6.6)

280*320*150mm(ZJS-100)
Cover dimension Φ25X100mm
Cover material Nylon or aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Advantage:



Ordinary ultrasonic embedding device, with the wear of the wire bonding tool head, the frequency will inevitably change constantly (the product size determines the product frequency). When the frequency changes to a certain extent, the generator will find it difficult to find the frequency of the tool head, thus affecting the whole The normal operation of the ultrasonic system, this time only the replacement of the new wire tool head.



Compared with the traditional embedding device, the ultrasonic embedding device has greatly improved the Qiangeng brand ultrasonic embedding device. The improved ultrasonic embedding device has greatly improved product performance, stable operation and stronger automatic frequency matching capability. The appearance is also more beautiful. This problem has been solved to a large extent. Even if the tool head has a certain degree of wear, the generator can automatically search for and find the change of the ultrasonic vibration sub-frequency, thus ensuring the stable operation of the entire ultrasonic system, and the service life of the tool head will be extended. -3 times, really cost-effective for the majority of users. It is 30% larger than the traditional ultrasonic embedding device, and solves the problem of ultrasonic generator and vibrator heating, and can work for a long time.





60Khz Ultrasound Antenna Technolog with Steel Welding Horn with 0.5mm Welding Hole



0.1-0./S Handheld Ultrasonic Welder Antenna Technology With Steel Welding Horn 0.5mm Welding Hole 0





0.1-0./S Handheld Ultrasonic Welder Antenna Technology With Steel Welding Horn 0.5mm Welding Hole 1
