70Khz Embedding Intelligence Ultrasonic Contactless Inlay Equipment Digital Generator

70Khz Embedding Intelligence Ultrasonic Contactless Inlay Equipment Digital Generator

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W70D
Products Name:
Ultrasonic Wire Embedding Machine
Frequency:
70KHZ
Power:
50w
Voltage:
220V
Protective Sleeve:
φ16*121mm
Welding Head:
Aperture 0.m Or 0.5mm
Cooling Compressor Air:
>0.1MPa/unit
Generator:
Digital Generator
Highlight:

ultrasonic bonding machine

,

portable ultrasonic welder

Product Description

70Khz Embedding Intelligence Ultrasonic Contactless Inlay Equipment





Description:



Ultra-thin IC card is made possible by ultrasonic embedding process.It will effectively solve the problem of the failure of etching antenna technology in the application of ultra-thin IC card, which can reduce the scrap rate and reuse cost.The ultra-thin IC card produced by using the ultrasonic embedding process is the same as the IC card manufactured by the traditional process, so its average service life will be longer than the ultra-thin IC card produced by using the etching antenna (6 years) process. Two different processes, the material difference is mainly in the antenna part, the antenna material used in the etching antenna process is a PET (polyethylene terephthalate, PET) sheet with a thickness of 0.078 mm and a precision etched aluminum wire, and Ultrasound embedding process antenna for enameled copper wire, the same production performance of an IC card, according to the material price of etching antenna price is about 2 times the price of copper, so the use of ultrasonic embedding process to produce ultra-thin IC card The price is also slightly better. The mass production of ultra-thin IC CARDS will have a profound impact on the continuous development of the smart card industry.





Specifications:



Type QR-W70D
Frequency(KHz) 70KHz
Trigger External control
welder head Titanium Alloy Material
Threading hole Φ0.m or Φ0.5mm
Power code 5M
Generator Digital generator
Generator Size 155*265*170mm
Cover dimension Φ16X121mm
Cover material Aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Features:



1. Ultrasonic planting system is equipped with a new version of intelligent CNC generator, which is automatically completed by frequency search and frequency chasing.

2. The 70K tool head has a hole diameter of 0.m and 0.5mm for users of different needs.

3. All tool head threading hole outlets and welding surface circumference are rounded to avoid wire breakage.

4. Ultrasonic transducer protection shell material is made of aluminum alloy, which has good heat dissipation, strong pressure resistance and good wear resistance.

5. In the ultrasonic system, the transducer and tool head are strictly calibrated before leaving the factory. Do not disassemble and disassemble them. After disassembling, the transducer may be damaged.

6. If you need to rework the tool head or other special requirements, please inform the company in advance, we can customize it for you before leaving the factory.





70Khz Embedding Intelligence Ultrasonic Contactless Inlay Equipment

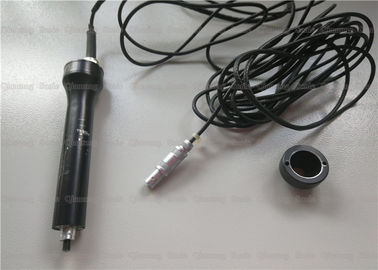

70Khz Embedding Intelligence Ultrasonic Contactless Inlay Equipment Digital Generator 0

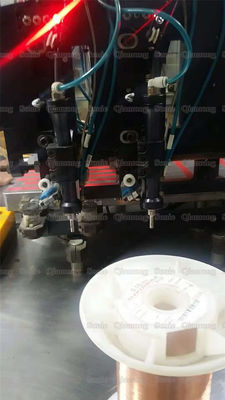

70Khz Embedding Intelligence Ultrasonic Contactless Inlay Equipment Digital Generator 1
