Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W70D |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 10 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 unit per month |
| Products Name: | Ultrasonic Wire Embedding Machine | Frequency: | 70KHZ |
|---|---|---|---|
| Power: | 50w | Voltage: | 220V |
| Protective Sleeve: | φ16*121mm | Welding Head: | Aperture 0.m Or 0.5mm |
| Cooling Compressor Air: | ＞0.1MPa/unit | Generator: | Digital Generator |
| Highlight: | ultrasonic bonding machine,portable ultrasonic welder |
||

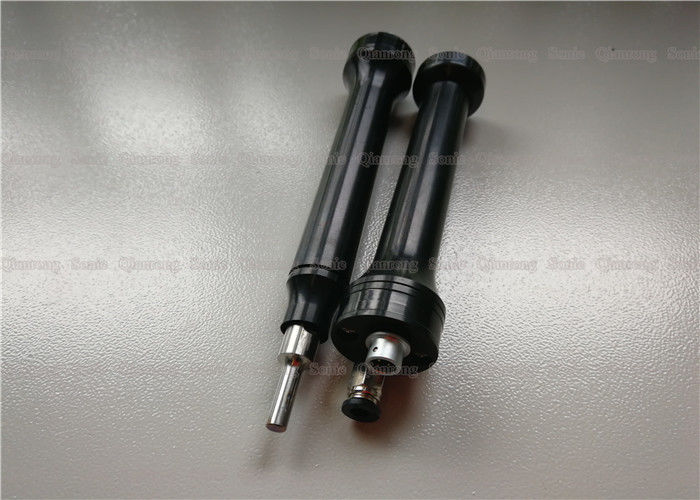

Replacement Rinco Black Welding Head 70Khz for Smart Card Implatable Antenna Machine
Description:
Ultrasonic antenna wire technology is a high speed system is described by which copper antenna wires are embedded within an array of smart cards that are manufactured on a plastic sheet so as to lie in electrical contact with electronic chips that are mounted on respective cards. The system includes a slide assembly that carries an ultrasonic actuator. The tip of the ultrasonic actuator is connected to receive a supply of ultrasonic energy for melting a plastic card to form a path in which an antenna wire is to be embedded. There is a channel formed in the tip of the ultrasonic actuator through which a run of the antenna wire is fed so that an antenna may be installed at high speed directly within the path burned in the card.
Specifications:
| Type | QR-W70D |
| Frequency(KHz) | 70KHz |
| Trigger | External control |
| welder head | Titanium Alloy Material |
| Threading hole | Φ0.m or Φ0.5mm |
| Power code | 5M |
| Generator | Digital generator |
| Generator Size | 155*265*170mm |
| Cover dimension | Φ16X121mm |
| Cover material | Aluminum |
| Cooling way | compressed air cooling (Φ4mm conduit) |
| Speed | 0.1-0./s |
| Thread fixed cycle | length 60000 m/s |
Features:
1. Main features Intelligent search frequency: automatic frequency function to extend the life of the plug.
2. Installation method: single cabinet, combination cabinet, can control eight embedding rods to work at the same time.
3. Control mode: multi-point point energy fine adjustment, external PLC / computer signal control, easy to operate.
4. Button-on function: The welding energy can be adjusted according to the thickness and hot-melt of the welding material, and the operation is simple.
5. Self-detection function: fault display and error alarm signal.
6. Appearance: The body design is light, beautiful and durable, and has good heat dissipation performance.
7. Stability: Long working hours, uniform energy output.
Compare with etching antenna technology:
Ultra-thin IC card is made possible by ultrasonic embedding process.It will effectively solve the problem of the failure of etching antenna technology in the application of ultra-thin IC card, which can reduce the scrap rate and reuse cost.The ultra-thin IC card produced by using the ultrasonic embedding process is the same as the IC card manufactured by the traditional process, so its average service life will be longer than the ultra-thin IC card produced by using the etching antenna (6 years) process. Two different processes, the material difference is mainly in the antenna part, the antenna material used in the etching antenna process is a PET (polyethylene terephthalate, PET) sheet with a thickness of 0.078 mm and a precision etched aluminum wire, and Ultrasound embedding process antenna for enameled copper wire, the same production performance of an IC card, according to the material price of etching antenna price is about 2 times the price of copper, so the use of ultrasonic embedding process to produce ultra-thin IC card The price is also slightly better. The mass production of ultra-thin IC CARDS will have a profound impact on the continuous development of the smart card industry.
Replacement Rinco Black Welding Head 70Khz for Smart Card Implatable Antenna Machine
