60 Khz Embedding Head Ultrasonic Coil Inlays For Contactkess Connecting System

60 Khz Embedding Head Ultrasonic Coil Inlays For Contactkess Connecting System

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 10 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-W60A
Products Name:
Ultrasonic Wire Embedding Machine
Frequency:
60KHZ
Power:
100w
Voltage:
220V
Protective Sleeve:
φ25*110
Welding Head:
Aperture 0.mor 0.5mm
Cooling Compressor Air:
>0.1MPa/unit
Generator:
Analog Generator
Highlight:

ultrasonic bonding machine

,

portable ultrasonic welder

Product Description

High Frequency 60Khz Embedding Head Ultrasonic Coil Inlays for Contactkess Connecting System





Ultrasonic IC card welding device:


60KHZ ultrasonic intelligent IC smart card welding machine
in the production of Bank card, smart card and VIP, which need to dip tin coils and then welding.

Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is a professional equipment for smart card embedding. It is applied to sheet welding positioning and antenna embedding. One of the important applications in the field of ID smart cards. Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research of ultrasonic equipment. It has many years of experience in ultrasonic welding applications and can provide solutions for the buried welding of various ID smart cards.

ultrasonic welder can welding wire directly, the welding spot has the following benefits:
1. welding spot firm, prevent to cold Weld.
2. same size welding spot, consistency.
3.welding spot small, easy to press fit package.
4. eliminating the need for pre-welded solder dip process, can hire less one operations staff.
5. its welding is faster than iron.
6. the production process will not produce exhaust gas waste pollution.
7. 60KHz ultrasonic unit, speed welding, low production costs.

Ultrasonic IC smart card welding equipment can be made into one generator to drive 5 to 10 sets welding heads, which will easy for you to use.





Specifications:



Type QR-W60A
Frequency(KHz) 60KHz
Trigger External control or manual control
welder head wear-resisting alloy steel above HRC55°
Threading hole Φ0.m or Φ0.5mm
Power code 2M or 5M
Generator

Digital generator V6.6 or analog

generator ZJS-100

Generator Size

280*320*140mm(V6.6)

280*320*150mm(ZJS-100)

Cover dimension Φ25X100mm
Cover material Nylon or aluminum
Cooling way compressed air cooling (Φ4mm conduit)
Speed 0.1-0./s
Thread fixed cycle length 60000 m/s





Competitive Advantage:



  • Steady welding point, completely eradicate insufficient solder technically.
  • The size of welding spots is the same, equality line, good effect on uniformity.
  • The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.
  • To leave out the immersion tin step before doing welding, save an operator.
  • After skilled in welding, much faster than the way to use searing iron to do weld.
  • On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
  • To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
  • Low power consumption, to save production cost for manufactory enterprise.





High Frequency 60Khz Embedding Head Ultrasonic Coil Inlays for Contactkess Connecting System

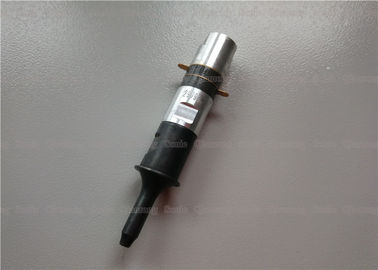

60 Khz Embedding Head Ultrasonic Coil Inlays For Contactkess Connecting System 0





60 Khz Embedding Head Ultrasonic Coil Inlays For Contactkess Connecting System 1
