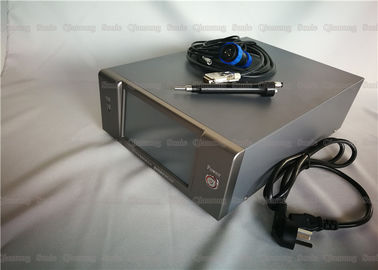

100w 70Khz High Frequency Ultrasound 0.1mm Copper Embedding Device With Digital Driver


100w 70Khz High Frequency Ultrasound 0.1mm Copper Embedding Device with A Digital Driver


Description:

Ultrasonic embedding device, also known as smart card antenna welding machine, smart card spot welding machine, smart card antenna implanting machine, etc., is a professional equipment for smart card embedding. It is applied to sheet welding positioning and antenna embedding. One of the important applications in the field of ID smart cards. Hangzhou Qianrong Automation Equipment Co., Ltd. is a national high-tech enterprise specializing in the manufacture and research of ultrasonic equipment. It has many years of experience in ultrasonic welding applications and can provide solutions for the buried welding of various ID smart cards.Depending upon the output of the encoder, the speed and rotation of the wire dispensing spool is controlled until the tension in the antenna wire feed line is eliminated.


Generator Characteristics


• High stability: All-digital integrated circuits, use of US imports of high-performance processors interference, while reducing the number of components, simplify the hardware structure, thereby improving the reliability of the system.
• Automatic frequency tracking: Digital frequency synthesis technology combined with digital phase-locked loop frequency tracking of complex control technology, can eliminate the temperature, static load, machining area, tool wear and other factors drift disadvantages of conventional analog regulator insurmountable, conducive parameter adjustment, easy modification by software, easily adjust the control scheme and achieve a variety of new control strategies.
• Strong output: The use of IGBT power modules plus his excited oscillation circuit structure, the output power is more than 1.5 times that of conventional self-excited circuit.
• Amplitude stepless adjustment: Amplitude can instantly increase or decrease in the adjustment process, also can be micro adjusted, can effectively prevent the perfect size pieces of plastic welding, effectively reducing wear shock, burns and so on. Defective amplitude setting range of 10% to 100%.
• Intelligent three protection and fault alarm: Die-current protection, frequency offset protection, total output is too large to protect. Equipment failure, the generator will stop working, and make the appropriate cause of the malfunction prompts until technician troubleshooting.
• Intelligent closed-loop amplitude control technology to achieve the amplitude adjustment, independent of input supply voltage and load fluctuations affect the amplitude of the output remains constant.
• Two kinds of welding mode switch back and forth, so that a higher precision welding, soldering and better results.



Specifications:




Features:

1. Ultrasonic planting system is equipped with a new version of intelligent CNC generator, which is automatically completed by frequency search and frequency chasing.
2. The 70K tool head has a hole diameter of 0.m and 0.5mm for users of different needs.
3. All tool head threading hole outlets and welding surface circumference are rounded to avoid wire breakage.
4. Ultrasonic transducer protection shell material is made of aluminum alloy, which has good heat dissipation, strong pressure resistance and good wear resistance.
5. In the ultrasonic system, the transducer and tool head are strictly calibrated before leaving the factory. Do not disassemble and disassemble them. After disassembling, the transducer may be damaged.
6. If you need to rework the tool head or other special requirements, please inform the company in advance, we can customize it for you before leaving the factory.
