Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating

Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating

MOQ: 1 UNIT
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS680
Production Name:
Intelligent Ultrasonic Precision Spraying Machine
Frequency:
20-200Khz (Normally Use 60/100/110/120Khz)
Max Power:
1-15w
Continuous Spraying Volume Max:
0.01-50ml/min
Effective Spraying Width:
600mm Or Expandable
Spray Uniformity:
<5%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

hydrophobic windshield ultrasonic precision coating

,

oil repellent ultrasonic precision coating

Product Description

Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating





Description:



In the automotive manufacturing industry, automotive glass is an important component of vehicles, and its performance and quality are highly valued by car manufacturers and consumers. Ultrasonic spraying technology can effectively improve the performance of automotive glass, including high transparency, low reflection, wear resistance, energy conservation, environmental protection, and efficient production. Mainly used in windshields, side windows, and rearview mirrors, it enhances driving visibility, durability, and interior comfort, leading a new revolution in the automotive industry.





Parameters:



Product Type Ultrasonic Large-area Production Line Precision Coating FS680
Spray Nozzle Operating Frequency 20-200KHz (Normally use 60100110120K)
Nozzle Power 1-15W
Continuous Spraying Volume Max 0.01-50ml/min
Max Spraying Width 600mm or Expandable
Spray Uniformity ≥95%
Solution Conversion Rate ≥95%
Dry Film Thickness 20nm-100μm
Solution Viscosity ≤30cps
Temperature Range 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.15MPA
Input Voltage 220V±10%/50-60Hz
Exercise Mode Fixed nozzle, substrate movement, Z-axis manual adjustment
Control Mode Industrial control all-in-one WIN10 (64 bit)+physical buttons
Control Content Ultrasonic spraying, liquid supply, ultrasonic dispersion and other systems
Ultrasonic Nozzle Standard configuration: 5 sets of FUNSONIC ultrasonic nozzle systems in parallel series (customized quantity)
Application Suitable for 24-hour uninterrupted production in combination with production lines





Advantages :



1. High transparency and low reflectivity: The ultrasonic spraying system can evenly spray coatings with high transparency and low reflectivity, effectively reducing light reflection and scattering, and improving the clarity of the driving field of view. It plays an important role in driving at night and under adverse weather conditions.
2. High wear resistance: Automotive glass often encounters various external environments such as wind, sand, rain, bird droppings, etc. Ultrasonic spraying technology can form a dense wear-resistant coating on the surface of glass, significantly improving its scratch resistance and durability, and extending its service life.
3. Energy saving and environmental protection: No additional heating or pressure equipment is required during the ultrasonic spraying process, reducing energy consumption. At the same time, this technology does not produce harmful gases or waste, meets environmental requirements, and helps achieve green production.
4. Improve production efficiency: Ultrasonic spraying technology can achieve a fast and continuous coating process, greatly improving production efficiency. This not only shortens the production cycle, but also reduces production costs, bringing greater economic benefits to automobile manufacturers.

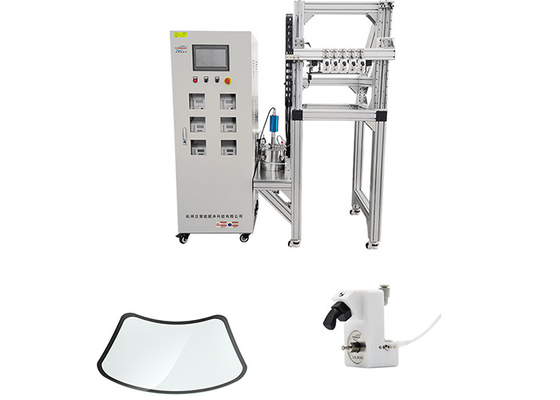

Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating



Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating 0Oil Repellent And Hydrophobic Windshield Ultrasonic Precision Coating 1
