Inverted Horn Type Ultrasonic Oscillator , Small Ultrasound Transducer With Pizoelectric Ceramic
  • name
  • name
  • name
  • name

Inverted Horn Type Ultrasonic Oscillator , Small Ultrasound Transducer With Pizoelectric Ceramic

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-6015-4BD-BZ
Products Name:
Ultrasonic Oscillator
Output Power:
2600w
Frequency:
15khz
Ceramic Disc Diameter:
60mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
9-11nf
Connected Screw:
M16*1
Application:
Ultrasonic Plastic Welding Machine
Highlight:

ultrasonic vibration transducer

,

high power ultrasonic emitter

Product Description

Inverted Horn Type Ultrasonic Welding Transducer with Pizoelectric Ceramic





Description:



When the ultrasonic horn is longitudinally stretched and vibrated, the movement of the particles on the left and right sides of a cross section in the middle is just opposite, which is equivalent to the existence of a relatively stationary section. This section is called the node, which is also the best fixed point of the vibrator. Deviation from this node will reduce the working efficiency of the vibrator, commonly known as leakage.





Specifications:



Model QR-6015-4BD-BZ
Frequency 15 khz
Output power 2600 watt
Joint bolt M16*1
Ceramic disc Diameter 60mm
Qty of ceramic discs 4pcs
Capacitance 9-11nf
Application Plastic welding machine





Ultrasonic technology:



The use of ultrasonic welding technology in the plastics industry has become increasingly common around the world. The application of this technology can replace the flux, adhesive, pinning or other mechanical fixing methods required in the past, thereby increasing production efficiency and reducing costs. Its welding principle is to generate 20KHz (or 15KHz) high-voltage and high-frequency signals from the generator. Through the transducing system, the signal is converted into high-frequency mechanical vibration, which is applied to the workpiece of plastic products and passes through the surface of the workpiece and the intrinsic molecules. Friction causes the temperature of the interface to rise, and when the temperature reaches the melting point of the workpiece itself, the workpiece interface is rapidly melted, and then filled in the gap between the interfaces; when the vibration stops, the workpiece is simultaneously cooled and shaped under a certain pressure, A perfect weld is achieved.





Inverted Horn Type Ultrasonic Welding Transducer with Pizoelectric Ceramic

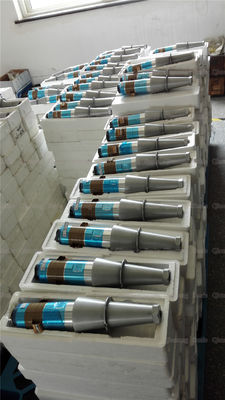

Inverted Horn Type Ultrasonic Oscillator , Small Ultrasound Transducer With Pizoelectric Ceramic 0





Inverted Horn Type Ultrasonic Oscillator , Small Ultrasound Transducer With Pizoelectric Ceramic 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
