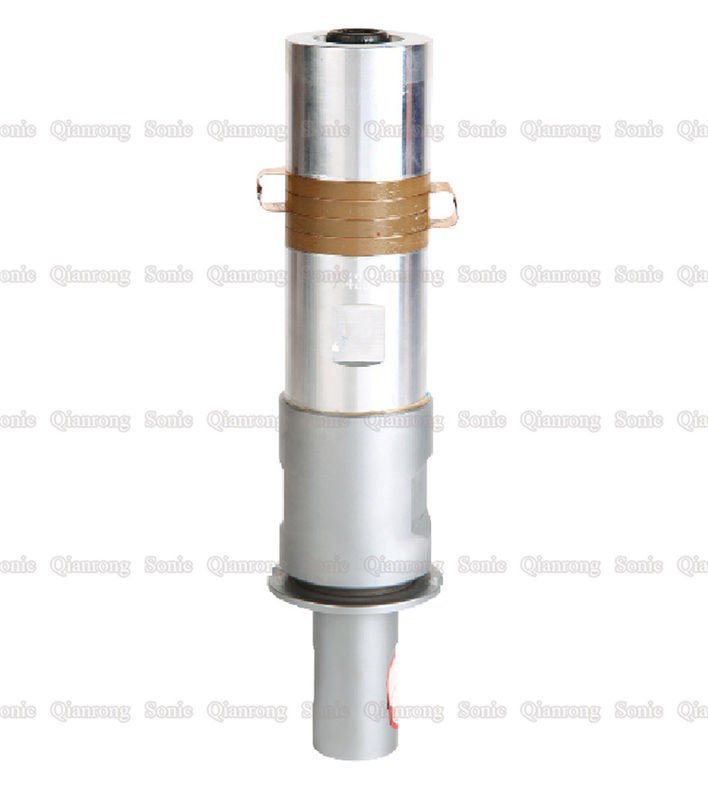

Long Column Vibration Ultrasonic Oscillator For Ultrasonic Welding Equipment 1500w
  • name
  • name
  • name
  • name

Long Column Vibration Ultrasonic Oscillator For Ultrasonic Welding Equipment 1500w

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4CZ-BJ
Products Name:
Ultrasonic Oscillator
Output Power:
1500w
Frequency:
20khz
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
11-16nf
Connected Screw:
3/8-24UNF
Application:
Ultrasonic Plastic Welding Machine
Highlight:

small ultrasound transducer

,

high power ultrasonic emitter

Product Description

Long Column 20Khz Ultrasonic Vibration for Ultrasonic Welding Equipment





Description:



The ultrasonic vibrator is composed of an ultrasonic transducer and a horn. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. The main function of ultrasonic horn in vibration system is to amplify the mass displacement or velocity of mechanical vibration and concentrate ultrasonic energy on a small area. It is called the ultrasonic shifting lever or the ultrasonic concentrator.





Specifications:



Model QR-5020-4CZ-BJ
Frequency 20khz
Output power 1500 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-16nf
Application Plastic welding machine





Role of Ultrasonic Booster:



Ultrasonic Booster (ultrasonic horns), as the name suggests, are functional components that match the amplitude of ultrasonic vibrations with ultrasonic transducers. Its main function is to change the amplitude of the transducer (generally increase), improve the vibration ratio, improve the efficiency, improve the mechanical quality factor, enhance the heat resistance, expand the temperature range, and extend the service life of the transducer. The ultrasonic transducer adjusts the load matching between the transducer and the ultrasonic tool head by installing a horn (ultrasonic horn), which reduces the resonance impedance and makes it work at the resonant frequency to improve the electro-acoustic conversion efficiency. Reduces the heat generation of the ultrasonic transducer and increases the service life.





Long Column 20Khz Ultrasonic Vibration for Ultrasonic Welding Equipment



Long Column Vibration Ultrasonic Oscillator For Ultrasonic Welding Equipment 1500w 0





Long Column Vibration Ultrasonic Oscillator For Ultrasonic Welding Equipment 1500w 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
