Electrical Ultrasonic Oscillator , 1500 Watt Ultrasonic Welding Transducer Vibration With Black Booster
  • name
  • name
  • name
  • name

Electrical Ultrasonic Oscillator , 1500 Watt Ultrasonic Welding Transducer Vibration With Black Booster

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4BZ-ZZ
Products Name:
Ultrasonic Oscillator
Output Power:
1500w
Frequency:
20khz
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
11-16nf
Connected Screw:
3/8-24UNF
Application:
Ultrasonic Plastic Welding Machine
Highlight:

small ultrasound transducer

,

ultrasonic vibration transducer

Product Description

Electrical 20Khz 1500w Ultrasonic Welding Vibration with Black Booster





Description:



The ultrasonic vibrator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The piezoelectric effect of piezoelectric ceramics realizes the mutual conversion of electrical energy and mechanical energy (acoustic vibration), and the device is amplified by the acoustic impedance matching front and rear radiation cover blocks.





Specifications:



Model QR-5020-4BZ-ZZ
Frequency 20khz
Output power 1500 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-16nf
Application Plastic welding machine





Principle of Ultrasonic plastic welding machine:



The principle of ultrasonic plastic welding machine is to generate 20KHz (or 15KHz) high-voltage and high-frequency signals from the generator. Through the energy conversion system, the signal is converted into high-frequency mechanical vibration, applied to the workpiece of plastic products, through the surface of the workpiece and in the molecule. The friction between the two causes the temperature transmitted to the interface to rise. When the temperature reaches the melting point of the workpiece itself, the workpiece interface is rapidly melted, and then filled in the gap between the interfaces. When the vibration stops, the workpiece is simultaneously cooled and shaped under a certain pressure. , to achieve the perfect welding. Xinyu's new ultrasonic plastic welding machine has unique effects on PE and PP materials with soft welding and ultra-long diameter and long length plastic weldments. It can meet the needs of various products and can produce efficiency and products for users. Grade contribution.



Ultrasonic plastic welding machine does not add any adhesive, filler or solvent, nor consumes a large amount of heat source when welding plastic products. It has the advantages of simple operation, fast welding speed, high welding strength and high production efficiency. Therefore, ultrasonic welding technology is becoming more and more widely used.





Electrical 20Khz 1500w Ultrasonic Welding Vibration with Black Booster

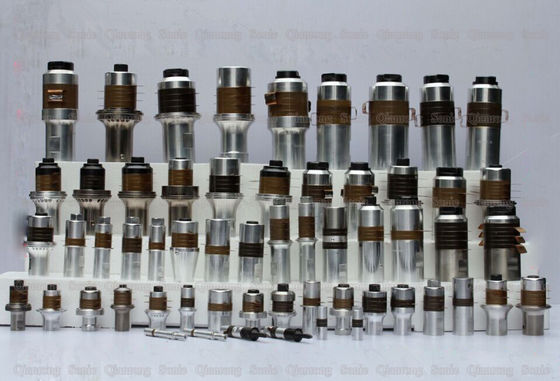

Electrical Ultrasonic Oscillator , 1500 Watt Ultrasonic Welding Transducer Vibration With Black Booster 0





Electrical Ultrasonic Oscillator , 1500 Watt Ultrasonic Welding Transducer Vibration With Black Booster 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
