High Efficiency 20Khz 1500w Ultrasonic Oscillator Welding With 3/8-24UNF Connected Screw
  • name
  • name
  • name
  • name

High Efficiency 20Khz 1500w Ultrasonic Oscillator Welding With 3/8-24UNF Connected Screw

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4HZ-BJ
Products Name:
Ultrasonic Oscillator
Output Power:
1500w
Frequency:
20khz
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
11-12nf
Connected Screw:
3/8-24UNF
Application:
Ultrasonic Plastic Welding Machine
Highlight:

small ultrasound transducer

,

ultrasonic vibration transducer

Product Description

High Efficiency Piezoelectric 20Khz 1500w Ultrasononic Welding Oscillator Series





Description:



When the ultrasonic booster is longitudinally stretched and vibrated, the movement of the particles on the left and right sides of a cross section in the middle is just opposite, which is equivalent to the existence of a relatively stationary section. This section is called the node, which is also the best fixed point of the vibrator. Deviation from this node will reduce the working efficiency of the vibrator, commonly known as leakage.





Specifications:



Model QR-5020-4HZ-BJ
Frequency 20khz
Output power 1500 watt
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11-12nf
Application Plastic welding machine





What is ultrasonic Converter?



The converter is aptly named because it receives electrical energy from the power supply and converts it into mechanical vibrations.



How does it work?



When alternating voltage at a frequency of 20,000 Hz is applied to the converter it physically vibrates at that same frequency.



What is a converter made up of?



An electrostrictive transducer consisting of one or more disks of piezoelectric material sandwiched between two metal sections.



The entire assembly is resonant at a predetermined frequency, and its length is acoustically equal to one-half wavelength at the applied frequency.





High Efficiency Piezoelectric 20Khz 1500w Ultrasononic Welding Oscillator Series

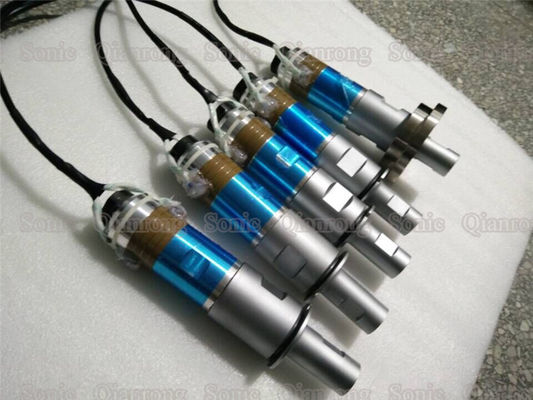

High Efficiency 20Khz 1500w Ultrasonic Oscillator Welding With 3/8-24UNF Connected Screw 0





High Efficiency 20Khz 1500w Ultrasonic Oscillator Welding With 3/8-24UNF Connected Screw 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
