Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-3828-2BZ-BJL |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in carton |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000pcs per month |
Products Name: | Ultrasonic Oscillator | Output Power: | 500w |
---|---|---|---|
Frequency: | 28khz | Ceramic Disc Diameter: | 38mm |
Qty Of Ceramic Discs: | 2pcs | Capacitance: | 3.7-4.2nf |
Highlight: | ultrasonic vibration transducer,high power ultrasonic emitter |

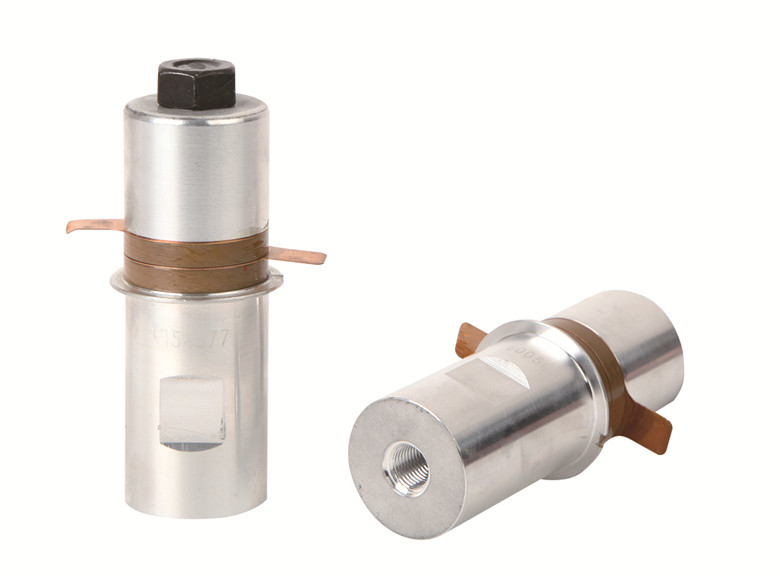

500W 28Khz Ultrasonic Welding Oscillator with 2pcs Pizoelectric Ceramics
Description:
The ultrasonic oscillator system consists of three parts: Transducer (TRANSDUCER), Amplifier (also known as secondary rod, horn, BOOSTER), welding head (also known as welding, HORN or SONTRODE).
Specifications:
Model | QR-3828-2BZ-BJL |
Frequency | 28khz |
Output power | 500 watt |
Ceramic disc Diameter | 38mm |
Qty of ceramic discs | 2pcs |
Capacitance | 3.7-4.2nf |
Application | Ultrasonic Plastic Welding machine |
The principle of ultrasonic plastic welding:
When ultrasonic waves act on the thermoplastic plastic contact surface, high-frequency vibrations of tens of thousands of times per second are generated. This high-frequency vibration reaches a certain amplitude, and the ultrasonic energy is transmitted to the weld zone through the upper weldment, because the weld zone is two At the interface of the welding, the sound resistance is large, so local high temperature is generated. Moreover, due to the poor thermal conductivity of the plastic, it can not be dissipated in time and gather in the weld zone, so that the contact faces of the two plastics melt rapidly, and after a certain pressure, they are integrated into one. When the ultrasonic wave stops, let the pressure last for a few seconds to solidify it, thus forming a strong molecular chain for welding purposes, the welding strength can be close to the strength of the raw material. The quality of ultrasonic plastic welding depends on the amplitude of the transducer welding head, the applied pressure and the welding time. The welding time and the welding head pressure can be adjusted. The amplitude is determined by the transducer and the horn. The interaction of these three quantities has a suitable value. When the energy exceeds the appropriate value, the melting amount of the plastic is large, and the welding material is easily deformed; if the energy is small, the welding is not easy, and the applied pressure is not too large. This optimum pressure is the product of the side length of the welded portion and the optimum pressure per 1 mm of the edge.
500W 28Khz Ultrasonic Welding Oscillator with 2pcs Pizoelectric Ceramics
