700w Ultrasonic Oscillator , High Power Ultrasonic Emitter Vibration For Ultrasonic Spot Welding Machine
  • name
  • name
  • name
  • name

700w Ultrasonic Oscillator , High Power Ultrasonic Emitter Vibration For Ultrasonic Spot Welding Machine

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3030-4BZ-BJ
Products Name:
Ultrasonic Oscillator
Output Power:
700w
Frequency:
30khz
Ceramic Disc Diameter:
30mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
6.2-7.2nf
Highlight:

small ultrasound transducer

,

ultrasonic vibration transducer

Product Description

30Khz 700w Ultrasonic Vibratior for Ultrasonic Spot Welding Machine





Description:



The ultrasonic vibrator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The piezoelectric effect of piezoelectric ceramics realizes the mutual conversion of electrical energy and mechanical energy (acoustic vibration), and the device is amplified by the acoustic impedance matching front and rear radiation cover blocks.





Specifications:



Model QR-3030-4BZ-BJ
Frequency 30khz
Output power 700 watt
Ceramic disc Diameter 30mm
Qty of ceramic discs 4pcs
Capacitance 6.2-7.2nf
Application Ultrasonic Plastic Welding  machine





Material of Ultrasonic Oscillator:



1. The iron ultrasonic vibrator has high sound transmission efficiency, but the material strength is low, and it is easy to crack and screw hole sliding wire;

2. The steel ultrasonic vibrator has high strength, but the acoustic impedance is relatively large;

3. Titanium alloy ultrasonic vibrators have good comprehensive performance, and the disadvantages are high price and difficult processing.





30Khz 700w Ultrasonic Vibratior for Ultrasonic Spot Welding Machine

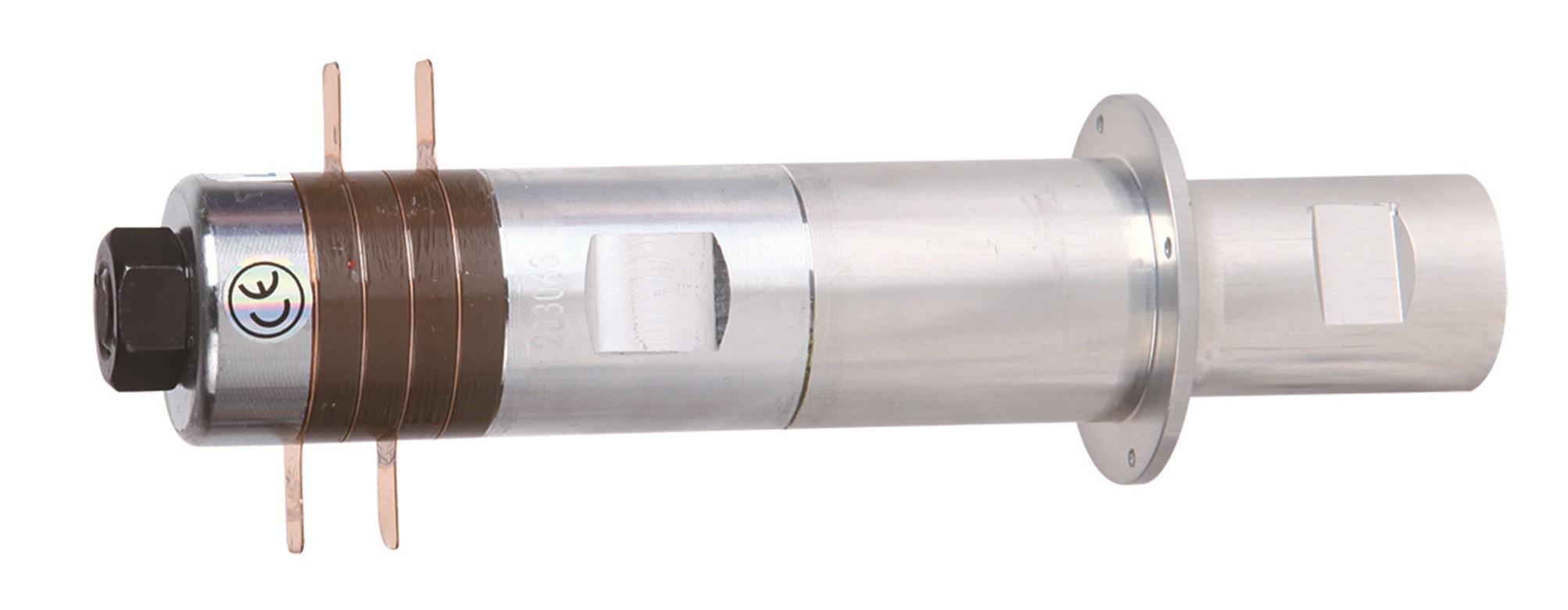

700w Ultrasonic Oscillator , High Power Ultrasonic Emitter Vibration For Ultrasonic Spot Welding Machine 0

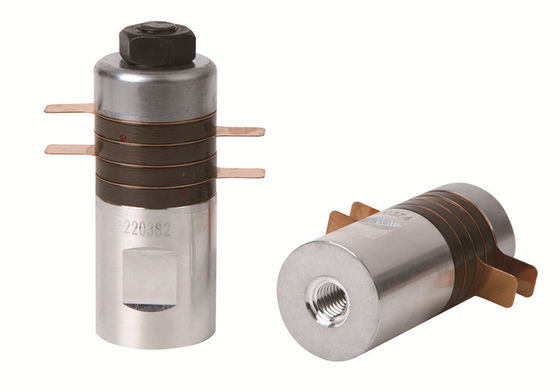

700w Ultrasonic Oscillator , High Power Ultrasonic Emitter Vibration For Ultrasonic Spot Welding Machine 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
