60 Khz High Frequency Ultrasonic Vibration Transducer With Steel Welding Horn
  • name
  • name
  • name
  • name

60 Khz High Frequency Ultrasonic Vibration Transducer With Steel Welding Horn

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-1560-2BZ-BJ
Products Name:
Ultrasonic Oscillator
Output Power:
100w
Frequency:
60khz
Ceramic Disc Diameter:
15mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
0.7-0.86nf
Highlight:

ultrasonic vibration transducer

,

high power ultrasonic emitter

Product Description





60Khz High Frequency Ultrasonic Vibration Transducer with Steel Welding Horn





Description:



The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.



The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. Ultrasonic horn is a passive device that does not generate vibration. It only changes the amplitude of the vibration input from the ultrasonic transducer and then transmits it. Impedance transformation.





Specifications:



Model QR-1560-2BZ-BJ
Frequency 60khz
Output power 100 watt
Ceramic disc Diameter 15mm
Qty of ceramic discs 2pcs
Capacitance 0.7-0.85nf
Application Ultrasonic Card Embedding Machine





Common fault :



1. The ultrasonic vibrator should be placed in a dry place to prevent the ultrasonic vibration from vibrating the mover, which will affect the normal work. If the ultrasonic vibrator is damp, put it into the oven and set it to dry at about 100 °C for 2 hours or use a hair dryer to remove the tide until the resistance is normal;

2. Ultrasonic vibrator degumming, ultrasonic vibrator degumming after the ultrasonic power output power is normal, but because the vibrator and vibration surface is not well connected, long-term work will burn the vibrator. Ultrasonic vibrator degumming generally require professional ultrasonic manufacturers to repair or replace.





60Khz High Frequency Ultrasonic Vibration Transducer with Steel Welding Horn

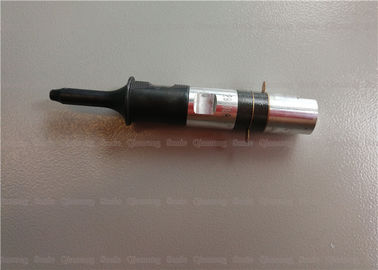

60 Khz High Frequency Ultrasonic Vibration Transducer With Steel Welding Horn 0

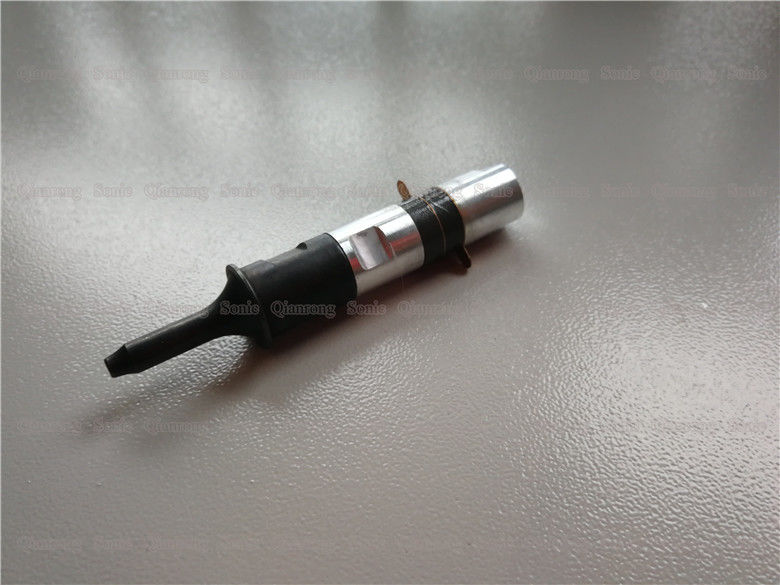

60 Khz High Frequency Ultrasonic Vibration Transducer With Steel Welding Horn 1

Tags:

ultrasonic vibration transducer,

high power ultrasonic emitter,

small ultrasound transducer
