Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-6015-4BZ-BZB |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in carton |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000pcs per month |
Products Name: | Ultrasonic Oscillator | Output Power: | 2600w |
---|---|---|---|
Frequency: | 15khz | Ceramic Disc Diameter: | 60mm |
Qty Of Ceramic Discs: | 4pcs | Capacitance: | 9-13.5nf |
Connected Screw: | M16*1 | Application: | Ultrasonic Plastic Welding Machine |
High Light: | ultrasonic vibration transducer,high power ultrasonic emitter |

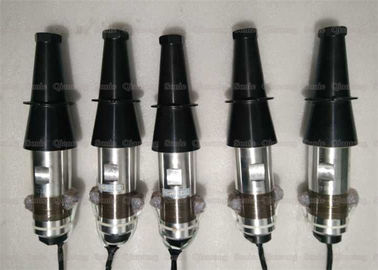

High Efficiency Piezoelectric Ultrasonic Welding Transducer With PZT4 Black Ceramic
Description:
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.
The ultrasonic vibrator is composed of an ultrasonic transducer and an ultrasonic horn. Ultrasonic transducer is a device that can convert high-frequency electric energy into mechanical energy. Ultrasonic horn is a passive device that does not generate vibration. It only changes the amplitude of the vibration input from the ultrasonic transducer and then transmits it. Impedance transformation.
Specifications:
Model | QR-6015-4BZ-BZB |
Frequency | 15 khz |
Output power | 2600 watt |
Joint bolt | M16*1 |
Ceramic disc Diameter | 60mm |
Qty of ceramic discs | 4pcs |
Capacitance | 9-13.5nf |
Application | Plastic welding machine |
Parameters:
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Capacitance |
Input power (W)
|
||
Yellow | Grey | Black | |||||
6015-4BZ-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
6015-4BZ-LR | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
6015-4BZ-RS | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
7015-4BZ-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
6015-4BD-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | / | 2600 |
6015-6BD-BZ | M16 *1 | 60 | 6 | 19000-20500 | / | 23000-25000 | 3600 |
7015-4BD-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
6015-4BZ-LS | M16 *1 | 60 | 8 | 18000-20000 | 20000-22000 | / | 4200 |
4515-4YZ-SS | M16 *1 | 45 | 8 | / | / | 25000-27000 | 2400 |
4515-4JZ-SS | M16 *1 | 45 | 8 | 19000-21000 | / | / | 2800 |
5015-4BZ-SZ | M16 *1 | 50 | 8 | 22000-24000 | / | / | 3600 |
5020-4CZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
5020-4BZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
5520-4BZ-BJ | 3/8-24UNF | 55 | 4 | 10500-11500 | / | / | 1800 |
5020-4BZ-BZ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
5020-4HZ-BJ | 3/8-24UNF | 50 | 4 | / | / | 11000-12000 | 1500 |
3820-4BZ-SS | 3/8-24UNF | 38 | 8 | 13000-14500 | / | / | 1800 |
5020-4BZ-LS | 1/2-20UNF | 50 | 8 | 23000-25000 | 26000-28000 | / | 2800 |
3028-2BZ-BT | / | 30 | 2 | 2800-3300 | 3300-3800 | / | 400 |
3828-4BZ-BJ | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
3828-4BZ-BJL | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
3828-2BZ-BJL | M8*1 | 38 | 2 | 3700-4200 | / | / | 500 |
3030-4BZ-SJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
3030-4BZ-LJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
3030-4BZ-BJ | M8 | 30 | 4 | / | 6200-7200 | / | 700 |
3535-4BD-II | M8 | 35 | 4 | 6600-7400 | / | 9200-10200 | 800 |
3035-4BZ-BJL | M8 | 30 | 4 | 5500-6200 | / | / | 700 |
3040-4BZ-BJ | M8 | 30 | 4 | 5100-5800 | / | 6500-7500 | 500 |
1560-2BZ-BJ | / | 15 | 2 | / | / | 700-850 | 100 |
1070-2BZ-BJ | / | 10 | 2 | 700-800 | / | / | 100 |
High Efficiency Piezoelectric 15Khz Ultrasonic Welding Transducer with PZT4 Black Ceramic
