Customized Inverted Horn 15Khz Ultrasonic Transducer With Steel Booster

MOQ:	1 pcs
Price:	Negotation
Standard Packaging:	Packed in carton
Delivery Period:	3 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-7015-4BD-BZ

Products Name:

Ultrasonic Oscillator

Output Power:

3600w

Frequency:

15khz

Ceramic Disc Diameter:

Qty Of Ceramic Discs:

Capacitance:

12.5-14nf

Connected Screw:

M16*1

Application:

Ultrasonic Plastic Welding Machine

Highlight:

ultrasonic vibration transducer

high power ultrasonic emitter

Product Description

Customized Inverted Horn 15Khz Ultrasonic Transducer with Steel Booster

Description:

The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.

Specifications:

Model	QR-7015-4BD-BZ
Frequency	15 khz
Output power	3600 watt
Joint bolt	M16*1
Ceramic disc Diameter	70mm
Qty of ceramic discs	4pcs
Capacitance	12.5-14nf
Application	Plastic welding machine

Parameters:

Item No.	Connect screw (Size)	Ceramic diameter (mm)	Quantity of Ceramic (pc)	Resonance frequency (khz)	Capacitance			Input power (W)
Item No.	Connect screw (Size)	Ceramic diameter (mm)	Quantity of Ceramic (pc)	Resonance frequency (khz)	Yellow	Grey	Black	Input power (W)
1-6015-4BZ-BZ	M16 *1	60	4	15	9000-10000	10000-11000	12500-13500	2600
2-6015-4BZ-LR	M16 *1	60	4	15	9000-10000	10000-11000	12500-13500	2600
3-6015-4BZ-RS	M16 *1	60	4	15	9000-10000	10000-11000	12500-13500	2600
4-7015-4BZ-BZ	M16 *1	70	4	15	12500-14000	/	/	3600
5-6015-4BD-BZ	M16 *1	60	4	15	9000-10000	10000-11000	/	2600
6-6015-6BD-BZ	M16 *1	60	6	15	19000-20500	/	23000-25000	3600
7-7015-4BD-BZ	M16 *1	70	4	15	12500-14000	/	/	3600
8-6015-4BZ-LS	M16 *1	60	8	15	18000-20000	20000-22000	/	4200
9-4515-4YZ-SS	M16 *1	45	8	15	/	/	25000-27000	2400
10-4515-4JZ-SS	M16 *1	45	8	15	19000-21000	/	/	2800
11-5015-4BZ-SZ	M16 *1	50	8	15	22000-24000	/	/	3600
12-5020-4CZ-BJ	3/8-24UNF	50	4	20	11000-12000	13000-14000	14500-16000	1500
13-5020-4BZ-BJ	3/8-24UNF	50	4	20	11000-12000	13000-14000	14500-16000	1500
14-5520-4BZ-BJ	3/8-24UNF	55	4	20	10500-11500	/	/	1800
15-5020-4BZ-BZ	3/8-24UNF	50	4	20	11000-12000	13000-14000	14500-16000	1500
16-5020-4HZ-BJ	3/8-24UNF	50	4	20	/	/	11000-12000	1500
17-3820-4BZ-SS	3/8-24UNF	38	8	20	13000-14500	/	/	1800
18-5020-4BZ-LS	1/2-20UNF	50	8	20	23000-25000	26000-28000	/	2800
19-3028-2BZ-BT	/	30	2	28	2800-3300	3300-3800	/	400
20-3828-4BZ-BJ	M8*1	38	4	28	7200-8200	/	10000-12000	800
21-3828-4BZ-BJL	M8*1	38	4	28	7200-8200	/	10000-12000	800
22-3828-2BZ-BJL	M8*1	38	2	28	3700-4200	/	/	500
23-3030-4BZ-SJL	M10	30	4	30	/	6200-7200	/	700
24-3030-4BZ-LJL	M10	30	4	30	/	6200-7200	/	700
25-3030-4BZ-BJ	M8	30	4	30	/	6200-7200	/	700
26-3535-4BD-II	M8	35	4	35	6600-7400	/	9200-10200	800
27-3035-4BZ-BJL	M8	30	4	35	5500-6200	/	/	700
28-3040-4BZ-BJ	M8	30	4	40	5100-5800	/	6500-7500	500
29-1560-2BZ-BJ	/	15	2	60	/	/	700-850	100
30-1070-2BZ-BJ	/	10	2	70	700-800	/	/	100

Customized Inverted Horn 15Khz Ultrasonic Transducer with Steel Booster

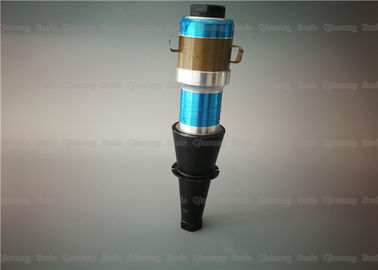

Customized Inverted Horn 15Khz Ultrasonic Transducer With Steel Booster 0

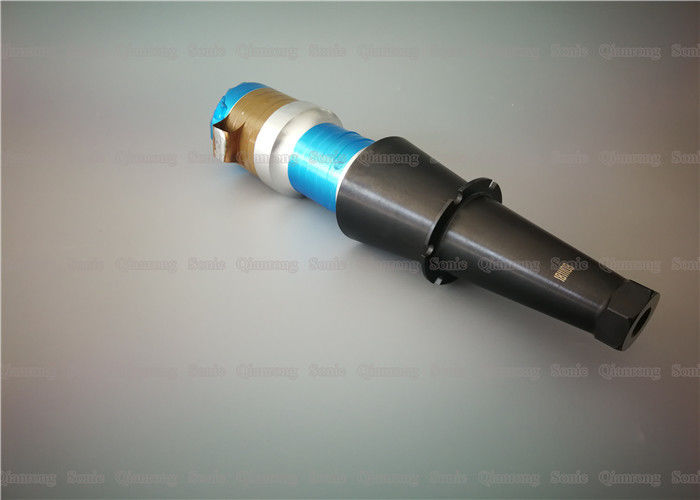

Customized Inverted Horn 15Khz Ultrasonic Transducer With Steel Booster 1
