Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-7015-4BZ-BZ |
Minimum Order Quantity: | 1 pcs |
Price: | Negotation |
Packaging Details: | Packed in carton |
Delivery Time: | 3 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000pcs per month |
Products Name: | Ultrasonic Welding Oscillator | Output Power: | 3600w |
---|---|---|---|
Frequency: | 15khz | Ceramic Disc Diameter: | 70mm |
Qty Of Ceramic Discs: | 4pcs | Capacitance: | 12.5-14nf |
Net Weight: | 6.5kgs | Application: | Ultrasonic Plastic Welder |
Highlight: | Piezoelectric Welding Ultrasonic Oscillator,15Khz Ultrasonic Oscillator,Plastic Welder Ultrasonic Oscillator |

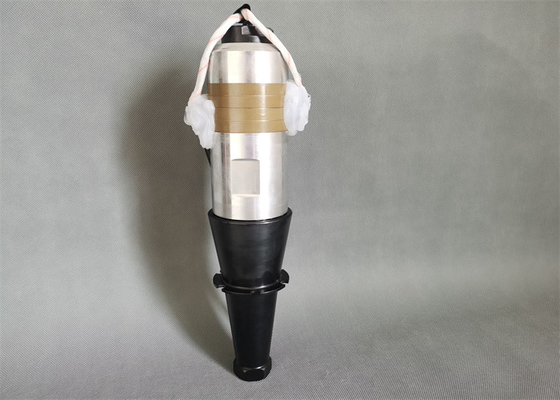

15Khz Ultrasound Pizoelectric Welding Oscillator for Plastic Welder with Booster
Description:
Ultrasonic vibrator, also known as ultrasonic vibrating head, ultrasonic Oscillator head, is a kind of ultrasonic transducer, which is the core component of ultrasonic cleaning machine. The whole of the ultrasonic transducer connected to the horn is called vibrator.
Specifications:
Model | QR-7015-4BZ-BZ |
Frequency | 15 khz |
Output power | 3600 watt |
Joint bolt | M16*1 |
Ceramic disc Diameter | 70mm |
Qty of ceramic discs | 4pcs |
Capacitance | 12.5-14nf |
Application | Plastic welding machine |
Parameters:
Item No.
|
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Capacitance |
Input power (W)
|
||
Yellow | Grey | Black | |||||
6015-4BZ-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
6015-4BZ-LR | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
6015-4BZ-RS | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | 12500-13500 | 2600 |
7015-4BZ-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
6015-4BD-BZ | M16 *1 | 60 | 4 | 9000-10000 | 10000-11000 | / | 2600 |
6015-6BD-BZ | M16 *1 | 60 | 6 | 19000-20500 | / | 23000-25000 | 3600 |
7015-4BD-BZ | M16 *1 | 70 | 4 | 12500-14000 | / | / | 3600 |
6015-4BZ-LS | M16 *1 | 60 | 8 | 18000-20000 | 20000-22000 | / | 4200 |
4515-4YZ-SS | M16 *1 | 45 | 8 | / | / | 25000-27000 | 2400 |
4515-4JZ-SS | M16 *1 | 45 | 8 | 19000-21000 | / | / | 2800 |
5015-4BZ-SZ | M16 *1 | 50 | 8 | 22000-24000 | / | / | 3600 |
5020-4CZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
5020-4BZ-BJ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
5520-4BZ-BJ | 3/8-24UNF | 55 | 4 | 10500-11500 | / | / | 1800 |
5020-4BZ-BZ | 3/8-24UNF | 50 | 4 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
5020-4HZ-BJ | 3/8-24UNF | 50 | 4 | / | / | 11000-12000 | 1500 |
3820-4BZ-SS | 3/8-24UNF | 38 | 8 | 13000-14500 | / | / | 1800 |
5020-4BZ-LS | 1/2-20UNF | 50 | 8 | 23000-25000 | 26000-28000 | / | 2800 |
3028-2BZ-BT | / | 30 | 2 | 2800-3300 | 3300-3800 | / | 400 |
3828-4BZ-BJ | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
3828-4BZ-BJL | M8*1 | 38 | 4 | 7200-8200 | / | 10000-12000 | 800 |
3828-2BZ-BJL | M8*1 | 38 | 2 | 3700-4200 | / | / | 500 |
3030-4BZ-SJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
3030-4BZ-LJL | M10 | 30 | 4 | / | 6200-7200 | / | 700 |
3030-4BZ-BJ | M8 | 30 | 4 | / | 6200-7200 | / | 700 |
3535-4BD-II | M8 | 35 | 4 | 6600-7400 | / | 9200-10200 | 800 |
3035-4BZ-BJL | M8 | 30 | 4 | 5500-6200 | / | / | 700 |
3040-4BZ-BJ | M8 | 30 | 4 | 5100-5800 | / | 6500-7500 | 500 |
1560-2BZ-BJ | / | 15 | 2 | / | / | 700-850 | 100 |
1070-2BZ-BJ | / | 10 | 2 | 700-800 | / | / | 100 |
Ultrasonic vibrator features:
1. High performance: high mechanical Q value, high conversion efficiency and excellent quality
2. Ultrasonic vibrator transducer has large amplitude and superior performance
3. Ultrasonic vibrator transducer heat resistance: Piezoelectric ceramic material has good heat resistance, can expand the operating temperature range, and has high Q value, small resonance impedance, and low heat generation.
4. Ultrasonic vibrator transducer product appearance is neat, no rust, no obvious depressions and scratches

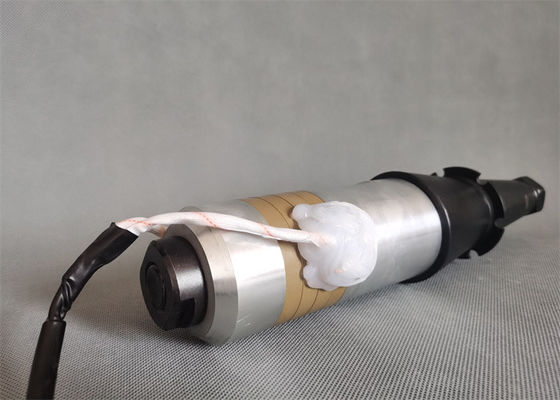

15Khz Ultrasound Pizoelectric Welding Oscillator for Plastic Welder with Booster
