High Frequency 120K Ultrasonic Atomizing Nozzle Spraying

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-12001-L
Production Name:
Ultrasonic Widemist Spray Nozzle
Frequency:
120Khz
Max Power:
1-15w
Automized Particle Size Range:
15-40μm
Spray Flow:
0.5-20ml/min
Liquid Viscosity:
<30cps
Particle Size:
<10μm
Application:
Ultra Large Area Spraying Glass Coating
Highlight:

120K Ultrasonic Atomizing Nozzle

,

High Frequency Ultrasonic Atomizing Nozzle

,

Spraying Ultrasonic Atomizing Nozzle

Product Description

High Frequency 120K Ultrasonic Atomizing Nozzle Spraying





Description:



The 120K ultrasonic atomizing nozzle disperses water or liquid under the high-frequency vibration of ultrasonic waves, forming tiny particles ranging from 10 μ m to 35 μ m. Unlike the traditional spray head, which relies on pressure and high-speed movement to crush the liquid into small particles, the ultrasonic spray head uses higher frequency and lower ultrasonic vibration energy to atomize the liquid. The liquid can be delivered to the spray head through its own gravity or low-pressure liquid pump to achieve continuous or intermittent atomization. During the ultrasonic spraying process, the droplet size and distribution can be precisely controlled, allowing very small droplets and particles to evaporate quickly, resulting in particles with high specific surface area and forming thin film coatings. The size of atomized particles in ultrasonic nozzles is basically a function of the operating frequency, and the higher the frequency, the smaller the atomized particles.





Parameters:



Type FSW-12001-L
Name Ultrasonic Wide Type Spray Coating Nozzle
Frequency 120Khz (50/60/120Khz for selection)
Atomized particle size range (μm) 40-120
Spray width(mm) 30-60
Spray flow(ml/min) 0.5-20
Spray height(mm) 50-150
Permissible liquid viscosity(cps) <30
Allow particle size(μm) <10
Diversion pressure (Mpa) <0.05
Application Suitable for large-area spraying, such as proton exchange membranes, etc





Advantages :



1. Non clogging ultrasonic spraying technology;
2. Highly controllable and repeatable spray;
3. The coating is durable and will not peel or detach;
4. Be able to conduct spray at the flow rate of μ L/h;
5. Low speed spray can be attached to the substrate without rebound or overspray;
6. Droplets as small as tens of micrometers (when using organic solvents) have a very uniform distribution;

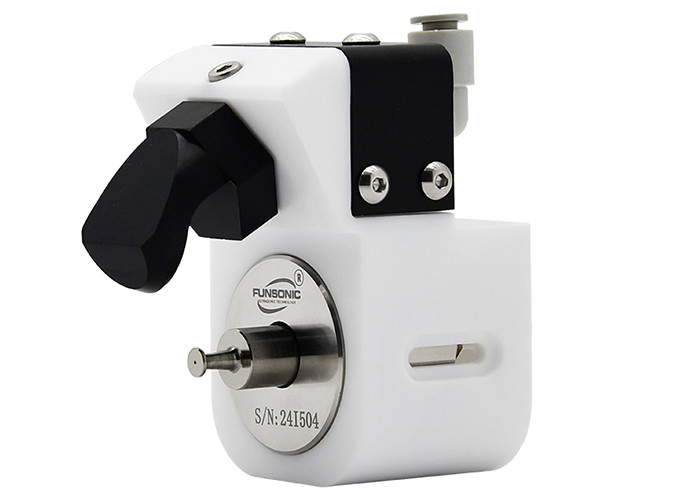

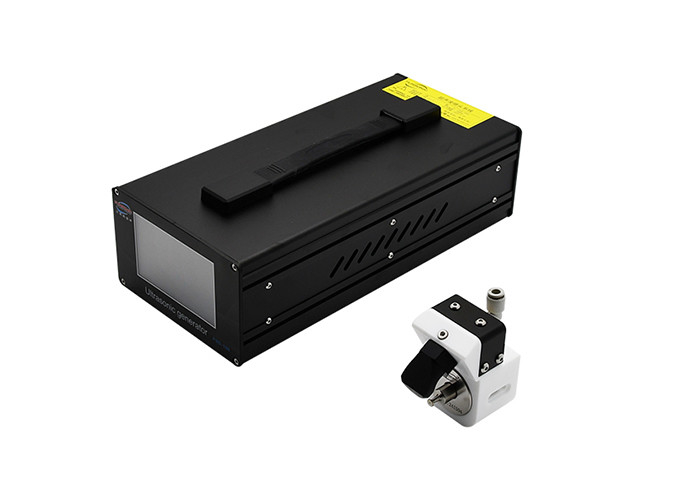

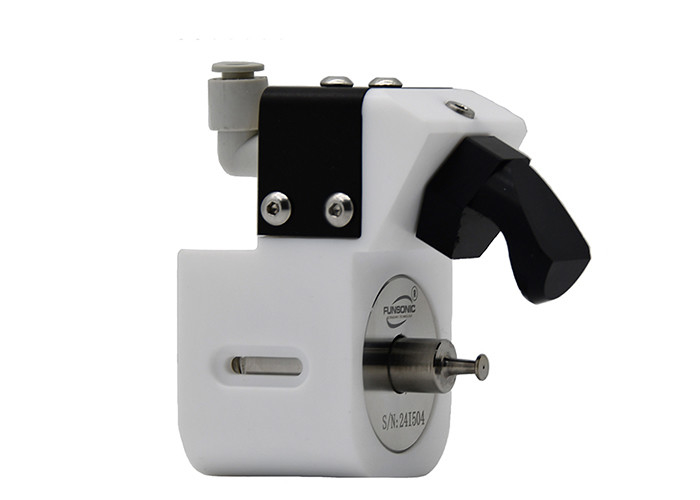

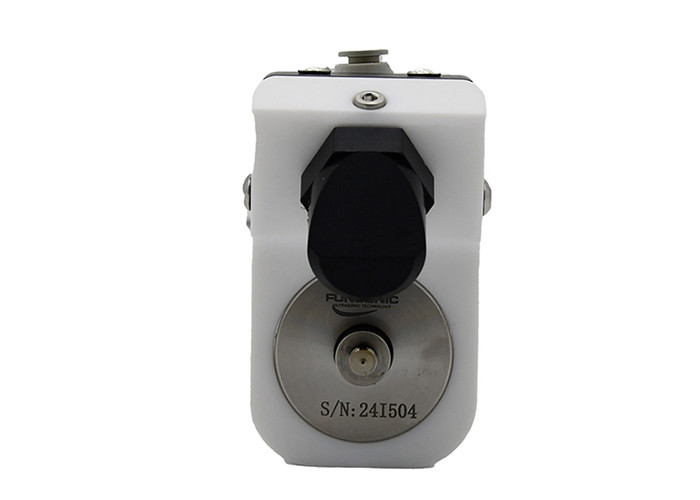

High Frequency 120K Ultrasonic Atomizing Nozzle Spraying



High Frequency 120K Ultrasonic Atomizing Nozzle Spraying 0High Frequency 120K Ultrasonic Atomizing Nozzle Spraying 1
